ASTM YO-yo Ball Tester is used for testing the elongation performance of yo - yo ball elastic rope toy.
model :
AT09Brand:
AVENOorigin:
ChinaLead Time:
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE, ISO9001, ISO17025standard:
ASTM F963 section4.37, 8.23AT09 ASTM YO-yo Ball Tester
Application of ASTM YO-yo Ball Tester

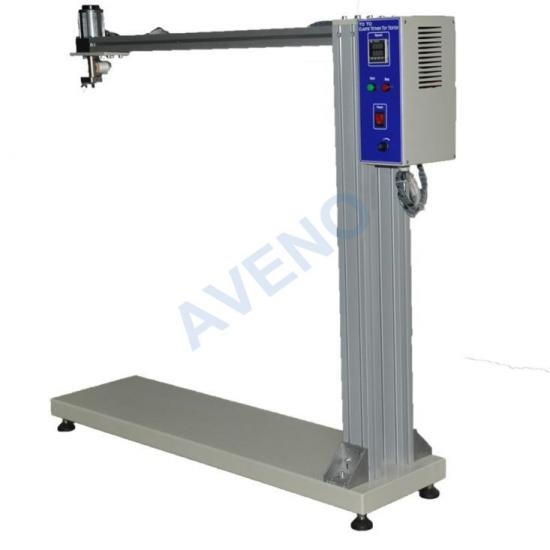

ASTM YO-yo Ball Tester is used for testing the elongation performance of yo - yo ball elastic rope toy.
Testing Principle of ASTM YO-yo Ball Tester
Install the elastic rope toy on the fixture of this instrument, then rotate around the axis of rotation at a certain speed, measuring the length of a yo-yo ball under the action of a centrifugal force.
Standards of ASTM YO-yo Ball Tester
ASTM F963 section4.37, 8.23
Key Specification of ASTM YO-yo Ball Tester
Model |
AT09 ASTM YO-yo Ball Tester |
Test quantity |
1pc each time |
Test speed |
80r/min, stepless speed regulation |
Throat depth |
100cm |
Rotate mode |
360 °connection rotation |
Distance from rotate center to fixture edge |
3cm |
Dimension |
130x30x120cm |
Weight |
50kg |
Power supply |
1∮ AC 220V 3A |
