Footwear Water Penetration & Flexing Tester is used to determine the resistance to water penetration of the whole shoe during flexing.
model :
AF12Brand:
AVENOorigin:
ChinaLead Time:
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE, ISO9001, ISO17025standard:

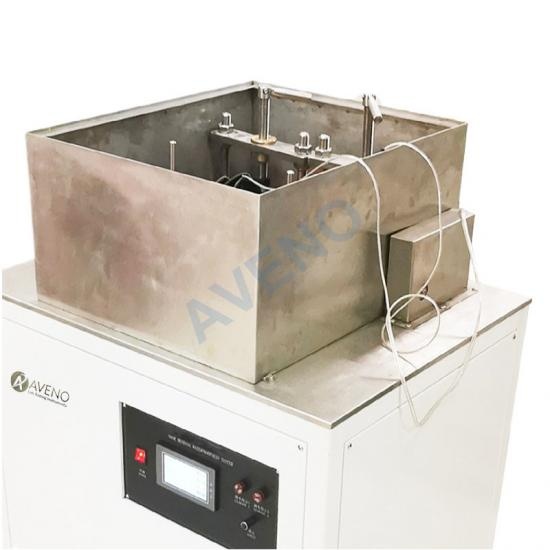

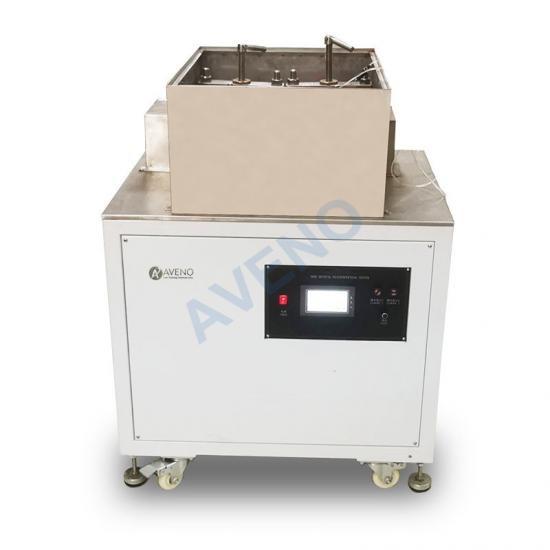

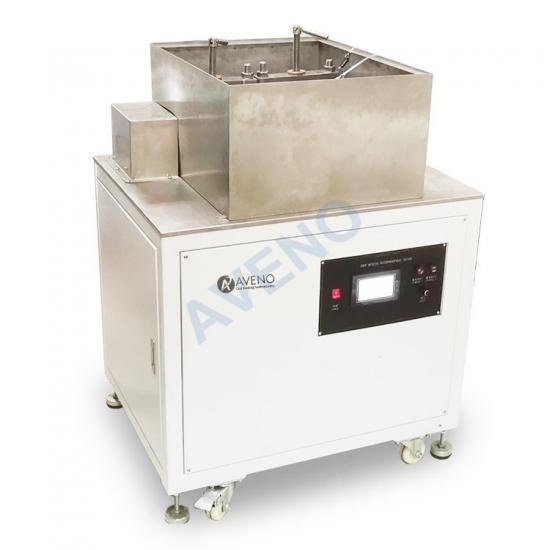

SATRA TM77, ISO20344AF12 Footwear Water Penetration & Flexing Tester
Application Of Footwear Water Penetration & Flexing Tester
Footwear Water Penetration & Flexing Tester is used to determine the resistance to water penetration of the whole shoe during flexing.

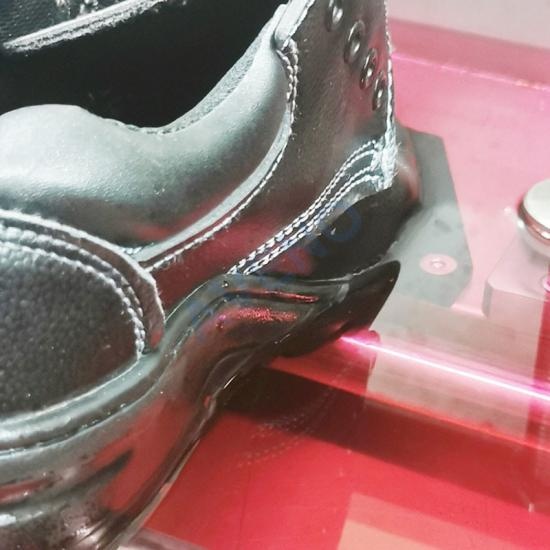

Install sample shoes on the testing machine and put a certain depth of water in the tank to touch the shoes, then the posterior part shoe bending at certain angle and frequency, simulate people walk in the water with the shoe, determine the water permeability of the shoe.
Standards Of Footwear Water Penetration & Flexing Tester
SATRA TM77, ISO20344
Key Specification Of Footwear Water Penetration & Flexing Tester
Model |
AF12 Footwear Water Penetration & Flexing Tester |
Test position |
2 |
Test range |
Child and Adult shoes |
Bending angle |
0°~50°, adjustable |
Bending speed |
0~60/80r.p.m, adjustable |
Counter |
LCD, 0-9999 |
Power supply |
AC220V, 50/60HZ |
Dimension |
80×60×150cm |
Weight |
200kg |
