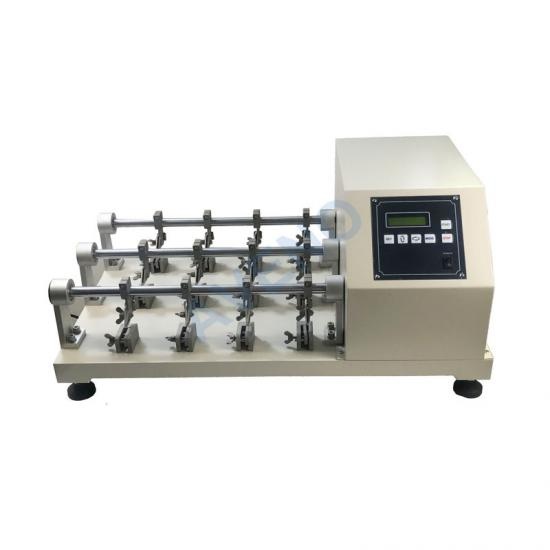

Upper and Vamp Material Flexing Tester AF16
Upper and Vamp Material Flexing Tester is designed for determining the flexing resistance or physical damage of all shoe vamps, and soft materials.
+8615280858852

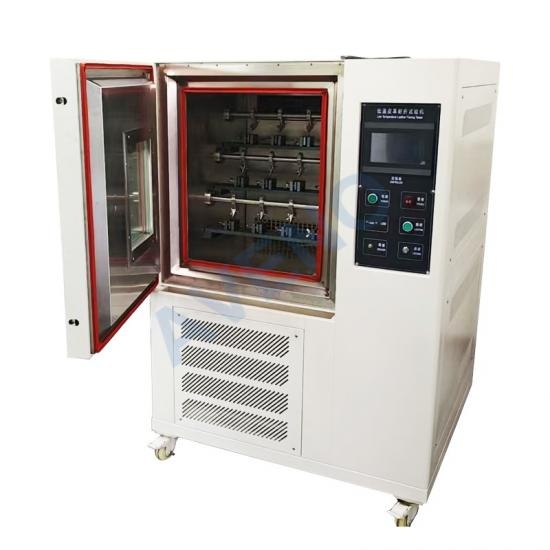

Low Temperature Bally Leather Flexing Resistance Tester is designed for determining the flexing resistance of materials under low temperature situation, such as leather, fabric and other materials. By checking the damage degree flexing a certain time, to determine its flexibility.
model :
AF17BBrand:
AVENOorigin:
ChinaLead Time:
3-10daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:
SATRA TM55, ISO5402-1, ISO 17694, EN 13512, EN344-1, EN ISO 20344, GB/T 20991, ASTM 6182, AS/NZS 2210.2, GE-24, JIS-K 6545, IULTCS/IUP 20-1AF17B-Low Temperature Bally Leather Flexing Tester
Low Temperature Bally Leather Flexing Resistance Tester is designed for determining the flexing resistance of materials under low temperature situation, such as leather, fabric and other materials. By checking the damage degree flexing a certain time, to determine its flexibility.
Feature Of Low Temperature Bally Leather Flexing Tester
Standards Of Low Temperature Bally Leather Flexing Tester
SATRA TM55, ISO5402-1, ISO 17694, EN 13512, EN344-1, EN ISO 20344, GB/T 20991, ASTM 6182, AS/NZS 2210.2, GE-24, JIS-K 6545, IULTCS/IUP 20-1
Key Specification Of Low Temperature Bally Leather Flexing Tester
Model
AF17B-Low Temperature Bally Leather
Flexing Tester
Test
position
12position
24position
Control
mode
Programmable microprocessor control
Temperature
range
-30~100℃
Sample
size
70×45mm
Flexing
angle
22.5°±0.5°
Flexing
speed
100±5 cycles/flexes per mintue
Counter
LCD,0~999,999
Power
supply
AC220V, 50/60HZ
Dimension
100*100*150cm
120*120*150cm
Weight
190kg
220kg
