Halogen Moisture Balance using the principle of pyrolysis weight of halogen lamp, it is a fast measuring instrument for moisture content.
model :
AH14Brand:
AVENOorigin:
ChinaLead Time:
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:

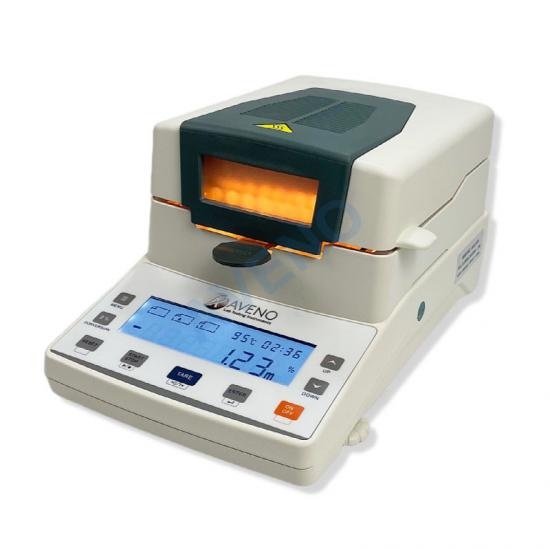

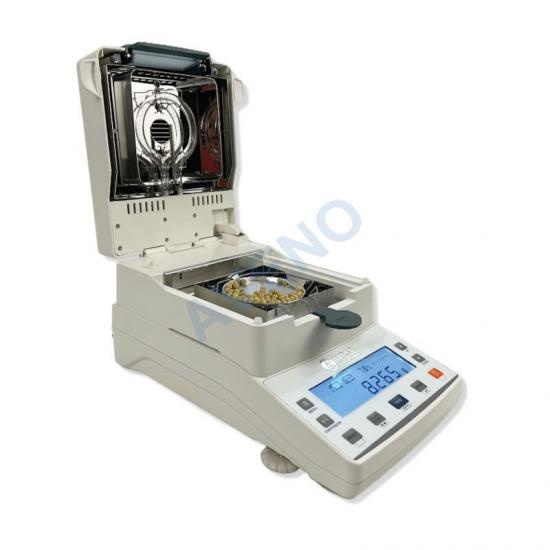

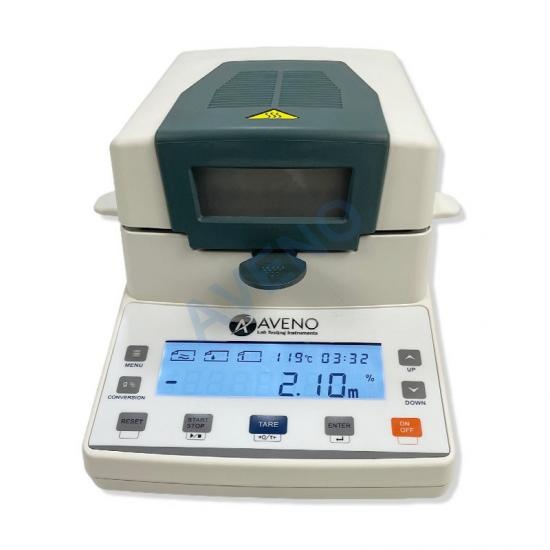

CE ISO9001 ISO17025AH14-Halogen Moisture Balance
Application Of Halogen Moisture Balance
Halogen Moisture Balance using the principle of pyrolysis weight of halogen lamp, it is a fast measuring instrument for moisture content.
Test Principle Of Halogen Moisture Balance

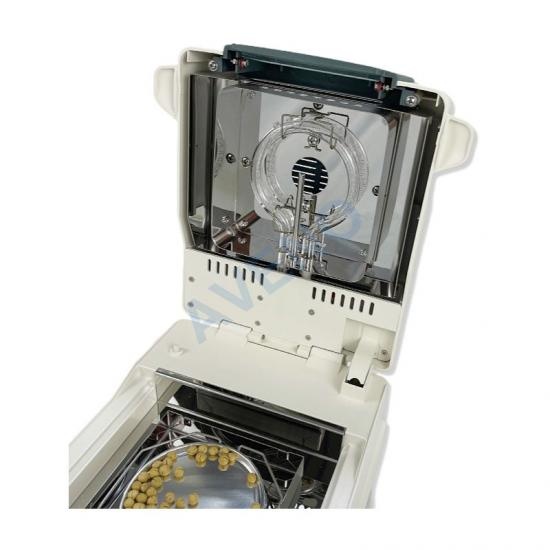

When the weight of the sample is measured by the water analyzer, the halogen lamp heating unit and the water evaporation channel are fast drying samples. During the drying process, the moisture meter continues to measure and instantly displays the lost moisture content% of the sample. After the drying procedure is completed, the final determination of the moisture content is locked.
Feature Of Halogen Moisture Balance
Solid and durable, stainless steel weighing pan is easy to clean.

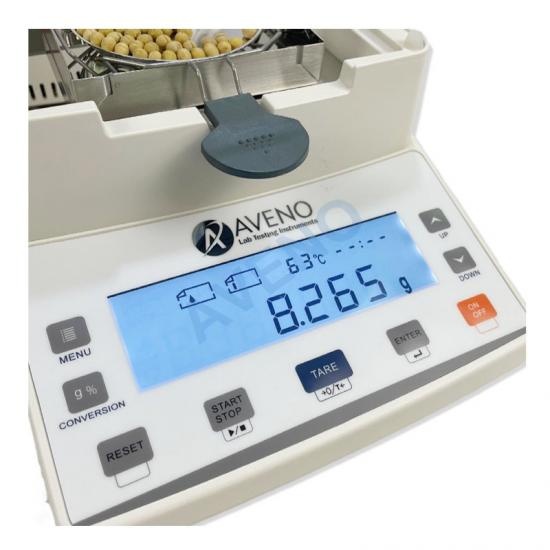

Touch liquid crystal display, easy to operate.
Can store different test method of samples in advance, more efficient.
Key Specification Of Halogen Moisture Balance
Model |
AH14-50 |
AH14-110A |
AH14-110B |
AH14-110C |
Capacity |
50g |
110g |
110g |
110g |
Weight precision |
0.005g |
0.005g |
0.002g |
0.001g |
Moisture range |
0.0%-100% |
|||
Moisture precision |
0.02% |
0.01% |
||
Tem. accuracy |
±0.1℃ |
|||
Heat temperature range |
60-200℃ |
|||
Heat time range |
0-99min |
|||
End control |
Timing, automatic, manual |
|||
Sample pan size |
Φ 90mm |
|||
Heating source |
Halogen lamp |
|||
Dimension |
36*21*17cm |
|||
Weight |
5kg |
