Digital Tearing Tester is used for testing the tearing strength of all kinds of fabrics( Elmendorf Method), and the tearing resistance of thick paper, plastic cloth, electrical tape, etc.
model :
AG11-3Brand:
AVENOorigin:
ChinaLead Time:
3-7daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:
Textile:GB/T 3917.1, ASTM D1424, DIN 53862, EN ISO 13937-1, ISO 4674-2, ISO 9290, M&S P29, NEXT 17, NF G07-149 Paper: GB/T 455, APPITA P 400, ASTM D 689, BS 4468, CSA D9, DIN 53128, EN 21974, ISO 1974, JIS P 8116, PAPTAC D9, SCAN P11, TAPPI T414, UNAG11-3-Digital Tearing Tester

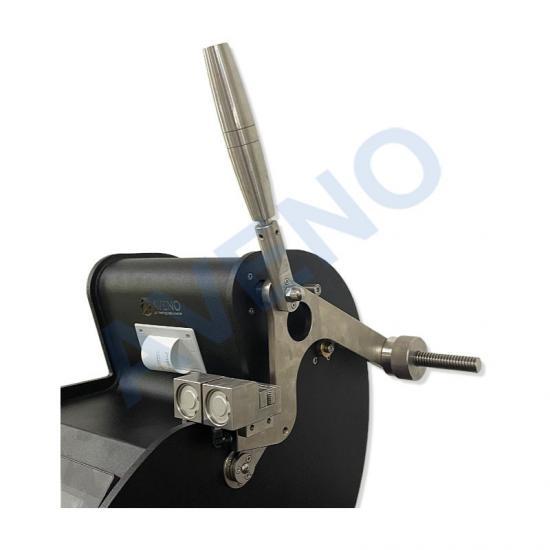

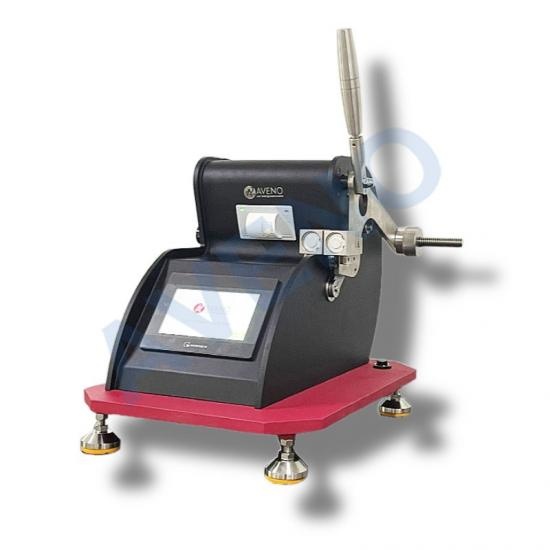

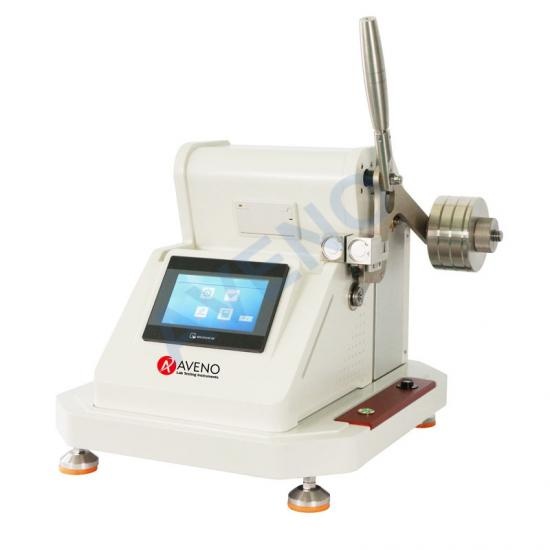

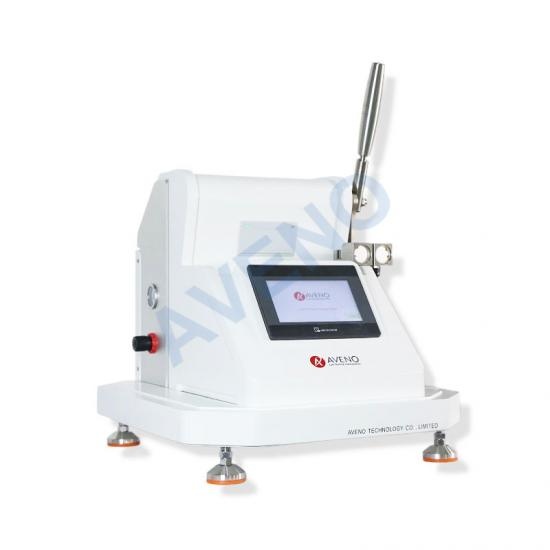

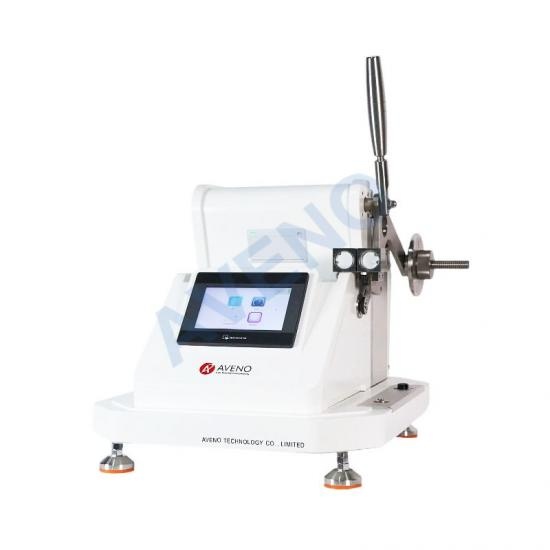

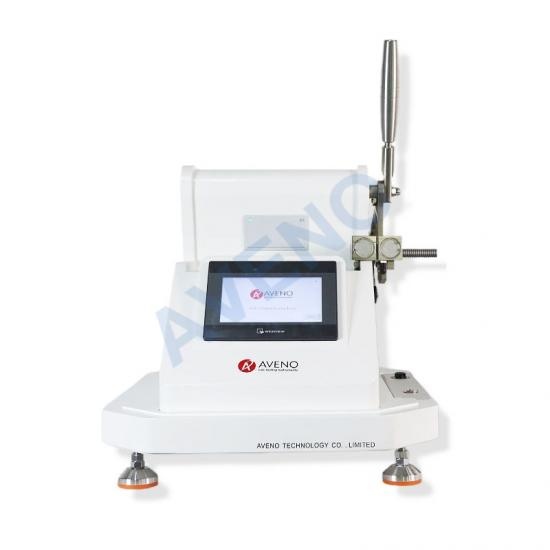

Application Of Digital Tearing Tester
Digital Tearing Tester is used for testing the tearing strength of all kinds of fabrics( Elmendorf Method), and the tearing resistance of thick paper, plastic cloth, electrical tape, etc.
Standards Of Digital Tearing Tester
Key Specification Of Digital Tearing Tester
Model |
AG11-3 Digital Elmendorf Tearing Tester |
Range of Tearing Force |
A: 16N B: 32N C: 64N D: 128N |
Accuracy |
≤±0.2% F·S |
Cut Length |
20±0.1mm |
Rip Length |
43mm |

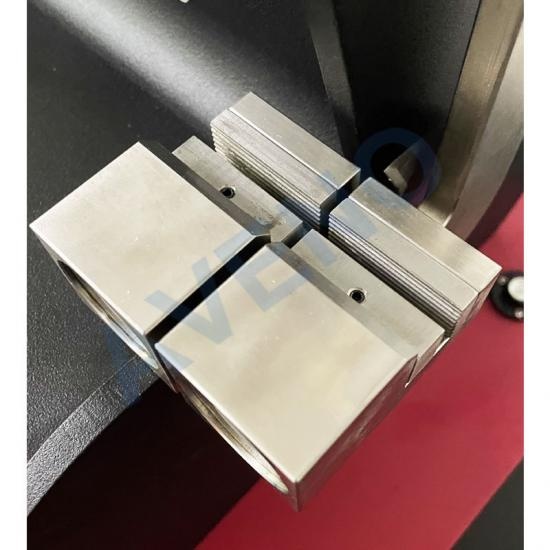

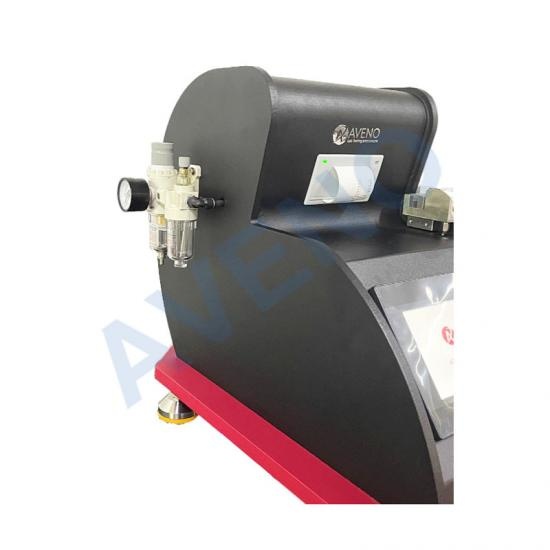

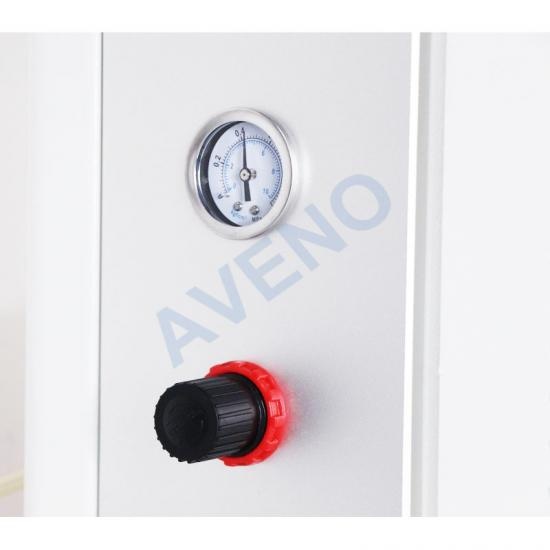

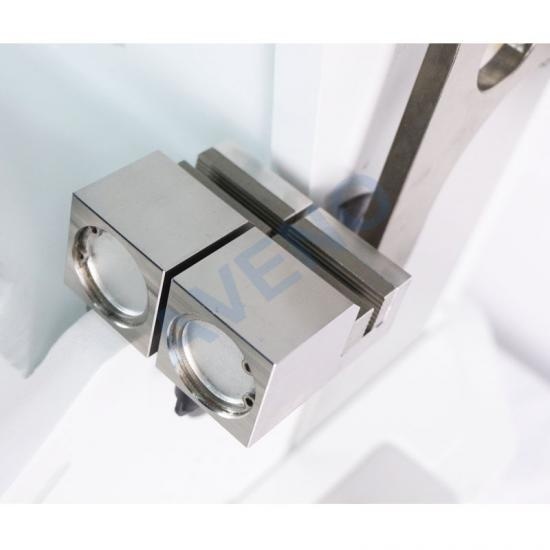

Sample clamping method |
Pneumatic |
Sample size |
100 x 63mm (LxW) |
Power supply |
AC 220V, 50/60HZ |
Dimensions (LxWxH) |
400 x 210 x 395mm |
Weight |
30kg |

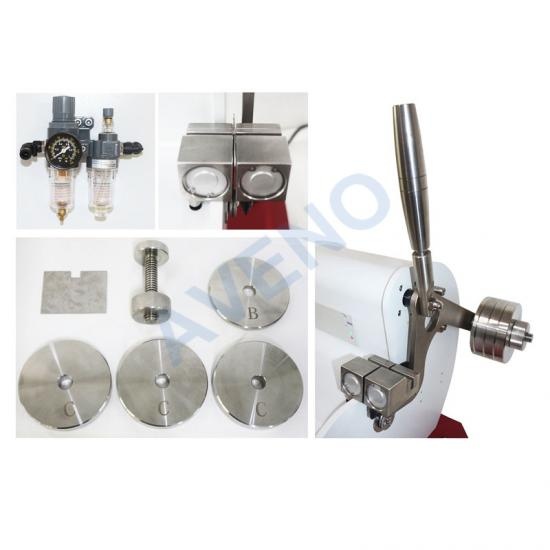

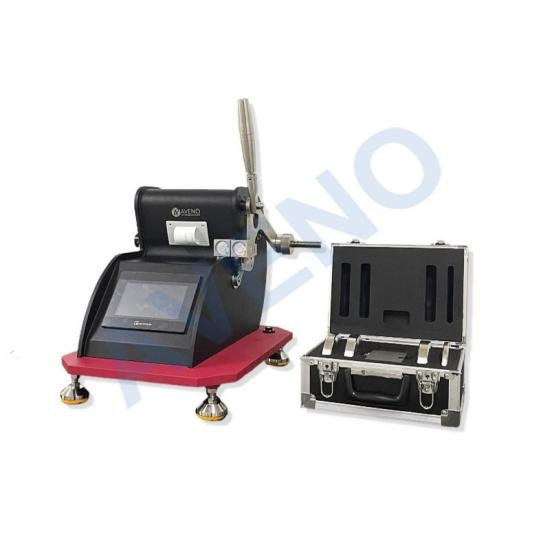

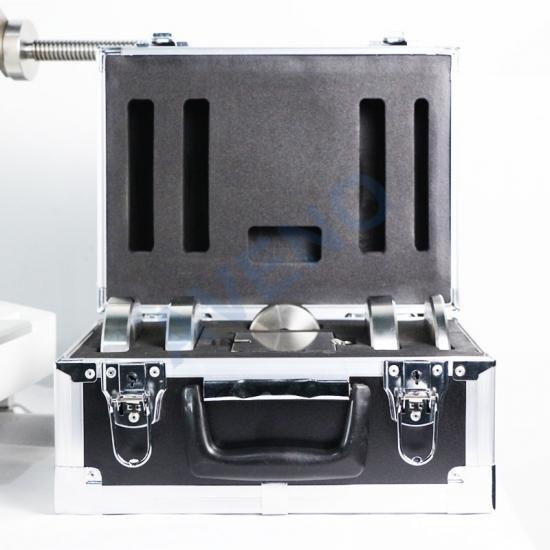

Accessories Of Digital Tearing Tester
Standard Accessories |

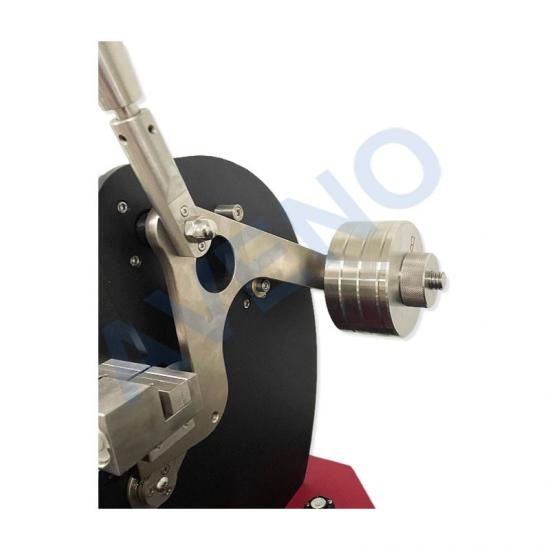

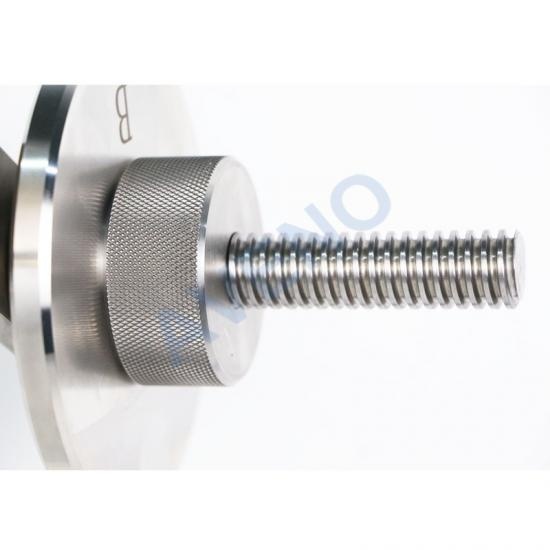

Load |
4sets (A, B, C and D) |
Sample template |
1pc |
|
English operation software |
1pc |
|
Cable connect to PC |
1set |
|
Option Accessories |
Desk Top Computer (HP) |
|
Grips and load cell |
|
Related products:

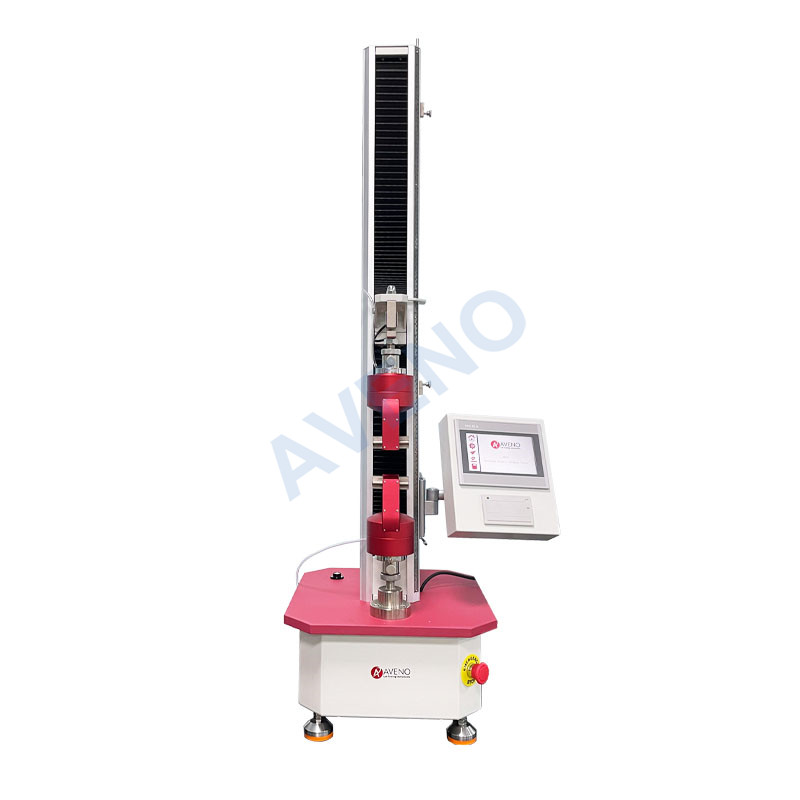

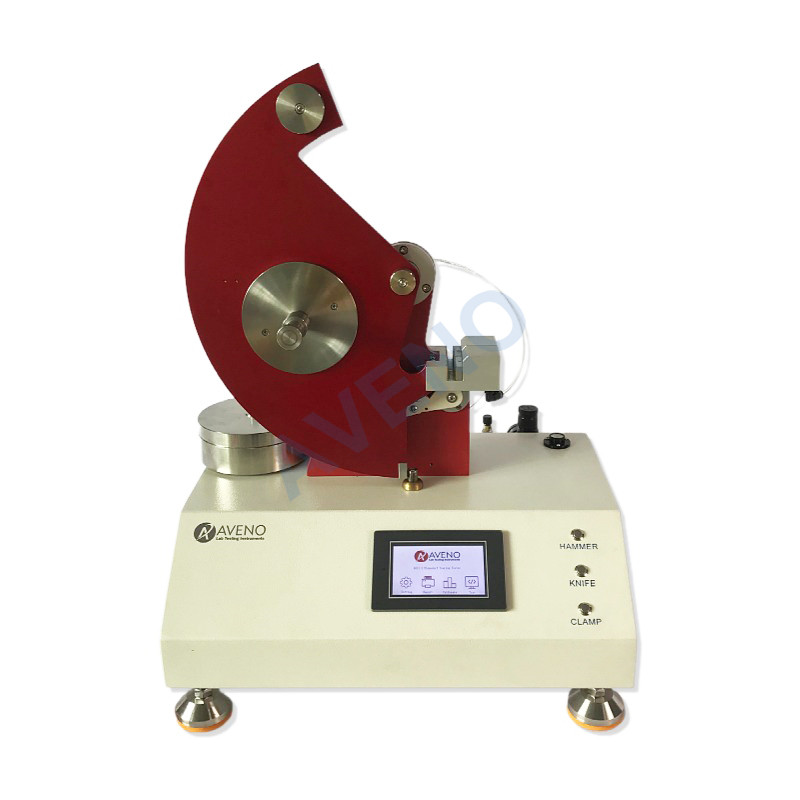

1. Elmendorf Tearing Tester 2. Electronic Tearing Tester 3. Universal Tensile Strength Tester
