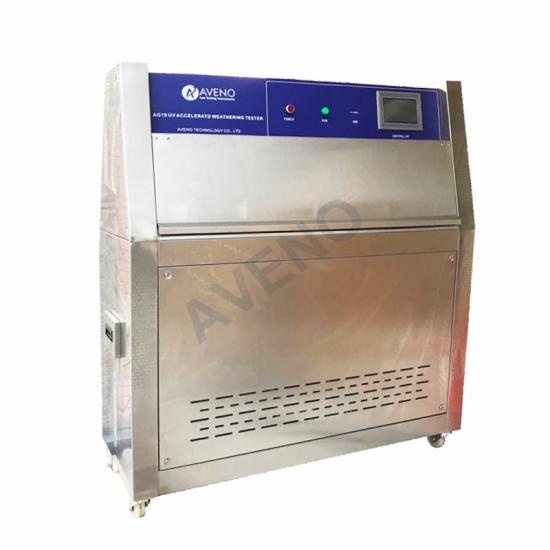

AG19-UV Accelerated Weathering Tester
Application Of UV Accelerated Weathering Tester
UV Accelerated Weathering Tester can simulates the damage caused by ultraviolet light, Rain Water and dew, test sample through exposing the sample to the alternating cycle of light and water under controlled high temperature. It uses ultraviolet light tubes to simulate the radiation of sunlight, use condense water and water spray to simulated dew and Rain Water.
Widely used to selection of new materials, improvement of existing materials, and evaluation of changes in material formulations.
Key Specification Of UV Accelerated Weathering Tester
Model |
AG19 UV Accelerated Weathering Tester |
Control model |

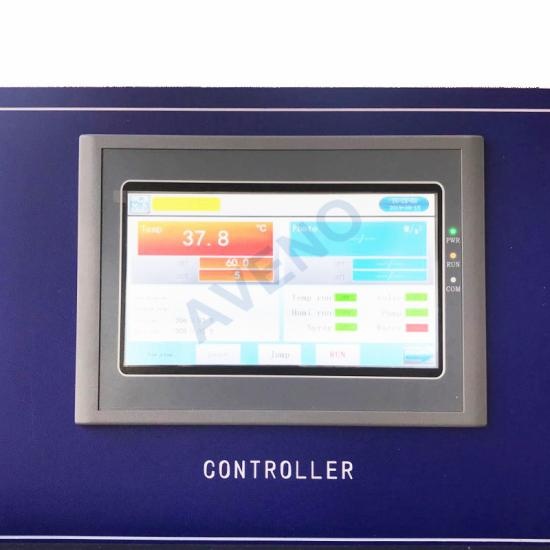

Touch screen control |
Test chamber dimension |
60×50×750cm |
Temperature range |
RT+10~70°C |
Humidity range |
≥90%RH |
Temperature uniformity |
±1°C |
Temperature fluctuation |
±0.5°C |
Temperature control |
PID SSR control |
Distance from sample to lamp |
50±2mm(adjustable) |
Centre distance between the lamp |
70mm |
Irradiance |
1.0W/cm2 (adjustable) |
Effective irradiation areas |
45×117×50cm |
Testing time |
0~999H, adjustable |
Lamp |
40W/pc, 8pc(UVA/UVB, life time above 1600h) |
Ultraviolet wavelength |
UVA340: 315-400nm UVB313: 280-315nm |
Standard specimen size |
75×285㎜ |
Blackboard temperature |
40℃~65℃ |
Power Supply |
AC280V, 50/60HZ |
Dimension |
58×128×135cm |
Weight |
150KG |
Accessories Of UV Accelerated Weathering Tester
Standard Accessories |
Sample fixture |
1set |
UVA Lamp |
1set |
|
English manual operate video |
1set |
|
Operate video |
1pc |
|
Quality certification |
1pc |
