Universal Tensile Strength Tester (Single Column) AG02

Universal Tensile Strength Tester (Single Column) AG02

Universal Tensile Strength Tester widely used in test tensile, tearing, jacking, peeling, constant elongation, constant load, elasticity, seam slip, modulus and etc..

  • model :

    AG02
  • Brand:

    AVENO
  • origin:

    China
  • Lead Time:

    10-20days
  • port:

    Xiamen port
  • Payment:

    T/T, L/C
  • certificate:

    CE, ISO9001, ISO17025
  • standard:

    ISO, EN, ASTM, AATCC, M&S, JIS, and etc.
  • Product Detail

AG02 Universal Tensile Strength Tester (Single Column)


Application of Tensile Strength Tester

Universal Tensile Strength Tester is widely used in various types of fabric, clothing, textile, composite material, Non woven fabric, geotextile, and other types of materials, Widely used in test tensile, tearing, jacking, peeling, constant elongation, constant load, elasticity, seam slip, modulus and other mechanical properties.


Feature of Tensile Strength Tester

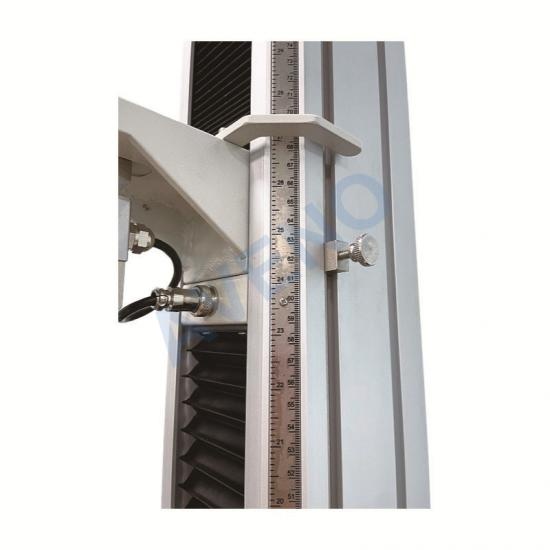

  • The instrument column adopts aluminum alloy profile column, and the surface of the instrument is treated with high temperature curing spray, which is scratch resistant and not easy to fade.
  • Imported AC servo drive, ball screw, can be set for a wide range of speed, suitable for the mechanical properties of various materials.

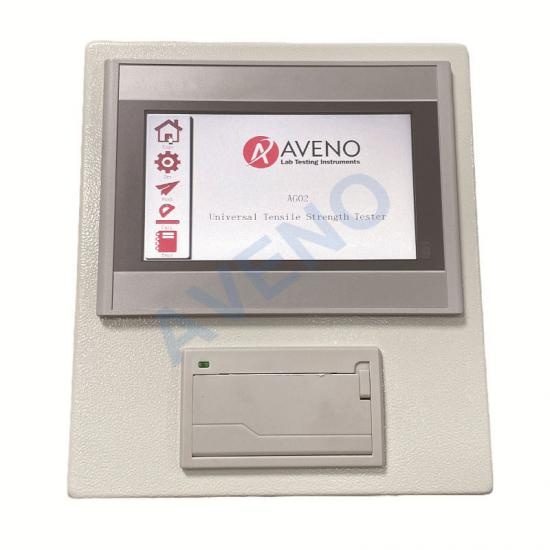

  • The instrument host adopts touch screen control, which is intuitive and simple to operate, and has a built-in printer for convenient use.

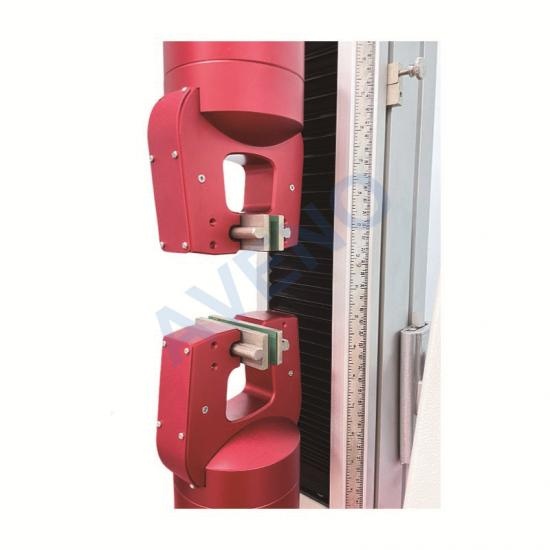

  • The multi-function pneumatic gripper can complete different tests by simply changing the clips, and the replacement is convenient and quick. The tensile and burst tests do not require replacement of the sensor.
  • The instrument can be controlled by a tablet PC, Wi-Fi or Android mobile phone.


Standards of Tensile Strength Tester

ISO13934-1,13934-2,13935-1,13935-2,13936-1,13936-2,13936-3, 13937-2,13937-3,13937-4,1421, 2411, 2062, 4674-1,5082, 9073.3, 9073.4, 9073.18; BS 2543, 2576, 3320, 3424, 4303, 4304; M&S P11, P12, P13, P14; JIS L1096; ASTM D 434, D751, D885, D1683, D2256, D2261, D2724, D2731, D3787, D4034, D4964, D5034, D5035, D5587, D5733, D5735.


Product Details


Key Specification of Tensile Strength Tester

Model

AG02 Universal Tensile Strength Tester (Single Column)

Capacity

500N, 1KN, 2.5KN, 5KN and etc (optional)

Display

Computer display

Clamp method

Pneumatic, can change to manual

Force Resolution

1/100,000

Force Accuracy

≤+/-0.2%F*S

Effective stroke

600mm

Test Speed

0.001-1000 mm/min , can set on display, can be set

Force Unit Switch

Kgf, N, Ibf, Free conversion

Stop Mode

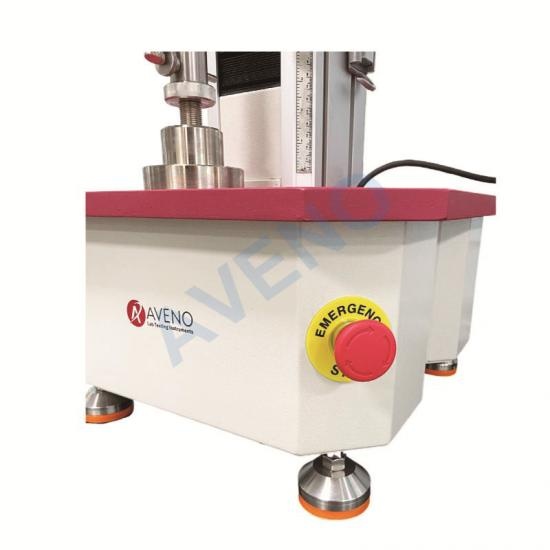

Overload stop, emergency stop button.

specimen damage automatic stop

Machine Drive

Servo motor drive, synchronous wheel and precision ball screw drive

Power Supply

220V 50/60HZ 500W, can according customer requirement

Dimensions(WxDxH)

67*48*144cm

Weight

150KG


Standard Accessories of Tensile Strength Tester

Standard Accessories

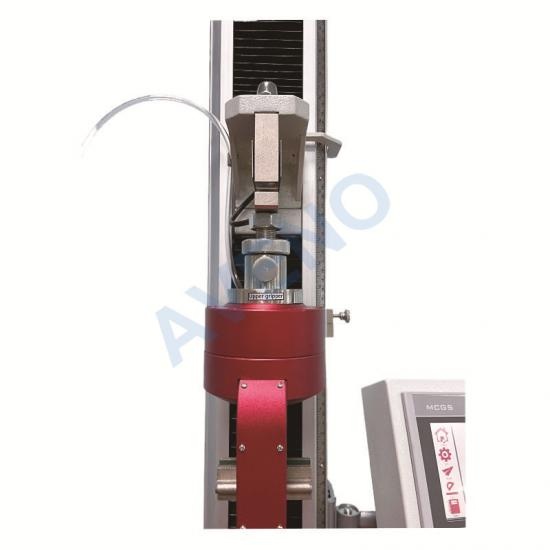

Load cell

1sets

Pneumatic Grips

1sets

Seam slippage clamps

4pcs

English operation software

1sets

Cable connect with PC

1pc

English manual

1pc

Certificate of quality

1pc

Option Accessories

Other grips (Pneumatic and manual)

Desk top computer

Load cell with different capacity


Related products

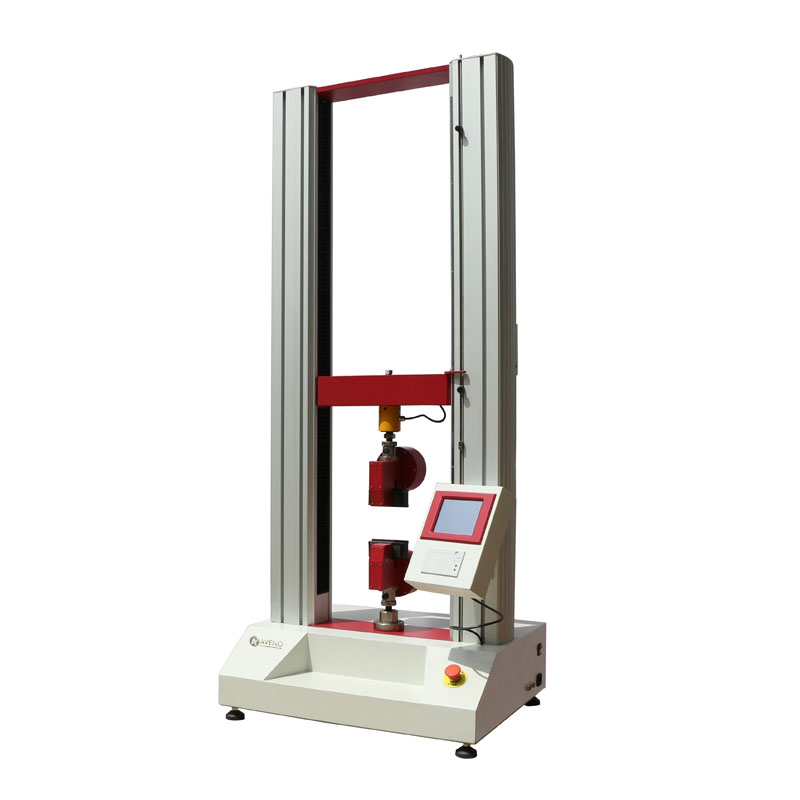

Universal Tensile Strength Tester        Electronic Peeling Tester                        Universal Tensile Strength Tester
