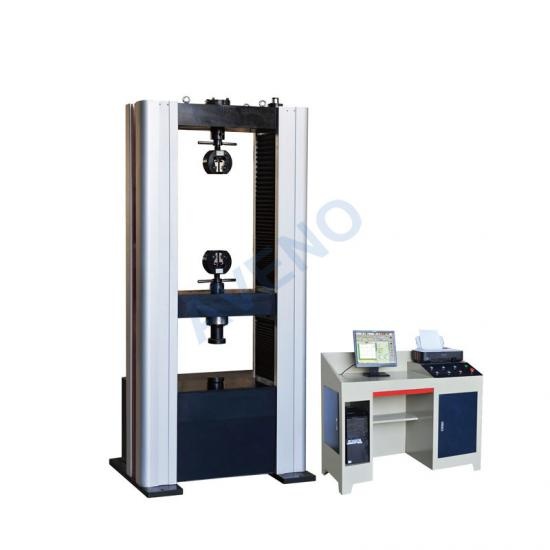

Universal Tensile Strength Tester (Double Column) AG01-2
Universal Tensile Strength Tester (Double Column) is used for tensile, bursting, shearing, peeling, compression, bending, tearing, creep, elasticity, joint and other strength testing.
+8615280858852
Universal Tensile Strength Tester widely used in testing wire, cable, textile, textile, fiber, plastic, rubber, ceramics, food, medical packaging, aluminum plastic tubes, plastic doors and windows, geo-textiles, film, wood, metal materials and other industries.
model :
AG01-2ABrand:
AVENOorigin:
ChinaLead Time:
3-10daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025AG01-2A-Universal Tensile Strength Tester (Double Column)
Application Of Universal Tensile Strength Tester (Double Column)
Universal Tensile Strength Tester widely used in testing wire, cable, textile, textile, fiber, plastic, rubber, ceramics, food, medical packaging, aluminum plastic tubes, plastic doors and windows, geo-textiles, film, wood, metal materials and other industries. To test fracture force, yield strength, tensile strength, compressive strength, elongation at break, tensile elasticity modulus, flexural resilience modulus and etc..
Feature Of Universal Tensile Strength Tester (Double Column)
Key Specification Of Universal Tensile Strength Tester (Double Column)
Model |
AG01-2A Universal Tensile Strength Tester (Double Column) |
Max. Capacity |
100KN |
Display |
Computer display mode |
Test force mode |
Infinite speed variation |
Test range |
0.4%-100%FS |
Force accuracy |
±0.5% |
Displacement resolution |
0.01mm |
Displacement velocity control range |
0.01mm/min~500mm/min |
Displacement velocity control accuracy |
±0.5% |
Test space height |
600mm |
Test space span |
400mm |
Defencive function |
Overload protection, limit protection, electric control system overcurrent, overvoltage, overheating protection |
Power supply |
AC220V, 50/60HZ |
Dimension |
76*42*180cm |
Weight |
400kg |
Main Parts Brand Of Universal Tensile Strength Tester (Double Column)
Dynamic system |
Panasonnic, Japan |
Speed governing system |
Panasonnic, Japan |
load sensor |
Celtron, USA |
Drive system |
TBI or ABBA |
Displacement induction system |
OMRON, Japan |
Accessories Of Universal Tensile Strength Tester (Double Column)
Standard Accessories |

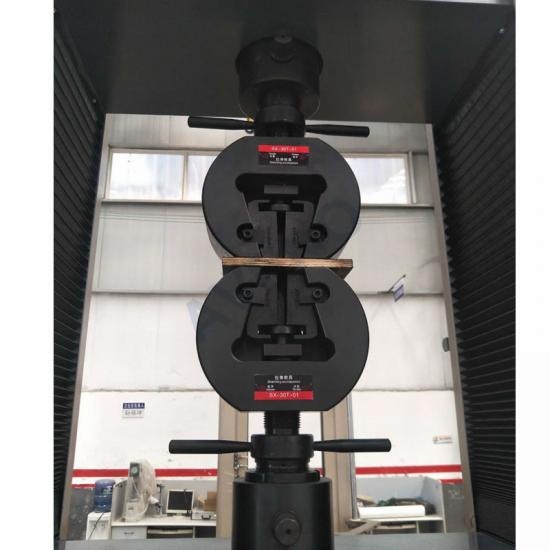

Manual grips |
1sets |
English operation software |
1pc |
|
Cable connect with PC |
1pc |
|
Load cell |
1pc |
|
Option Accessories |
Desk Top Computer(HP) |
|
Grips and load cell |
|
