Single Column Universal Tensile Strength Tester AG02-4

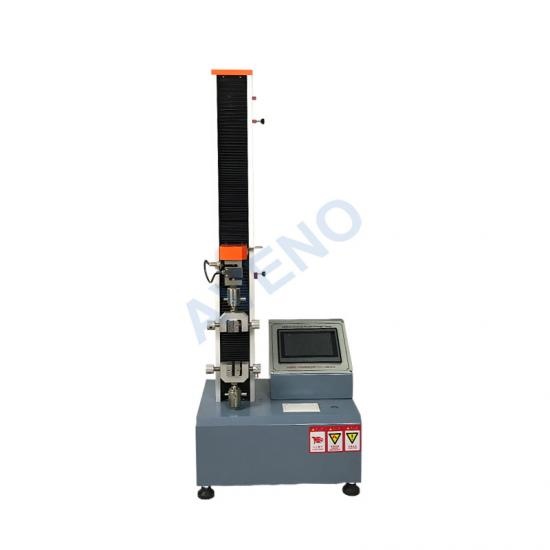

Single Column Universal Tensile Strength Tester AG02-4

Single Column Universal Tensile Strength Tester is widely used to test the tensile strength, peel strength, deformation rate, breaking force, peel force, opening force, compression, bending, shear resistance and etc..

  • model :

    AG02-4
  • Brand:

    AVENO
  • origin:

    China
  • Lead Time:

    3days, in stock
  • port:

    Xiamen port
  • Payment:

    T/T, L/C
  • certificate:

    CE ISO9001 ISO17025
  • Product Detail

AG02-4-Single Column Universal Tensile Strength Tester


Application Of Single Column Universal Tensile Strength Tester

Single Column Universal Tensile Strength Tester is widely used to test the tensile strength, peel strength, deformation rate, breaking force, peel force, opening force, compression, bending, shear resistance and etc.. Suitable for Textile, leather, shoe materials, hardware, metal, rubber, plastic film, composite film, adhesive, adhesive tape, medical patch, protective film, release paper, rubber, artificial leather.


Key Specification Of Single Column Universal Tensile Strength Tester

Model

AG02-4 Single Column Universal Tensile Strength Teste

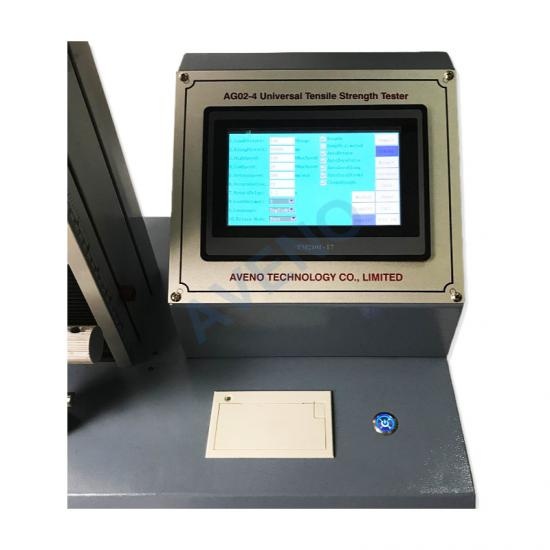

Control mode

Touch screen control

Capacity

0.5KN, 1KN, 2KN, option

Force accuracy

±0.5%

Effective stroke

450 mm

Test speed

0500 mm/min, can be set

Unit

MPa, kPa, kgf/cm², lbf/in²

Output

Can connect printer

Power supply

AC220V, 50/60HZ

Dimension

35*40*110cm

Weight

40kg


Accessories Of Single Column Universal Tensile Strength Tester

Standard Accessories

Load cell

1set

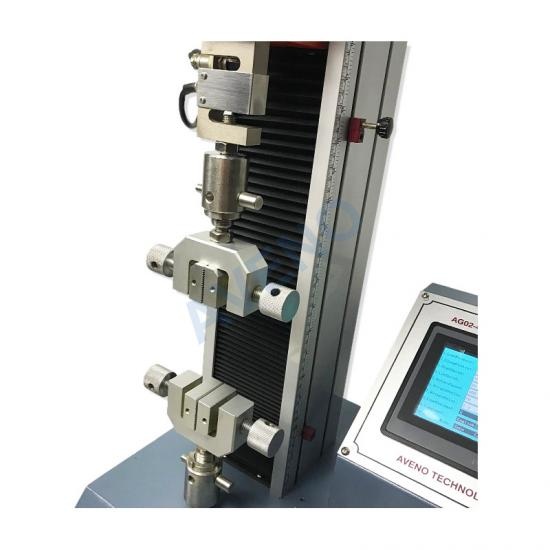

Manual Grips

1set

English manual

1pc

Certificate of quality

1pc

Option Accessories

Other grips

Printer

Load cell with different capacity
