Universal Tensile Strength Tester (Double Column) AG01-2
Universal Tensile Strength Tester (Double Column) is used for tensile, bursting, shearing, peeling, compression, bending, tearing, creep, elasticity, joint and other strength testing.
+8615280858852
Ball Burst Strength Tester is used to testing the impact strength and expansion of marbles for cotton fabrics, elastic fabrics and socks and gloves.
model :
AG02-3Brand:
AVENOorigin:
ChinaLead Time:
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:
GB/T 19976, FZ/T 01030, FZ/T 60019, ASTM D3787, ASTM D6796, EN12332-1AG02-3-Ball Burst Strength Tester

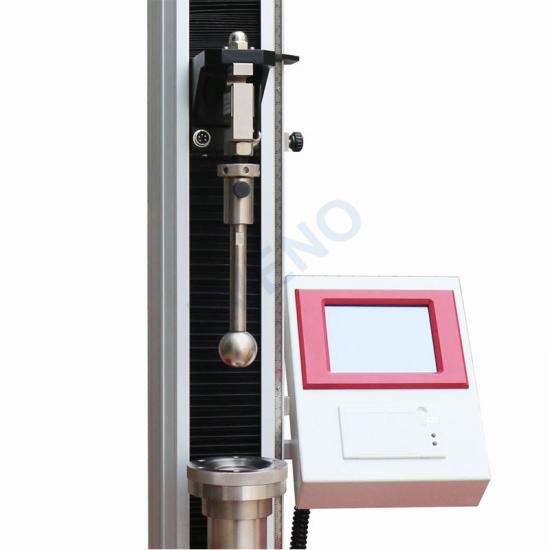

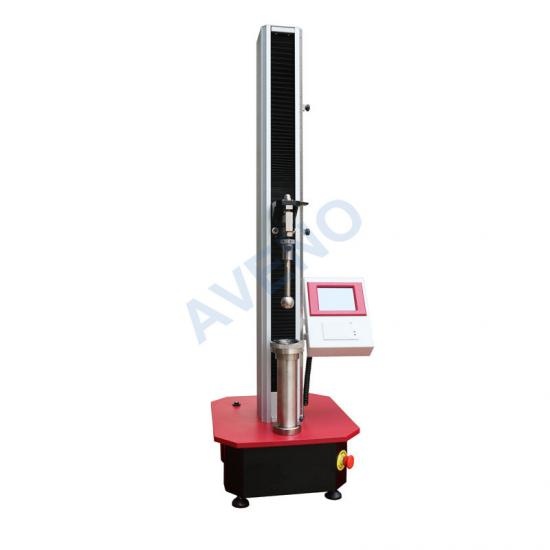

Application Of Ball Burst Strength Tester
Ball Burst Strength Tester is used to testing the impact strength and expansion of marbles for cotton fabrics, elastic fabrics and socks and gloves.
Feature Of Ball Burst Strength Tester
Standards Of Ball Burst Strength Tester
GB/T 19976, FZ/T 01030, FZ/T 60019, ASTM D3787, ASTM D6796, EN12332-1
Key Specification Of Ball Burst Strength Tester
Model |
AG02-3 Ball Burst Strength Tester |
||
Test force range |
2500N, (1%~100% of full range) |
||
Force accuracy |
±0.2%F.S |
||
Test speed |
5-500mm/min |
||
Maximum drop range of ball |
120mm |
||
Fixture diameter |
Φ45mm |
Φ25mm |
Φ45mm or Φ25mm |
Φ25mm |
Φ20mm |
Φ25mm |
|
Test Standard |
GB/T 19976 ASTM D 3787 |
FZ/T 60019 FZ/T 01030 |
EN12332-1 |
Power supply |
AC220V, 50/60HZ |
||
Dimension |
50*50*120cm |
||
Weight |
100kg |
