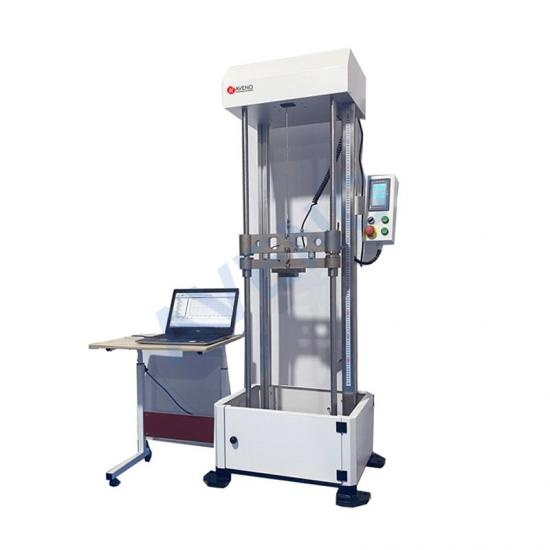

Safety Shoes Impact Tester AF03
Safety Shoes Impact Tester is used to test the impact resistance of safety shoe.
+8615280858852
Glove Impact Testing Equipment used to test the impact resistance of gloves, motorcycle protective clothing, knee pads, etc. During the experiment, lift the impact hammer to the height of the required impact energy, release the impact hammer, and drop it along a vertical guide path onto the sample placed on the test anvil. The center axis of the falling hammer coincides with the center axis of the anvil. Record the peak force of the impact test and check whether the sample is torn or perforated.
model :
AF03DBrand:
AVENOorigin:
ChinaLead Time:
3-7daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:
GB 24541-2022, EN 388-2016, EN 13594-2015, EN 1621-1, EN1621-2, EN1621-3, EN1621-4, EN20344AF03D-Glove Impact Testing Equipment
Application Of Glove Impact Testing Equipment
Glove Impact Testing Equipment used to test the impact resistance of gloves, motorcycle protective clothing, knee pads, etc. During the experiment, lift the impact hammer to the height of the required impact energy, release the impact hammer, and drop it along a vertical guide path onto the sample placed on the test anvil. The center axis of the falling hammer coincides with the center axis of the anvil. Record the peak force of the impact test and check whether the sample is torn or perforated
Standards Of Glove Impact Testing Equipment
GB 24541-2022, EN 388-2016, EN 13594-2015, EN 1621-1, EN1621-2, EN1621-3, EN1621-4, EN20344
Features Of Glove Impact Testing Equipment
1. Ceramic force sensor with high resolution and high response speed.
2. Equipped with buffering device to prevent secondary impact.
3. Automatically record and calculate test results.
4. Support printing test reports, easy to operate.
5. Safety protection: Anti smashing hooks.
Key Specification Of Glove Impact Testing Equipment
|
Model |
AF03D Glove Impact Testing Equipment |
|
Impact energy |
5 J, 5±0.1 J, 10±0.2 J, 50±2 J, 50±1.5 J |
|
Impact Griper and hammer |
GB 24541-2022, EN 388-2016, EN 13594-2015 EN 1621-1, EN 1621-4 EN 1621-2 EN 1621- EN 20344: |
|
Sensor capacity |
100KN |
|
Power supply |
AC220V, 50/60HZ |
|
Dimension |
65*77*220cm |
|
Weight |
250kg |
Accessories Of Glove Impact Testing Equipment
|
Standard Accessories |
Griper and hammer |
1set (According GB 24541-2022, EN 388-2016, EN 13594-2015) |
|
Power line |
1pc |
|
|
English Operate manual |
1pc |
|
|
Operate video |
1pc |
|
|
Quality certification |
1pc |
|
|
Optional Accessories |
EN 1621-1, EN 1621-4 Griper and hammer EN 1621-2 Griper and hammer |
|
|
EN 1621-3 Griper and hammer |
|
|
|
EN 20344 Griper and hammer |
|
Glove Impact Testing Equipment used to test the impact resistance of gloves, motorcycle protective clothing, knee pads, etc. During the experiment, lift the impact hammer to the height of the required impact energy, release the impact hammer, and drop it along a vertical guide path onto the sample placed on the test anvil. The center axis of the falling hammer coincides with the center axis of the anvil. Record the peak force of the impact test and check whether the sample is torn or perforated.
