Safety Shoes Cold Insulation Test Chamber suitable to doing cold resistance test for all kinds of shoes and boots.
model :
AF11Brand:
AVENOorigin:
ChinaLead Time：
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE, ISO9001, ISO17025standard:
ISO 20344, GB/T20991AF11 Shoes Thermal Insulation Tester
Application Of Shoes Thermal Insulation Tester
Shoes Thermal Insulation tester suitable to doing cold resistance test for all kinds of shoes and boots.
Test Principle of Shoes Thermal Insulation Tester
Filled the sample shoe with steel balls and put a temperature probe in the insole of the shoe, then seal the shoe with a sealing plug, put it in a cryogenic box, observe the temperature changes in sole to determine its cold resistance ability.
Standards Of Shoes Thermal Insulation Tester
ISO 20344, GB/T20991
Key Specification Of Shoes Thermal Insulation Tester
|
Model |
AF11 Shoes Thermal Insulation tester |
|
Temperature range |
-30～RT, -50～RT option |
|
Temperature accuracy |
±0.1℃ |
|
Temperature uniformity |
±1 ℃ |
|
Stainess steel ball diameter |
ø5 mm |
|
Window |
210×35×270 mm, two lattice vacuum |
|
Window lights |
P1 light, 5 W |
|
Inter size |
600×600×550 mm |
|
Power supply |
AC220V, 50/60HZ |
|
Dimension |
2000×780×1000 mm |
|
Weight |
280 kg |
Related products
Safety Shoes Impact Tester is used to test the impact resistance of safety shoe.
Safety shoes Inserts Flexing Tester is designed for determining the resistance of insoles for safety shoes to flex.
Shoes lining seepage tester used to test the waterproof function of rubber-faced,rubber shoes and shoes lining.
Anti-static Electrical Resistance Testeris used to testing the electrical resistance of the shoes to assess its anti-static characteristics.
Slip Resistance Tester is suitable for whole shoes, outsole with dry and wet method, The floor material can be made of stainless steel, carpet, ceramic tile, etc.

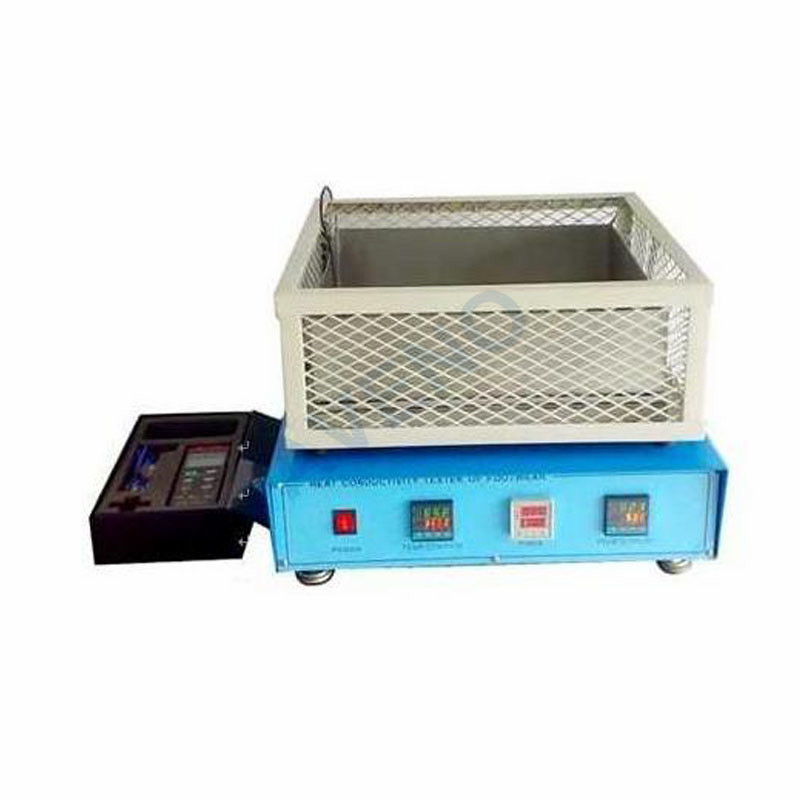

Shoes Heat Insulation Tester is used to determine the resistance of the shoe material to heat.
