model :
AF10Brand:
AVENOorigin:
ChinaLead Time：
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE, ISO9001, ISO17025standard:

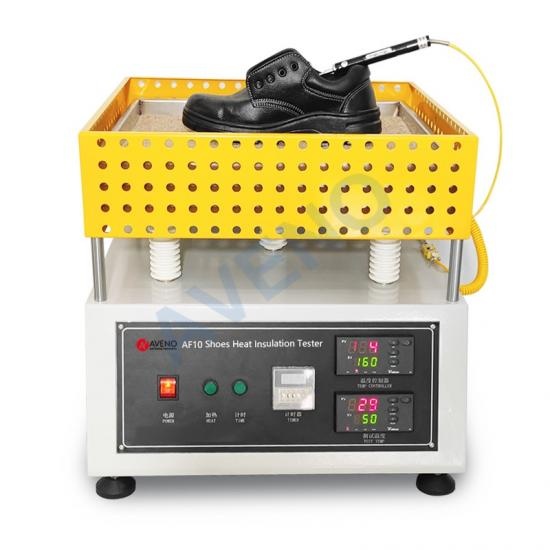

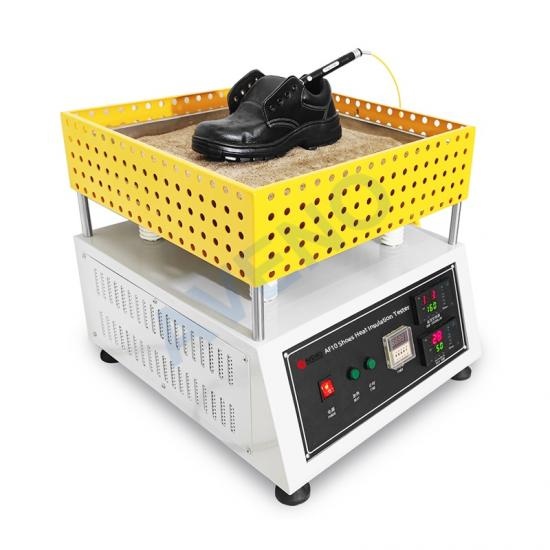

ISO 20344 5.12AF10 Shoes Heat Insulation Tester
Application Of Shoes Heat Insulation Tester
Shoes Heat Insulation Tester is used to determine the resistance of the shoe material to heat. The specimen (a whole shoe) is placed on the hotplate with a specified temperature for a certain period to examine the increase of temperature inside the shoe.
Standards Of Shoes Heat Insulation Tester
ISO 20344 5.12
Key Specification Of Shoes Heat Insulation Tester
|
Model |
AF10 Shoes Heat Insulation Tester |
|
Sand Bath Size |
(40±2) cm × (40±2) cm, height 8cm |
|
Sand Granular Size |
0.3~1.0mm |
|
Steel ball |
Φ5mm stainess steel, total weight 4kg, used for heating transfer |
|
Heating Power |
2500W |
|
Power |
AC220V, 500HZ |
|
Dimension |
60*60*35cm |
|
Weight |
35kg |
Accessories Of Shoes Heat Insulation Tester
|
Standard Accessories |
Temperature probe |
1set |
|
φ5mm steel balls |
4kg |
|
|
Power line |
1pc |
Related products
Safety Shoes Impact Tester is used to test the impact resistance of safety shoe.
Safety shoes Inserts Flexing Tester is designed for determining the resistance of insoles for safety shoes to flex.
Shoes lining seepage tester used to test the waterproof function of rubber-faced,rubber shoes and shoes lining.
Anti-static Electrical Resistance Testeris used to testing the electrical resistance of the shoes to assess its anti-static characteristics.
Slip Resistance Tester is suitable for whole shoes, outsole with dry and wet method, The floor material can be made of stainless steel, carpet, ceramic tile, etc.

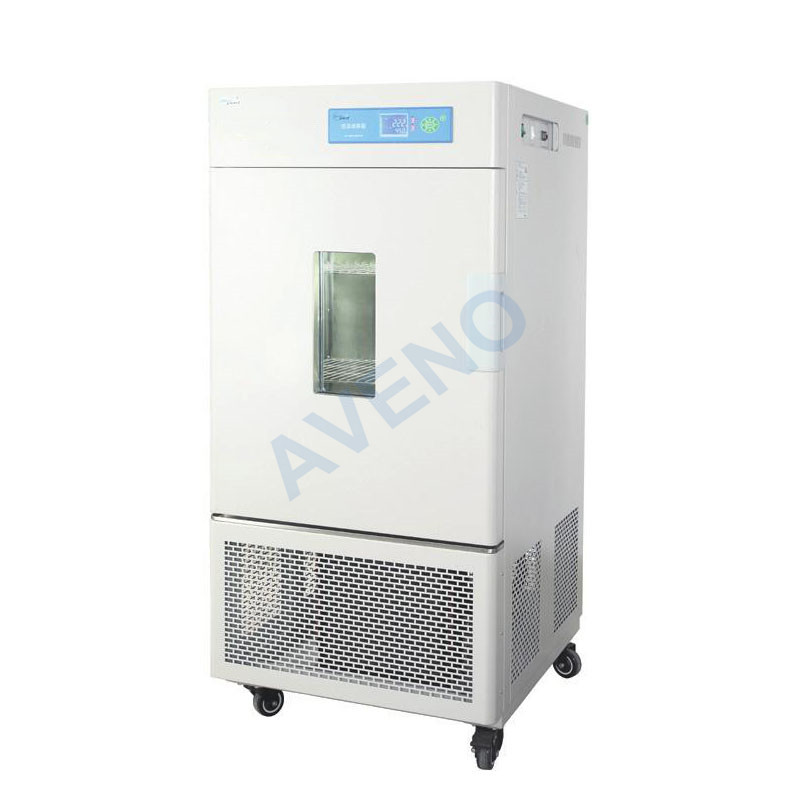

Safety Shoes Cold Insulation Test Chamber suitable to doing cold resistance test for all kinds of shoes and boots.
