Safety Shoes Impact Tester AF03
Safety Shoes Impact Tester is used to test the impact resistance of safety shoe.
+8615280858852
model :
AF09Brand:
AVENOorigin:
ChinaLead Time:
3-7 daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE, ISO9001, ISO17025standard:

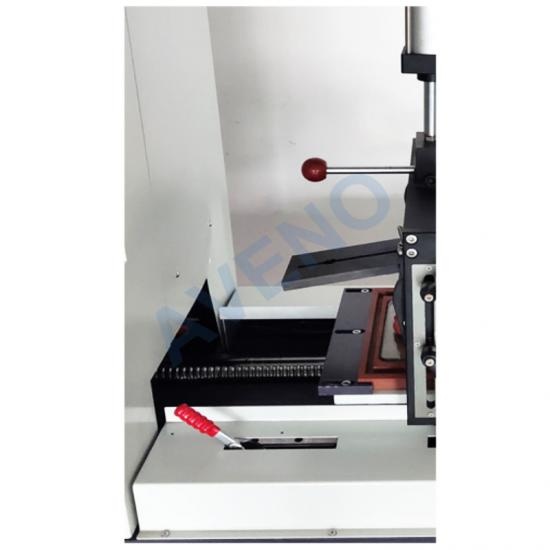

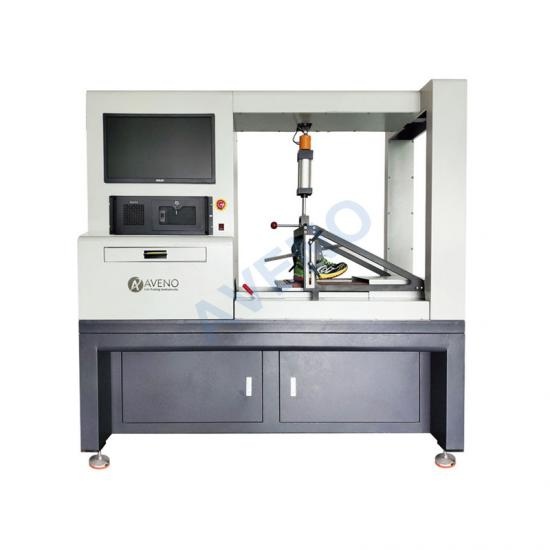

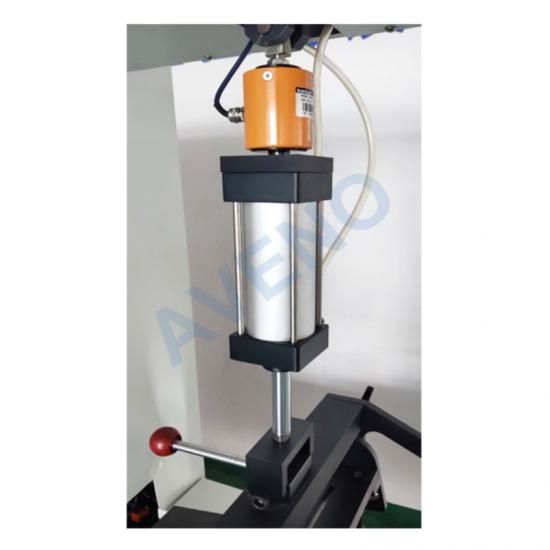

EN 13287, SATRA TM144, GB/T 28287, ASTM F2913, ISO 20344, ISO 20345AF09 Slip Resistance Tester
Application Of Slip Resistance Tester

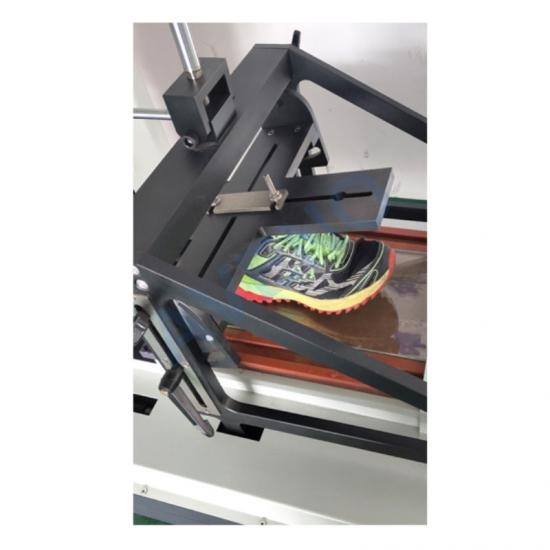

Slip Resistance Tester is suitable for whole shoes, outsole with dry and wet method, The floor material can be made of stainless steel, carpet, ceramic tile, etc. Its working principle: Simulation of walking shoe front and shoe heel and ground friction test, numerical test instrument and the friction slip.
Standards Of Slip Resistance Tester
EN 13287, SATRA TM144, GB/T 28287, ASTM F2913, ISO 20344, ISO 20345
Key Specification Of Slip Resistance Tester
Model |
AF09 Slip Resistance Tester |
Sensor |
Vertical 1000N±0.5%, horizontal 1000N±0.5% |
Standard vertical pressure |
500±25N (for footwear of European size 40, UK size 6.5 and above) 400±20N (for footwear below European size 40, UK size 6.5) |
Slip speed range |
100 mm/s~500 mm/s, can be set |
Standard slip speed |
300 mm/s±3 mm/s |
Wedge Angle gauge |
7° |
Test floor |
Compressed tile floor, stainless steel board, carpet |
Control method |
Computer control |
Power supply |
AC220V, 50/60HZ |
Dimension |
170*60*115cm |
Weight |
300kg |
Related products

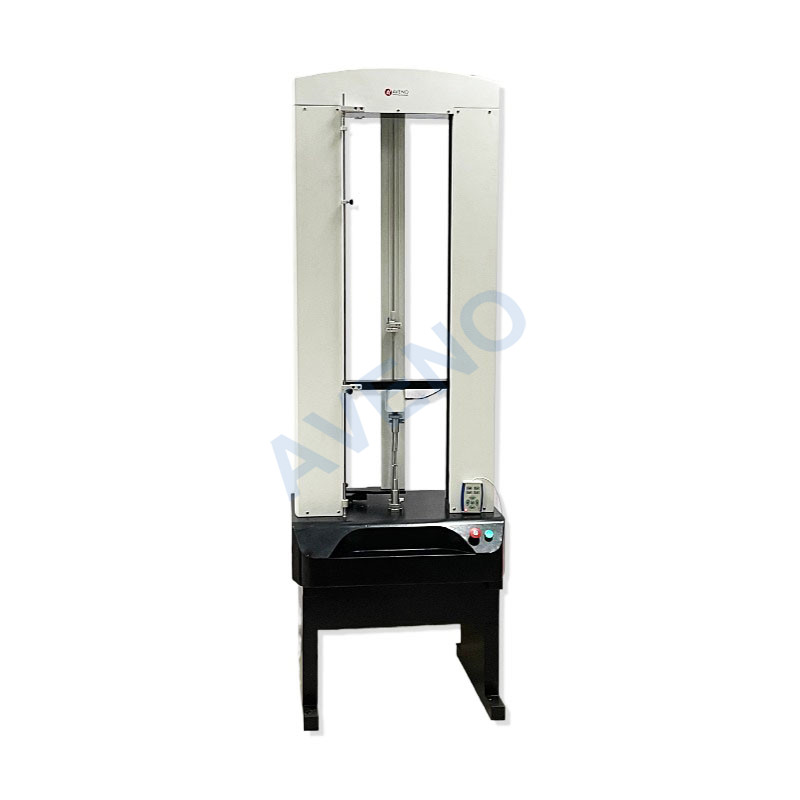

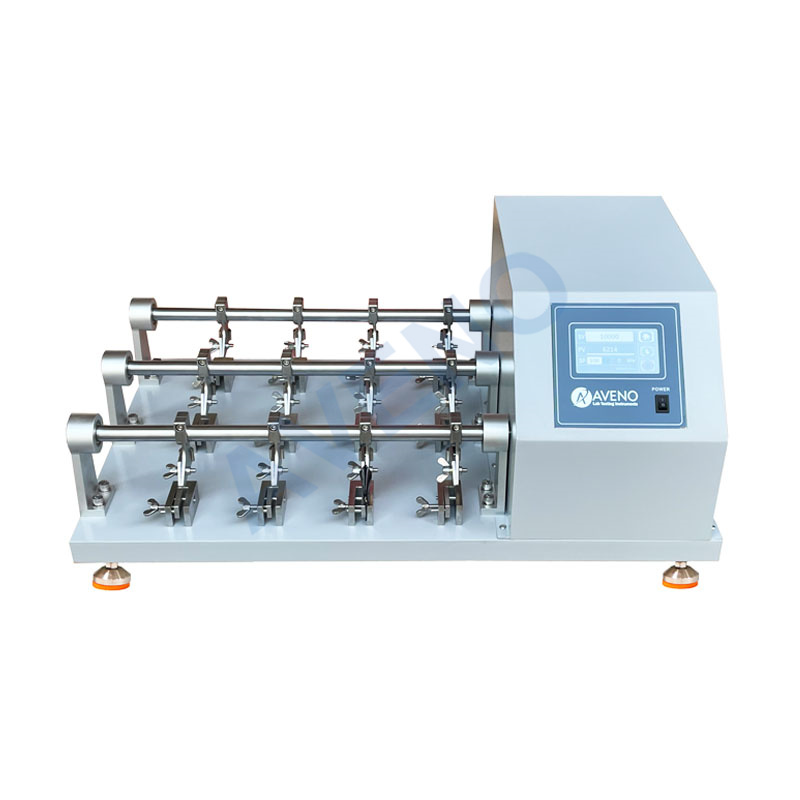

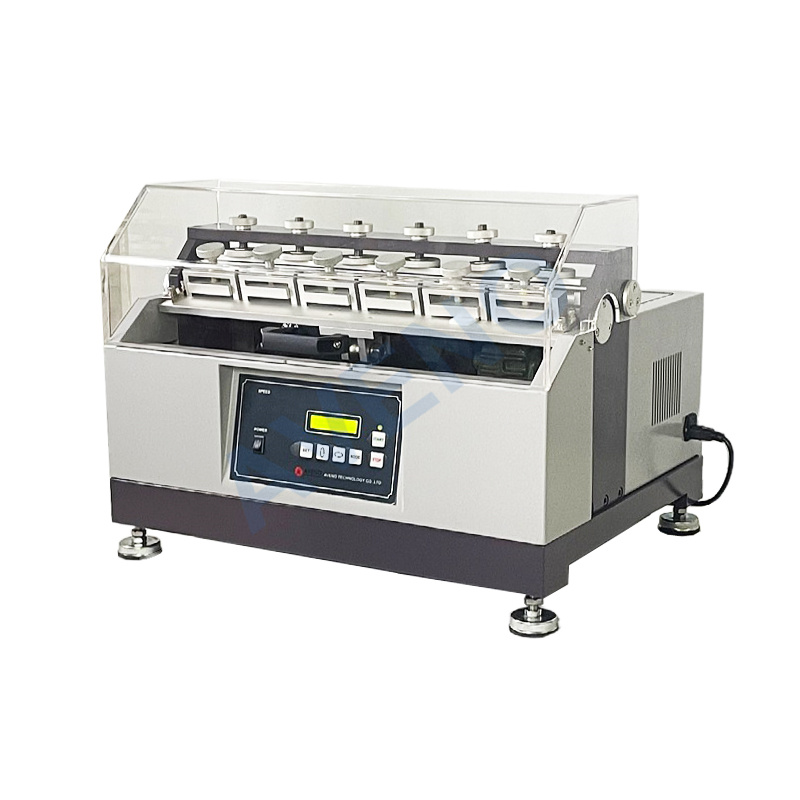

Universal Testing Machine (Dual Column) Bally Leather Flexing Resistance Tester ROSS Flexing Tester
