Safety Shoes Impact Tester AF03

Safety Shoes Impact Tester AF03

Safety Shoes Impact Tester is used to test the impact resistance of safety shoe.

  • model :

    AF03
  • Brand:

    AVENO
  • origin:

    China
  • Lead Time:

    10-20days
  • port:

    Xiamen port
  • Payment:

    T/T, L/C
  • certificate:

    CE, ISO9001, ISO17025
  • standard:

     EN ISO 20344, ANSI-Z41, BS EN-344, CSA-Z195, LD50, AS/NZS 2210.2, BS-953, EN 12568, ASTM F2412, ASTM F2413-11, LD-50, CNS 6863-82, JIS-T8101
  • Product Detail

AF03 Safety Shoes Impact Tester


Application Of Safety Shoes Impact Tester

Safety Shoes Impact Tester is used to test the impact resistance of safety shoe. Heavy hammer at a certain height free fall to impact the steel head, then according to the degree of subsidence to check the quality of safety shoes.

Standards Of Safety Shoes Impact Tester

EN ISO 20344,  ANSI-Z41, BS EN-344, CSA-Z195, LD50-1994, AS/NZS 2210.2, GB/T 20991, GB 4014-1983, BS-953, EN 12568, ASTM F2412, ASTM F2413-11, LD-50, CNS 6863-82, JIS-T8101:2000


Key Specification Of Safety Shoes Impact Tester

Model

AF03 Safety Shoes Impact Tester

Impact hammer

20±0.2kg, 22.7±0.23kg, 5±0.1kg(optional)

Impact energy

10-200J(optional)

Impact height range

0-1100MM adjustable

Falling weight

20±0.2 kg ; 22.7±0.23 kg;5±0.1kg, option

Power supply

AC220V, 50/60HZ

Dimensions

Main unit: 80x80x210 cm

Control cabinet: 27 cm ×27 cm ×115 cm

Weight

300kg


Related products

Ankle Protection Materials Shock Absorption Capacity TesterPlasticine Thickness Gauge

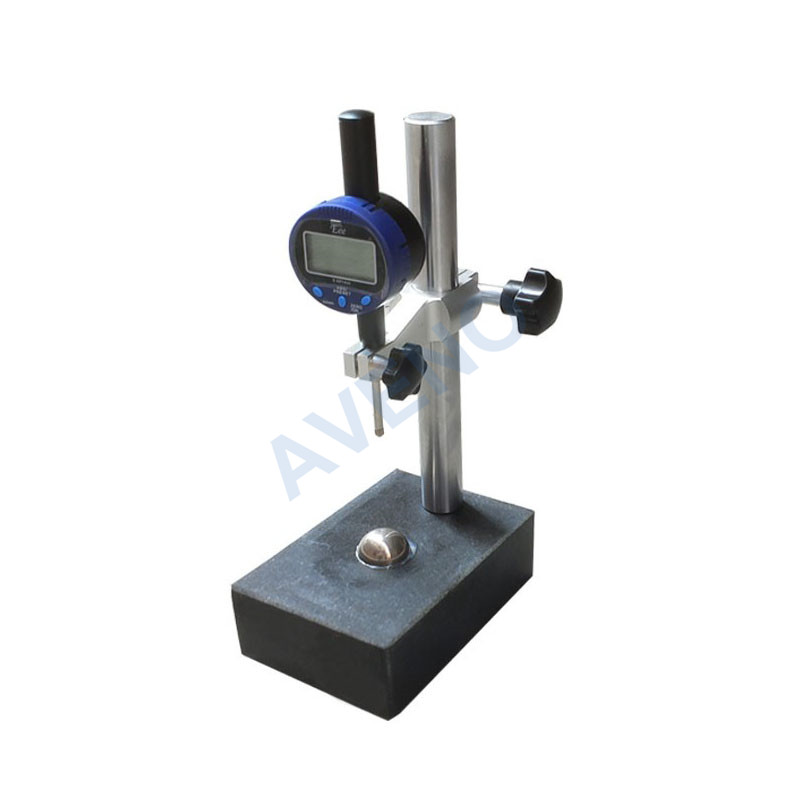

Ankle Protection Materials Shock         Plasticine Thickness Gauge
