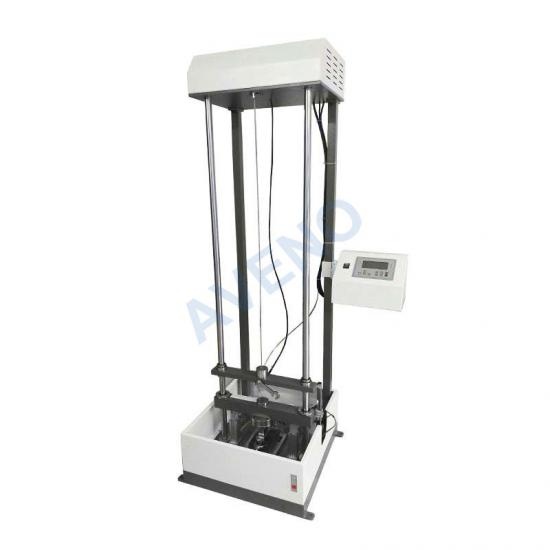

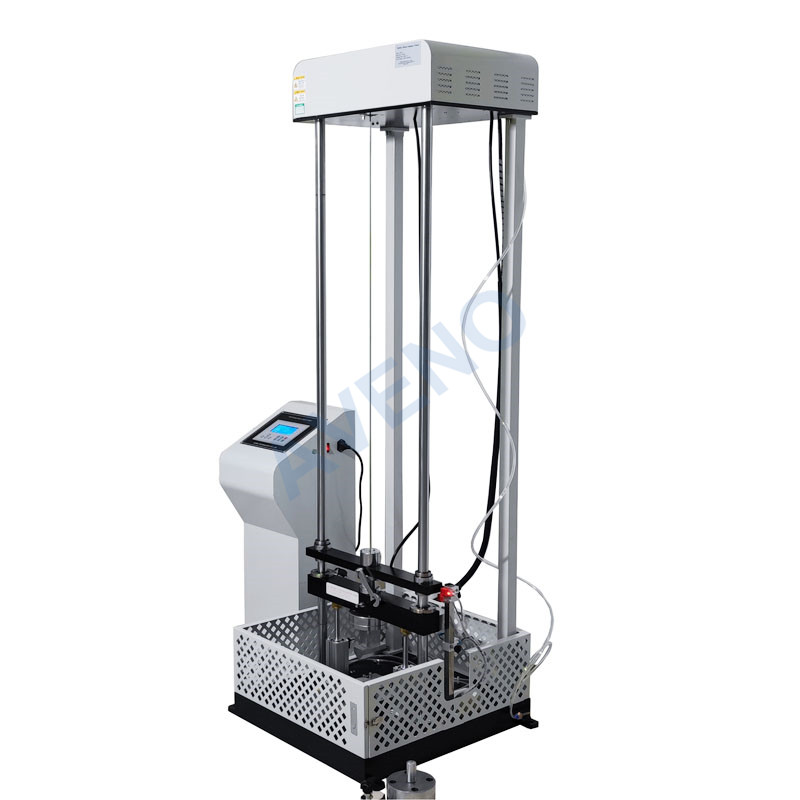

EN ISO 20344, GB/T 20991, AS/NZS 2210.2AF03B- Ankle Protection Materials Shock Absorption Capacity Tester
Application Of Ankle Protection Materials Shock Absorption Capacity Tester
When test, a test piece taken from the ankle protective area of the upper is subjected to an impact test and the transmitted force measured.
Standards Of Ankle Protection Materials Shock Absorption Capacity Tester
EN ISO 20344, GB/T 20991, AS/NZS 2210.2
Key Specification Of Ankle Protection Materials Shock Absorption Capacity Tester
|
Model |
AF03B Ankle Protection Materials Shock Absorption Capacity Tester |
|
Control mode |
LCD control |
|
Impact energy |
10J |
|
Impact surface |
80*40mm (rectangle) |
|
Impact hammer mass |
(5000±10g) |
|
Anvil dimension |
Height 175±25mm, with cylinder radius 25mm |
|
Power supply |
AC220V, 50/60HZ |
|
Dimensions |
80x90x210 cm |
|
Weight |
200kg |
Accessories Of Ankle Protection Materials Shock Absorption Capacity Tester
|
Standard Accessories |
Ankle special clamper |
1set |
|
Standard rubber mud mold |
1set |
|
|
Plasticene |
1set |
|
|
Hexagon spanner |
1set |
|
|
Power line |
1pc |
