Sole Proportion Detector is used for the density specific gravity of rubber, plastic, EVA foam material and other soles. Simple operation, one-click direct reading of weight in air, weight in water, material volume, etc.
model :
AF82Brand:
AVENOorigin:
ChinaLead Time：
3-7daysport:
Xiamen portPayment:
T/T, L/Ccertificate:

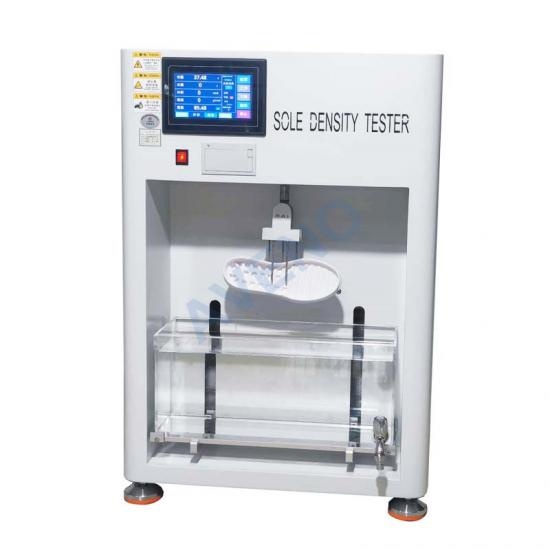

CE ISO9001 ISO17025AF82-Sole Proportion Detector
Application Of Sole Proportion Detector
Sole Proportion Detector is used for the density specific gravity of rubber, plastic, EVA foam material and other soles. Simple operation, one-click direct reading of weight in air, weight in water, material volume, etc.
Feature Of Sole Proportion Detector
Key Specification Of Sole Proportion Detector
|
Model |
AF82 Sole Proportion Detector |
|
Test sample capacity |
1000g |
|
Precision |
±0.01g |
|
Sensitivity |
0.5-4mv, can be adjust |
|
Fixture delay |
0-10s |
|
Tank volume |
490×150×210mm |
|
Lifting stroke |
200mm |
|
Power supply |
AC220V, 50/60HZ |
|
Dimension |
65×40×94cm |
|
Weight |
52kg |
Accessories Of Sole Proportion Detector
|
Standard Accessories |
Griper |
2set |
|
Load weight |
1set |
|
|
Power line |
1pc |
|
|
English Operate manual |
1pc |
|
|
Operate video |
1pc |
|
|
Quality certification |
1pc |
