Snap Button Pull Tester AG03
Snap Button Pull Tester used to determine the holding or breaking strength of prong-ring attached snap fasteners onto garments or toys.
+8615280858852
model :
AG18ABrand:
AVENOorigin:
ChinaLead Time:
3days, in stockport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:
GB/T 5453, GB/T 13764, ISO 9237, ISO 7231, ISO 5636, BS 5636, ASTM D737, DIN 53887, JIS L1096.AG18A-Digital Air Permeability Tester

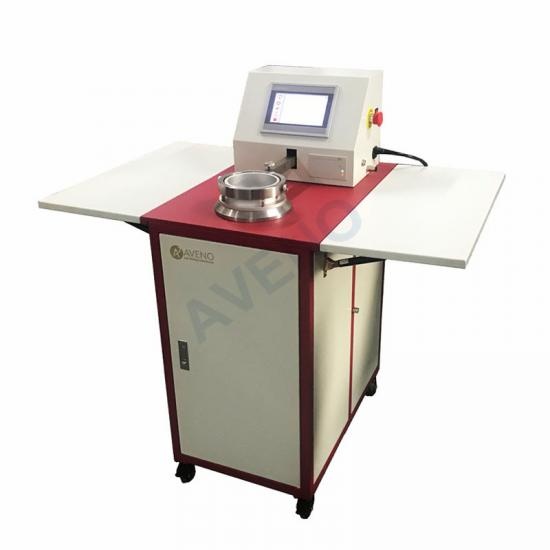

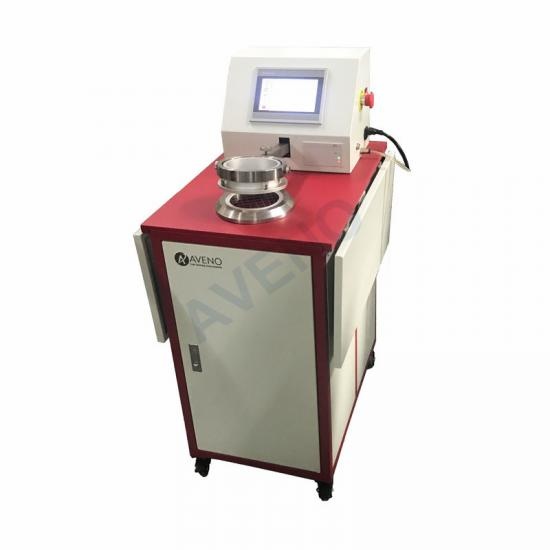

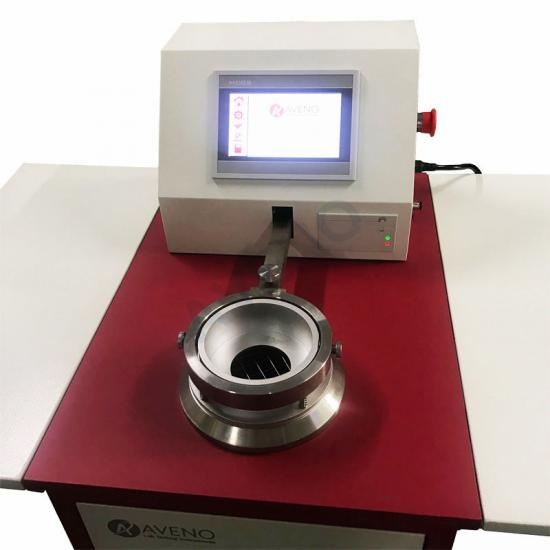

Application Of Digital Air Permeability Tester
Digital Air Permeability Tester is used for the determination of the air permeability of a variety of fabrics,such as industrial fabrics, non-woven fabrics and other breathable materials.
Feature Of Digital Air Permeability Tester
Standards Of Digital Air Permeability Tester
GB/T 5453, GB/T 13764, ISO 9237, ISO 7231, ISO 5636, BS 5636, ASTM D737, DIN 53887, JIS L1096.
Key Specification Of Digital Air Permeability Tester
Model |
AG18A Digital Air Permeability Tester |
||||||||||
Nozzle |
Manually change nozzle |
||||||||||
Test pressure |
1~4000Pa |
||||||||||
Permeability range |
1~9999mm/s, ≤±2% |
||||||||||
Fabric thickness range |
≤12mm |
||||||||||
Test area |
5cm2, 20cm2, 50cm2, 100cm2, Ф50mm(≈19.6cm2), Ф70mm(≈38.5cm2) |
||||||||||
Nozzle NO. |
0 |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
Nozzle Dia. (mm) |
0.8 |
1.2 |
2 |
3 |
4 |
6 |
8 |
10 |
12 |
16 |
20 |
Printer |
Thermosensitive micro printer |
||||||||||
Power |
AC220V, 50/60HZ |
||||||||||
Dimension |
107×67×108cm |
||||||||||
Weight |
75kg |

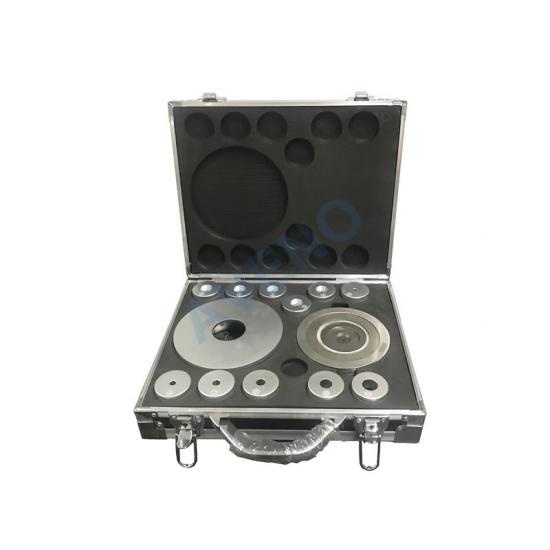

Accessories Of Digital Air Permeability Tester
Standard Accessories |
Operate software |
1set |
Calibration plate |
1set |
|
Nozzle |
1set (11pcs) |
|
PC cable |
1pc |
|
Power line |
1pc |
|

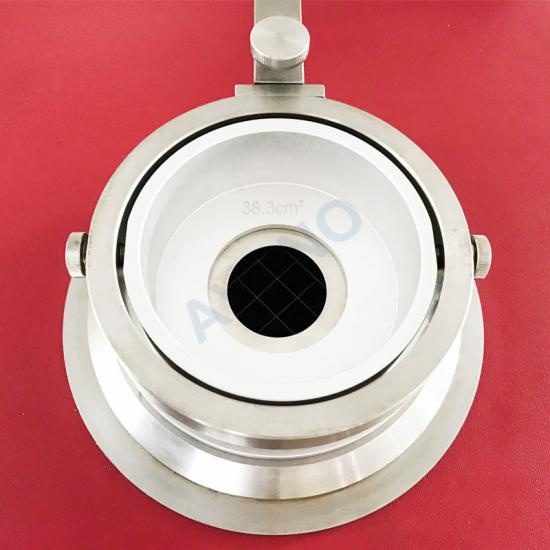

Griper |
2sets (20cm²,38.3cm²) |
|
Test area plate 1set |
(10pcs) |
|
Pressure samples ring |
1pc |
|
Air tube |
1pc |
|
Fuse |
2pc |
|
Sealing sponge |
1pc |
|
English manual |
1pc |
|
Operate Video |
1pc |
Series products:AG18B Automatic Air Permeability Tester
