Automatic Air Permeability Tester AG18B

Automatic Air Permeability Tester AG18B

Automatic Air Permeability Tester is used to determine the air permeability properties of fabric, suitable for many kinds of textile fabrics, including industrial fabrics, textile products such as non-wovens and other breathable materials.

  • model :

    AG18B
  • Brand:

    AVENO
  • origin:

    China
  • Lead Time:

    3-7days
  • port:

    Xiamen port
  • Payment:

    T/T, L/C
  • certificate:

    CE, ISO9001, ISO17025
  • standard:

    ISO 9237, ISO 7231,ISO 5636,BS 5636,ASTM D737,DIN 53887,JIS L1096.
  • Product Detail

AG18B-Automatic Air Permeability Tester


Application Of Air Permeability Tester

Automatic Air Permeability Tester is used to determine the air permeability properties of fabric, suitable for many kinds of textile fabrics, including industrial fabrics, textile products such as non-wovens and other breathable materials.


Feature Of Air Permeability Tester

  • Automatic clip, automatic change nozzle, achieve quickly testing.
  • Microcomputer processing, direct display test results, no need to  manual table checking and calculation.
  • Built-in continuous test mode, the testing unit can be switched according to need.
  • English and Chinese LCD menu operation, with computer interface.


Standards Of Air Permeability Tester

GB/T 5453, GB/T 13764, ISO 9237, ISO 7231, ISO 5636, BS 5636, ASTM D737, DIN 53887, JIS L1096.


Key Specification Of Air Permeability Tester

Model

AG18B Automatic Air Permeability Tester

Nozzle

Automatic change nozzle

Test pressure

1-4000Pa (spray nozzle), 1-1000Pa(sample)

Measurable permeability

1-9999mm/s, ≤±2%

Measurable fabric thickness

12mm

Test area

5cm2, 20cm2, 50cm2, 100cm2,

Ф50mm(≈19.6cm2), Ф70mm(≈38.5cm2)

Nozzle NO.

0

1

2

3

4

5

6

7

8

9

10

Nozzle Dia. (mm)

0.8

1.2

2

3

4

6

8

10

12

16

12

Printer

Thermosensitive micro printer

Power

AC220V, 50/60HZ

Dimension

107×67×108cm

Weight

75kg


Accessories Of Air Permeability Tester

Standard Accessories

Operate software

1set

Calibration plate

1set

Nozzle

1set (Build-in)

PC cable

1pc

Power line

1pc

Griper

2sets (20cm2,38.3cm2)

Test area plate 1set

10pcs

Pressure samples ring

1pc

Air tube

1pc

Fuse

2pc

Sealing sponge

1pc

English manual

1pc

Operate Video

1pc


Series products:AG18A Digital Air Permeability Tester


send a message
Hello friends, please leave us a message for us to serve you better. Thank you.
Any questions we will reply you within in 24 hours. Best wishes.
related products
Bursting Strength Tester

Bursting Strength Tester AG10

Bursting Strength Tester is used to determine the expansion force and divergence rate of fabric, woven, knitted fabrics, non-woven, paper and board.

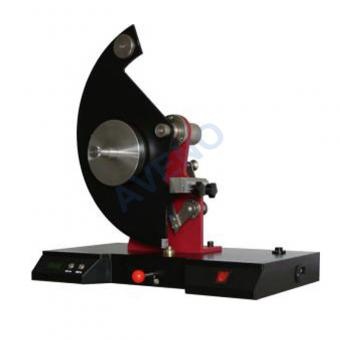

Elmendorf Tearing Tester (Falling-Pendulum Type)

Elmendorf Tearing Tester (Falling-Pendulum Type) AG11-1

Elmendorf Tearing Tester is used for testing the tearing strength of all kinds of fabrics( Elmendorf Method), and the tearing resistance of thick paper, plastic cloth, electrical tape, etc.

Digital Tearing Tester

Digital Tearing Tester AG11-3

Digital Tearing Tester is used for testing the tearing strength of all kinds of fabrics( Elmendorf Method), and the tearing resistance of thick paper, plastic cloth, electrical tape, etc.

Button Impact Resistance Tester

Button Impact Resistance Tester AG12B

Button Impact Resistance Tester is used to determine the impact resistance of plastic sew-through flange buttons.

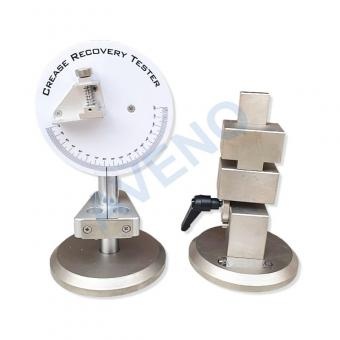

Crease Recovery Tester & Loading Device

Crease Recovery Tester & Loading Device AG16

Crease Recovery Tester and Loading Device, is used to determining recovery performance of horizontal creases of fabrics.

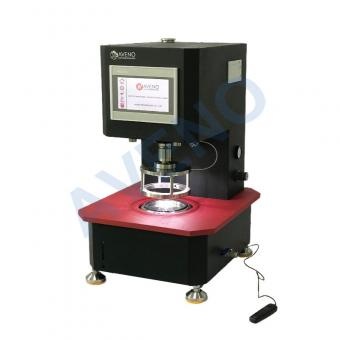

Hydrostatic Head Pressure Tester
