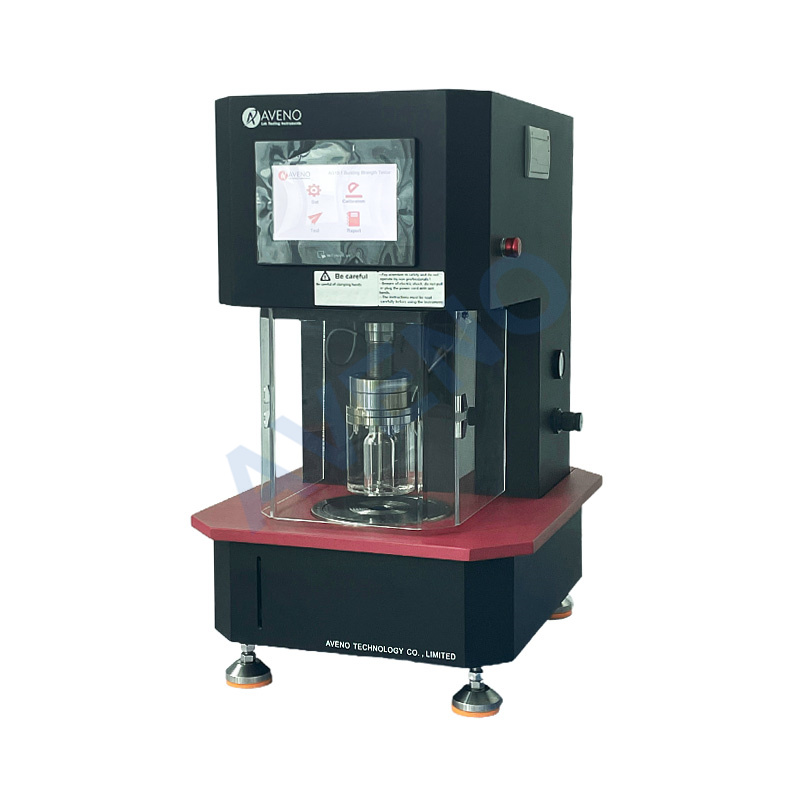

Hydrostatic Head Pressure Tester AG17B

Hydrostatic Head Pressure Tester AG17B

Hydrostatic Head Pressure Tester is used to determine the water penetration resistance of all kinds of fabrics used for waterproofing, such as canvas, coating cloth, tent cloth, tarpaulin, rainproof clothing and geotextile materials, etc..

  • model :

    AG17B
  • Brand:

    AVENO
  • origin:

    China
  • Lead Time:

    3-7days
  • port:

    Xiamen port
  • Payment:

    T/T, L/C
  • certificate:

    CE,ISO9001,ISO17025
  • standard:

    GB/T 4744, AATCC 127, ISO 811, BS EN 20811, BS 3321, 3424-26, JIS L 1092A/B, FZ/T 01004.
  • Product Detail

AG17B-Hydrostatic Head Pressure Tester


Application Of Hydrostatic Head Pressure Tester

Hydrostatic Head Pressure Tester is used to determine the water penetration resistance of all kinds of fabrics used for waterproofing, such as canvas, coating cloth, tent cloth, tarpaulin, rainproof clothing and geotextile materials, etc..


Feature Of Hydrostatic Head Pressure Tester

  • Servo motor drive system, the microcomputer controls the water flow, the pressure rate range is wide and can be steplessly adjustable, and the pressurization speed is accurate.
  • Pneumatic clamping sample makes the sample is evenly stressed and prevent damage to the sample.
  • Five test modes are optional: pressurization method, constant pressure timing method, constant pressure constant timing method, disturbance relaxation and water leakage method.
  • Built-in automatic rating function.
  • Built-in wireless wifi, wireless control of the instrument through the tablet. Built-in portable printer. It can be connect to a computer and automatically draw real-time test data curves for easy observation.


Standards Of Hydrostatic Head Pressure Tester

GB/T 4744, AATCC 127, ISO 811, BS EN 20811, BS 3321, 3424-26, JIS L 1092A/B, FZ/T 01004.


Key Specification Of Hydrostatic Head Pressure Tester

Model

AG17B-1

AG17B-2

AG17B-3

Test range

200KPa

500KPa

1000KPa

Testing method

Pressurization method;

Constant pressure timing method;

Constant pressure constant timing method;

Disturbance relaxation ;

Water leakage method.

Pressure display resolution

1 / 10000

Sensor test accurary

1% (5%-100% within single sensor full scale range)

Experimental area

100cm2 7.8cm2 (optional)

Pressurization rate

0.1KPa ~ 10KPa / min (infinitely adjustable)

Display mote

Color touch screen

Power supply

AC 220V, 50/60Hz

Dimensions

55x 43x63cm

Weight

60kg


Accessories Of Hydrostatic Head Pressure Tester

Standard Accessories

100cm2 griper

1set

Calibration plate

1set

Rubber ring

2pcs

English operate software

1set

Cable connect with PC

1pc

Power line

1pc

Option Accessories

Table-top Computer

Other size of griper


Related products

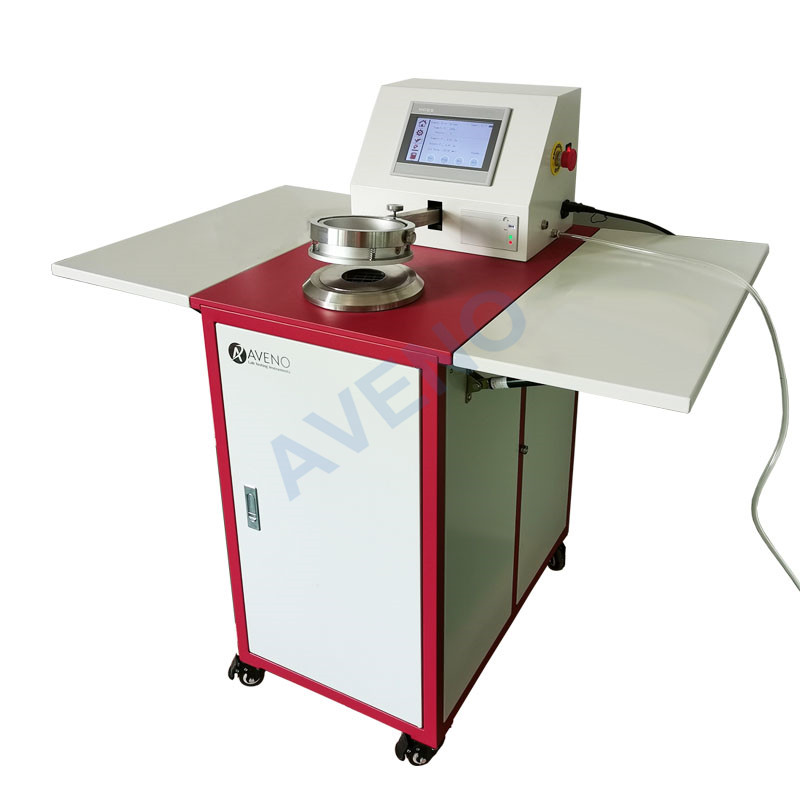

Hydrostatic Head Pressure TesterDigital Air Permeability Tester Bursting Strength Tester
