Bursting Strength Tester is used to determine the expansion force and divergence rate of fabric, woven, knitted fabrics, non-woven, paper and board.
model :
AG10Brand:
AVENOorigin:
ChinaLead Time：
7-10daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE, ISO9001, ISO17025standard:
ISO, EN, ASTM, AATCC, M&S, JIS, and etc.

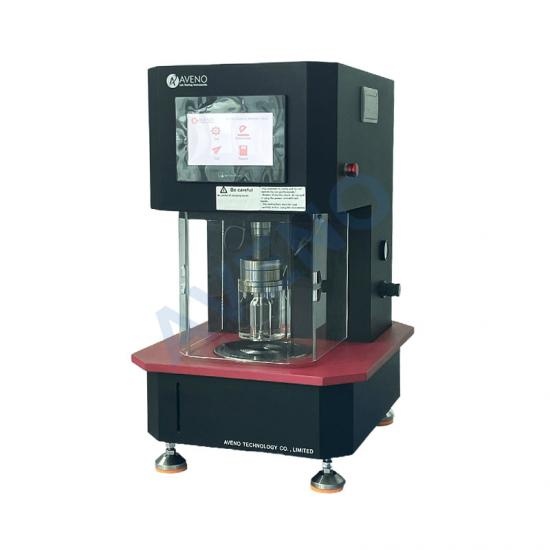

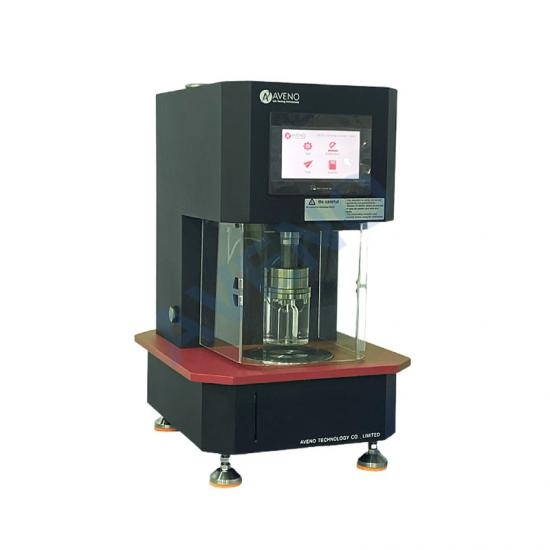

AG10- Bursting Strength Tester
Application Of Bursting Strength Tester
Bursting Strength Tester is used to determine the expansion force and divergence rate of fabric, woven, knitted fabrics, non-woven, paper and board.
Standards Of Bursting Strength Tester
ASTM D3786-06, ISO 2758/13938-1, BS 3424/3137, BS 4768, AS2001.2.4, GB/T 7742, IWSTM 29, EDA NA 80.4-02/80.3-99, NEXT 22 2206, FZ/T60019, JIS L 1018.6.17, BS-2922, FZ/T 60019, FZ/T 01030, JIS L 1018.6.17.
Key Specification Of Bursting Strength Tester
|
Model |
AG10-1 |
AG10-2 |
|
Test range |
2.00Mpa |
10.00Mpa |
|
Min division value |
0.001Mpa |
0.003Mpa |
|
Bursting method |
Hydraulic bursting method |
|
|
Clamp |
Pneumatic clamp |
|
|
Test area |
7.3cm2(φ30.5mm), 10cm2(φ35.7mm), 50cm2(φ79.8mm), 100cm2(φ112.8mm), |
|
|
Max expansion height |
75±0.02mm |
|
|
Pressure speed |
20-600ml/min |
|
|
Test method |
Constant rate bursting Constant expansion Constant pressure Constant time bursting |
|
|
Pressure units |
Kpa, kg/cm2, bar, lb/in2 |
|
|
Power supply |
AC220V, 50/60HZ |
|
|
Dimension |
550*450*700mm |
|
|
Weight |
125Kg |
|
Accessories Of Bursting Strength Tester
|
Standard Accessories |
7.3cm2 test set (φ30.5mm) |
1set |
|
50cm2 test set (φ79.8mm) |
1set |
|
|
Wrench |
1pc |
|
|
Calibration plate |
1pc |
|
|
Rubber diaphragm |
1pc |
|
|
English operate software |
1set |
|
|
Cable to connect with computer |
1pc |
