Elmendorf Tearing Tester is used for testing the tearing strength of all kinds of fabrics( Elmendorf Method), and the tearing resistance of thick paper, plastic cloth, electrical tape, etc.
model :
AG11-1Brand:
AVENOorigin:
ChinaLead Time：
3-7 daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE, ISO9001, ISO17025standard:
GB/T 3917.1, FZ/T60006, FZ/T75001, ISO1974/9290, ASTM D1424/5734 ect.

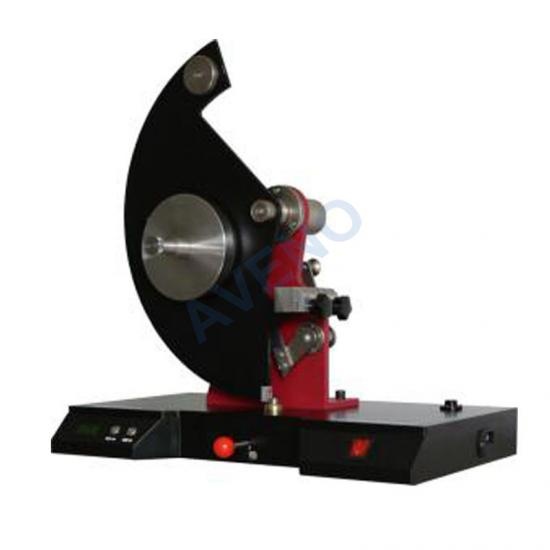

Elmendorf Tearing Tester (Falling-Pendulum Type) is used for testing the tearing strength of all kinds of fabrics( Elmendorf Method), and the tearing resistance of thick paper, plastic cloth, electrical tape, etc.
GB/T 3917.1, FZ/T60006, FZ/T75001, ISO1974/9290, ASTM D1424/5734 ect.
Key Specification Of Elmendorf Tearing Tester (Falling-Pendulum Type)
|
Model |
AG11-1 Elmendorf Tearing Tester (Falling-Pendulum Type) |
|
Range of Tearing Force |
A: 16N B: 32N C: 64N |
|
Accuracy |
≤±1 Full scale |
|
Cut Length |
20±0.2mm |
|
Rip Length |
43mm± 0.15mm |
|
Sample size |
100 x 63mm (LxW) |
|
Power supply |
AC 220V, 50/60HZ |
|
Dimensions (LxWxH) |
400 x 210 x 395mm |
|
Weight |
30Kg |

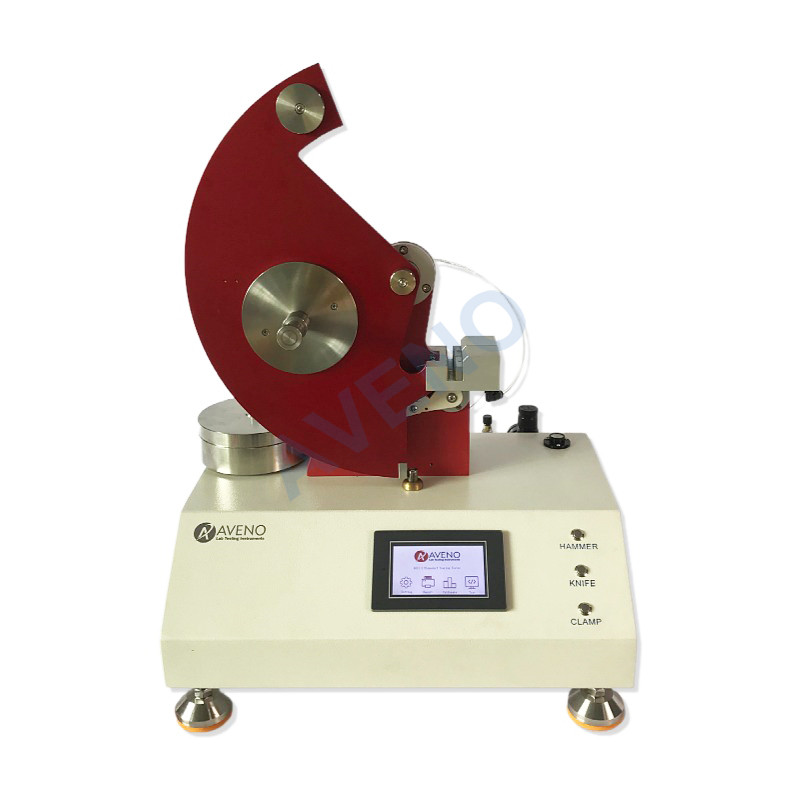

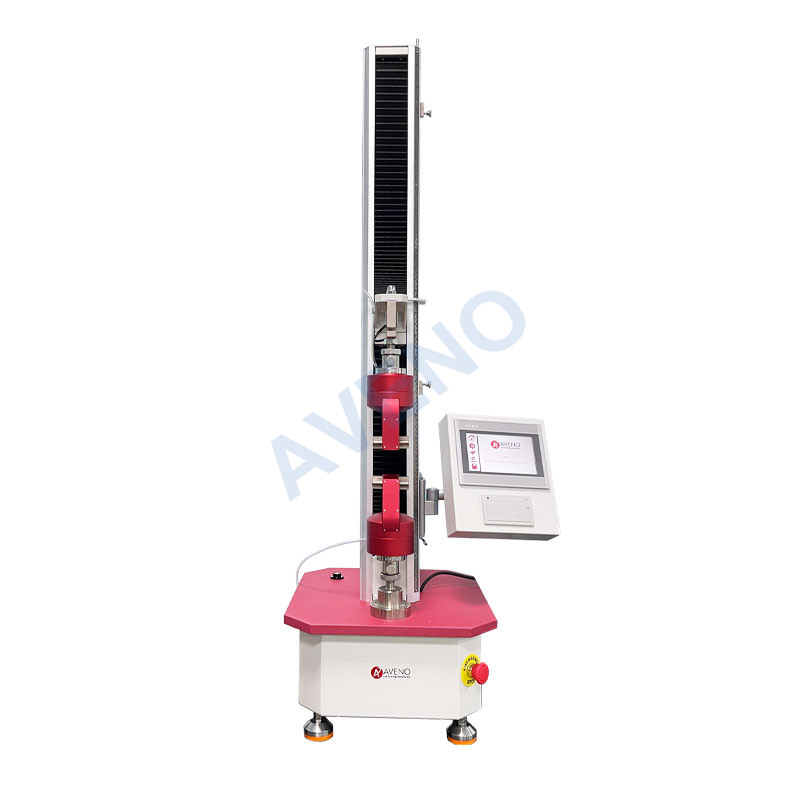

1. Electronic Tearing Tester 2. Digital Tearing Tester 3. Universal Tensile Strength Tester (Single Column)
2. https://www.avenotester.com/digital-tearing-tester-ag11-3_p212.html
3. https://www.avenotester.com/universal-tensile-strength-tester-single-column-ag02_p11.html
Snap Button Pull Tester used to determine the holding or breaking strength of prong-ring attached snap fasteners onto garments or toys.
Bursting Strength Tester is used to determine the expansion force and divergence rate of fabric, woven, knitted fabrics, non-woven, paper and board.

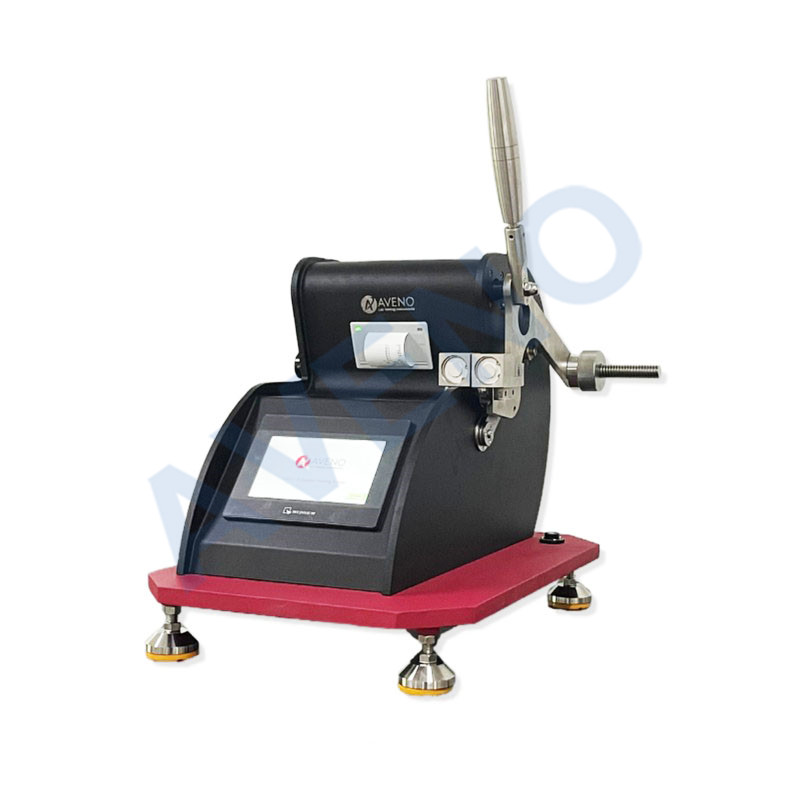

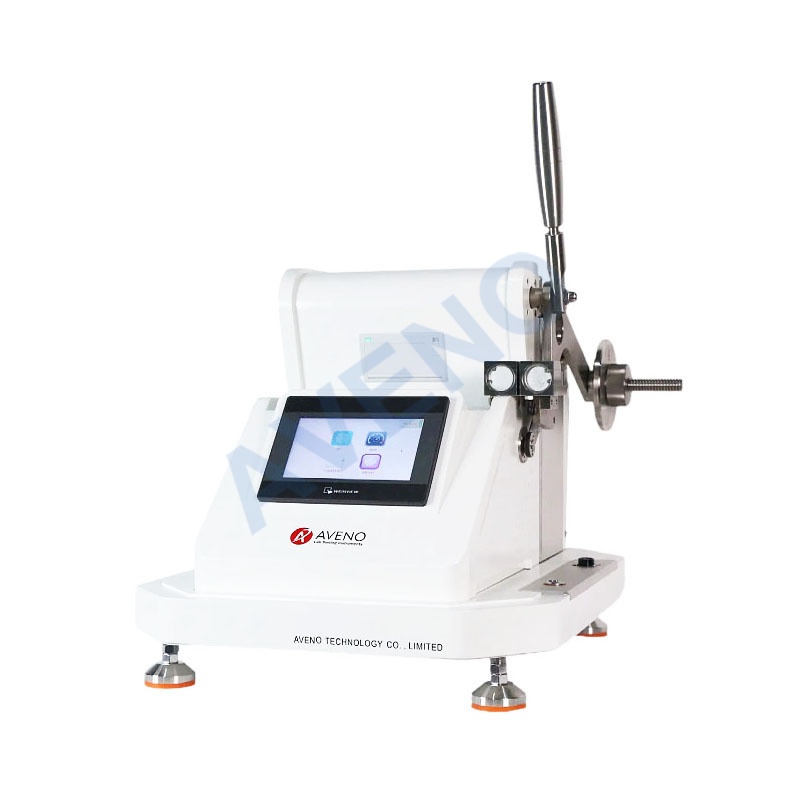

Digital Tearing Tester is used for testing the tearing strength of all kinds of fabrics( Elmendorf Method), and the tearing resistance of thick paper, plastic cloth, electrical tape, etc.
