Infrared Laboratory Dyeing Machine AC19

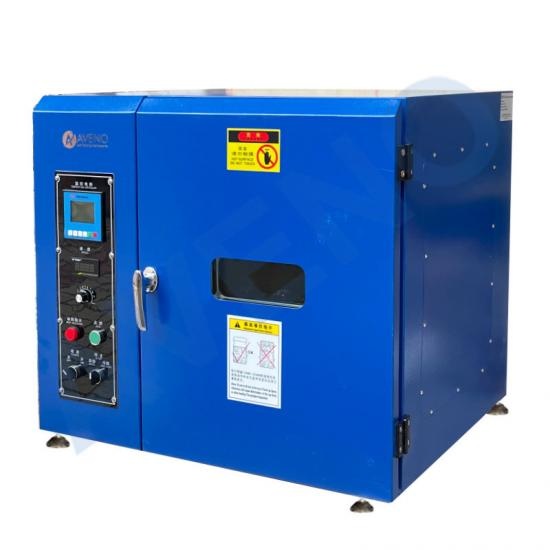

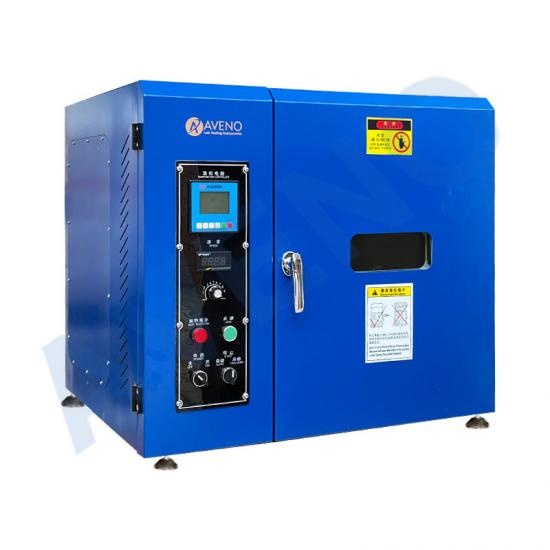

Infrared Laboratory Dyeing Machine AC19

Infrared Laboratory Dyeing Machine uses thermal infrared heating to achieve dyeing. The performance is stable and reliable, energy-saving and environmentally friendly, no fumes, no need to use glycerin for heat conduction, no need to use cooling water source, saving energy and cost effect is remarkable.
  • model :

    AC19
  • Brand:

    AVENO
  • origin:

    China
  • Lead Time:

    3-7days
  • port:

    Xiamen port
  • Payment:

    T/T, L/C
  • certificate:

    CE ISO9001 ISO17025
  • Product Detail

AC19-Infrared Laboratory Dyeing Machine


Application Of Infrared Laboratory Dyeing Machine

Infrared Laboratory Dyeing Machine uses thermal infrared heating to achieve dyeing. The performance is stable and reliable, energy-saving and environmentally friendly, no fumes, no need to use glycerin for heat conduction, no need to use cooling water source, saving energy and cost effect is remarkable.

  • Dyeing and color matching experiments;
  • Segmentation, level dyeing, and penetration testing;
  • Segmented temperature sampling test;
  • The dye absorption rate test based on difference in pH, temperature and bath ratio;
  • Concentration and other tests.


Features Of Infrared Laboratory Dyeing Machine

  • Infrared heating tube, low power, no need for glycerin heat conduction, tap water cooling, no soot pollution, low loss, can save glycerin, water and electricity costs more than 50%;

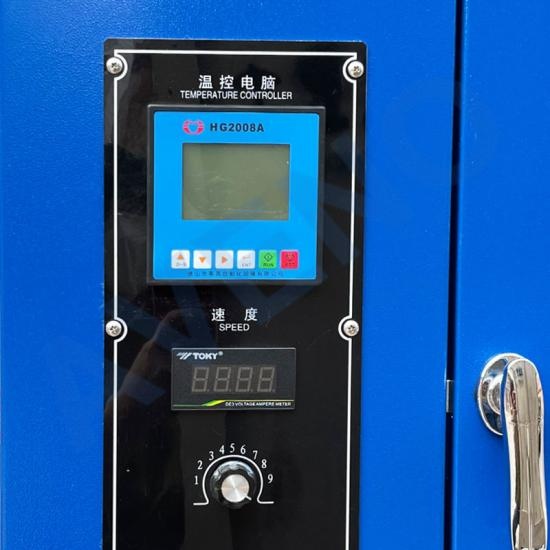

  • LCD display programmable computer temperature control, process parameters can be stored, temperature change rate, holding time can be set;
  • Brand inverter control, automatic positive and negative reversing device and can adjust the operating speed of the sample bin, 360 degree uniform speed tumbling motion to make the dyeing liquid in the cup flip back and forth, the coloring rate is more uniform;
  • With complete over-temperature, overload and other protection functions. High-power blown fan, infrared lamp cooling quickly, which avoids the lamp burned due to over-temperature and extend service life;
  • With comprehensive design of thermal insulation layer, and the heating room is surrounded by thick insulation layer, which has small heat loss and is more energy-saving and environmentally friendly;
  • Increasing the heat pipe, when heating, the heat absorption area is increased, so the temperature is more uniform; the heat dissipation area is increased when the temperature is lowered, which greatly improves heat dissipation efficiency.


Key Specification Of Infrared Laboratory Dyeing Machine

Model

AC19-12

AC19-24

Testing cup quantity

12cups

24cups

Testing cup volume

300ml, 420ml, 500ml optional

Working temperature

Room temperature ~ 135 ° C

Temperature accuracy

±0.2

Liquor ratio

1:5~1:30

Heating method

Thermal infrared heating

Heating rate

0 ~ 3.5 ° C / min

Cooling method

Automatic / Forced air cooling

Cooling rate

0.2 ~ 5.0 ° C / min

Working speed

0 ~ 60r / min

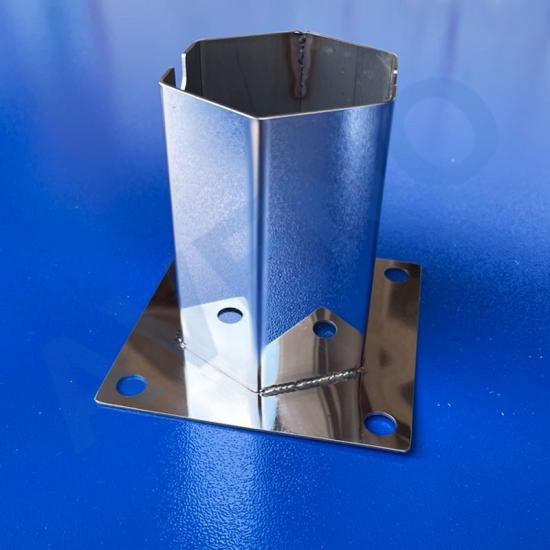

Cup material

SUS316 stainless steel

Power supply

Optional : AC220v/ 50Hz or AC380v/50Hz

Dimension

670x650x750mm

800x655x750mm

Weight

120kg

140kg


Accessories Of Infrared Laboratory Dyeing Machine



Standard Accessories

Beakers

1set

English Operate manual

1pc

Operate video

1pc

Quality certification

1pc
