Maeser Water Penetration Tester is used to test the shoe permeation resistance index of footwear including leather, artificial leather, fabric material and etc..
model :
AF37Brand:
AVENOorigin:
ChinaLead Time:
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:

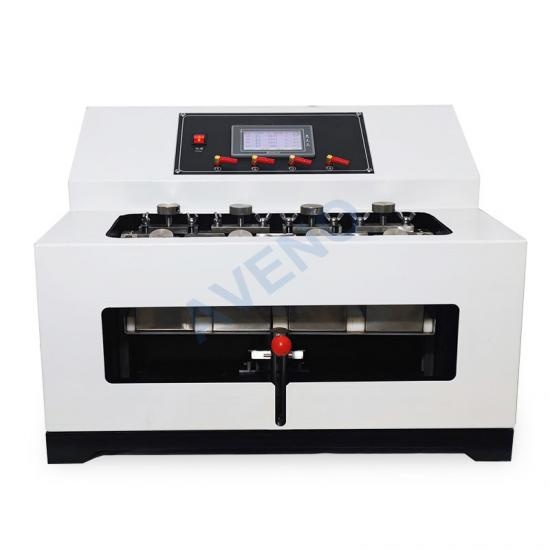

ASTM-D2099, SATRA TM34, ISO 5403-2AF37- Maeser Water Penetration Tester
Application Of Maeser Water Penetration Tester
Maeser Water Penetration Tester is used to test the shoe permeation resistance index of footwear including leather, artificial leather, fabric material and etc..
Standards Of Maeser Water Penetration Tester
ASTM-D2099, SATRA TM34, ISO 5403-2
Key Specification Of Maeser Water Penetration Tester
Model
AF37
Maeser Water Penetration Tester
Test
position
4
Standards
SATRA
TM34 type1
SATRA
TM34 type2
ISO
5403-2
ASTM
D2099
Bendig
angle
type1
: 30 ± 1 °;
type2
: 32 ± 1 °, option
No request
Clamps
tip radius
7.5±0.5mm
7.5±0.5mm
4mm
Moving
clamp flexing displacement
No
request
No
request
25.4±1.3mm
Sample
size
114*114mm
114*114mm
101.6*101.6mm
Test
speed
90±5
r/min
Clamps
V-shape
Control
method
Touch
screen control
Power
supply
AC220V,
50/60HZ
Dimension
49x45x42
cm
Weight
60
kg
