ACE3600 Waterproof Angle Meter AH45
Waterproof IP65 0° and 90° voice prompt High-precision 360° safety measuremen
+8615280858852
Programmable Ultra High Resistance Tester is used to test the high resistance of different kinds of material.
model :
AT19Brand:
AVENOorigin:
ChinaLead Time:
5daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE, ISO9001, ISO17025standard:
EN-71-1, ISO 8124-1, GB6675-2, ASTM F963, and etc.AT19-Programmable Ultra High Resistance Tester

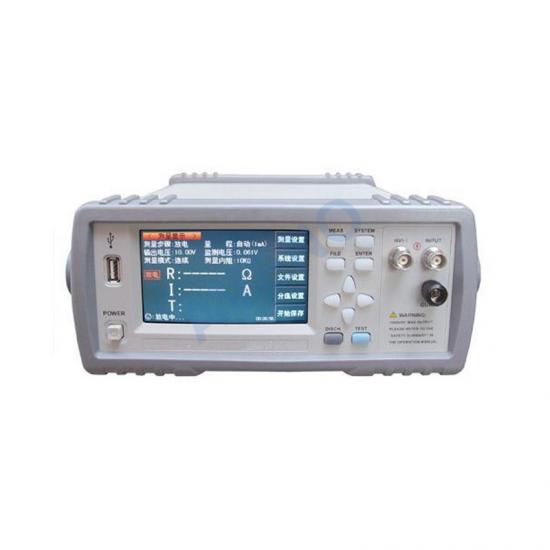

Application of Programmable Ultra High Resistance Tester
Programmable Ultra High Resistance Tester is used to test the high resistance of different kinds of material. It is an intelligent measurement instrument that is used for rapid measurements on insulating properties of electronic parts and components (especially the capacitance), dielectric material, equipments, wires, cables, etc.
Key Specification of Programmable Ultra High Resistance Tester
Model |
AT19 Programmable Ultra High Resistance Tester |
Test voltage range: |
10-1000V |
Insulation resistance test range: |
100KΩ-10TΩ Accuracy: When V≥10V and I>10nA, ±2% When V<10V and I ≤ 10nA, ±5% |
Current test range: |
1: 100uA-1mA ,Input internal resistance 10kΩ 2: 10uA-100uA,Input internal resistance 10kΩ 3: 1uA-10uA,Input internal resistance 10kΩ 4: 100nA-1uA,Input internal resistance 10kΩ 5: 10nA-100nA,Input internal resistance 1MΩ 6: 1nA-10nA,Input internal resistance 1MΩ |
Voltage test range: |
1V~1000V Accuracy When V≥10V, 1%±1V When V<10V , 10%±0.1V |
Current Limit |
10mA |
Charging time |
0~999s, programmablelogic |
Measurement delay |
0~999s, programmablelogic |
Testing Speed |
High speed: single measurement time≤30 ms Low speed: single measurement time≤60 ms |
Standard interface |
RS232C, USB HOST, USB DEVICE, HANDLER |
Power supply |
90~121V AC(60Hz)or 198~242V AC(50Hz) |
Dimension |
235(W)×105(H)×360(D) |
