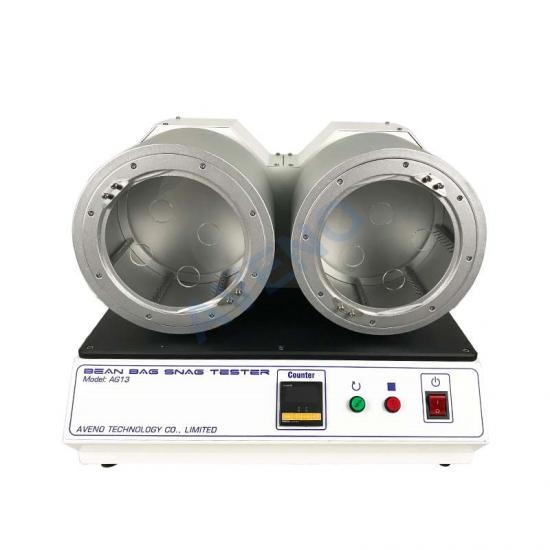

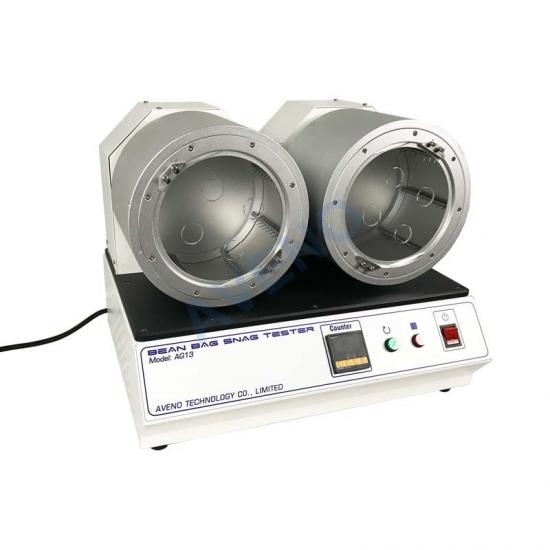

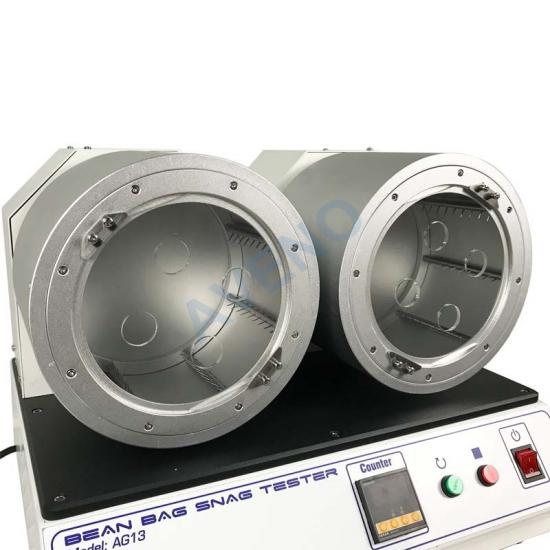

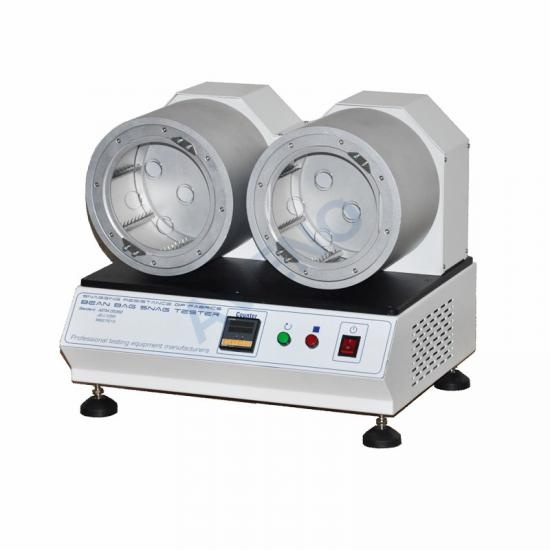

+8615280858852
Bean Bag Snag Tester is used to determine the snagging and picking resistance of knitted and woven fabric.
model :
AG13Brand:
AVENOorigin:
ChinaLead Time：
3-7daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE, ISO9001, ISO17025standard:
ASTM D5362, JIS L1058, M&S P21A.AG13-Bean Bag Snag Tester
Application Of Bean Bag Snag Tester
Bean Bag Snag Tester is used to determine the snagging and picking resistance of knitted and woven fabric. Put a bean bag inside a knitted sample, then put the sample into the test roller and rotate a certain number of cycles. After test, evaluate the snag grade of the sample.
Standards Of Bean Bag Snag Tester
ASTM D5362
JIS L1058
M&S P21A.
Key Specification Of Bean Bag Snag Tester
Model
AG13 Bean Bag Snag Tester
Rotation speed
20±3 r/min
Roller Diameter
200mm
Pinned shelf
8pcs
Pinned bar
9pcs,external diameter:8mm,depth:127mm
Nails
bulged length 10 mm ,spacing 12 mm ,the angle of vertical direction 30°±5
Counter Control
1-99999 can be set
Power supply
AC220V, 50/60HZ
Dimension
47x38x38cm
Weight
40Kg
Accessories Of Bean Bag Snag Tester
|
Standard Accessories |
450g bean bag |
1pc |
|
Sample template |
1pc |
|
|
Power line |
1pc |
ICI mace snag tester applies to rapid determine the snag resistance of fabric, (pull yarn loops from fabric). And suitable for woven and knitted fabrics made by textured yarn, non-textured yarn, and spun yarn, etc.
Snagging Assessment Box using 12V, 55W quartz halogen lamp tube as standard light source, the sample was compared with the standard photograph under the light source to obtain the rating results.
