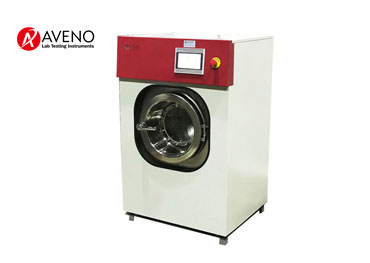

1. Automatic Wascator Shrinkage Tester leakage:

• Check that the inlet, drain joint or drain valve is properly installed.

2. Abnormal internal gallbladder rotation sound or motionless or show abnormal motor （ALM.M）

• Check the frequency converter for failure or alarm.
• Check to see if there is an abnormal jam in the rotating device.

3. The interface shows the inflow anomaly （ALM.I）

• Check if the water level sensor is damaged
• Check if the inlet solenoid valve is damaged
• Check for water access to the intake pipe
• Check control circuit S102ds2 damage

4. Interface display drainage anomaly （ALM.D）

• Check that the water level sensor is damaged.
• Check if drain solenoid valve is damaged.
• Check to see if the drain is clogged.
• Check control circuit S102ds2 damage.

5. Interface display heating anomaly （ALM.H）

• Check temperature sensor for damage.
• Check that the safety pipe is damaged.
• Check solid state relay for damage.
