Installation guide of Laboratory HT Steamer Stenter

2022-07-22 00:57:17

Laboratory HT Stenter is used in dyeing and finishing laboratory to test steam culture, baking, setting drying and so on, so as to get the correct test of discoloration of dyeing and finishing process, and can also be used to make the and obtain the correct color sample and tissue sample.


Installation guide:

1. Laboratory Steamer should be placed away from the wall distance of about 250 for cooling and operation.

2. Use power supply 380V/50HZ, three-phase five-wire system ,The power cord can be distinguished according to the mark marked when the machine leaves the factory. Among the five power lines, the two-color line is the ground line, the basket-color line is the zero line, and the remaining three are the live line. And the ground wire provided is grounded reliably. Three-phase 40A air switch should be installed at the power access end.

3. The fan window at the top of the Laboratory Stenter is a wet exhaust air outlet and a cooling air exhaust vent. Before work stopped working , you should turn off the heating switch (can not stop the fans ) , close the steam valve , open the top vent , cooling to below 75 ℃ in order to stop the fan!

4. Test, turn on the fan (do not need to turn on the heating), hand test circulating air should be sprayed out from the mesh, and the fan motor noise is normal, otherwise, the power input phase sequence should be replaced.

5. The initial boot will smoke odor is normal , the temperature is set at 250 ℃ run for a period of time can be eliminated.

6. In normal operation, after the test sample enters the Laboratory HT Steamer Stenter, the temperature on the machine drops rapidly by about 10℃. This is normal. After the sample, care should be taken to open the upper drain port before continuing to work again.



AVENO Machine Recommend:

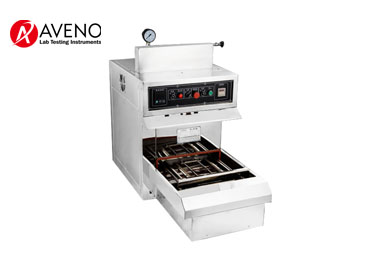

Laboratory HT Steamer Stenter AC26
