The Martindale Abrasion and Pilling Tester is used to determine the wear resistance, pilling performance, and surface changes of woven fabrics, knitted fabrics, fleece fabrics, coated fabrics, and non-woven fabrics.

The principle of Martindale tester: Under a certain pressure, a circular fabric sample rubs against a standard abrasive along the Lissajous curve, causing damage to the sample. The wear resistance of the fabric is represented by the number of times the sample is damaged.

Abrasion: ISO 12947, ISO 17704, ISO 5470-2, ASTM D 4966, IWS TM 112, BS 2543, BS 3424-24, BS 5690, M﹠S P19, Next 18, SN 198529, TWC 112, JIS L 1096, GB/T 21196.2, GB/T 13775

Pilling: ISO 12945-2, ASTM D 4970, IWS TM 196, M﹠S P17, Next TM 26, SN 198525, GB/T 4802.2

Fabric Martindale Test Machine characteristics

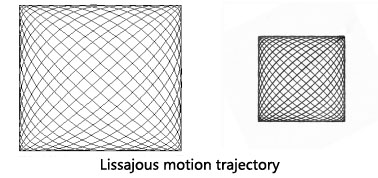

1. Standard Lissajous Curve: Strictly ensure that the size curve meets the standard requirements (factory standard curve calibration pen).

2. The pressure plate is made of special aluminum alloy to ensure that it is not easily deformed after long-term use.

3. Needle roller bearings reduce the friction force on the guide rod. Each table is formed in one step using a CNC grinder to ensure that each workstation is on the same plane and that the test results at each workstation are consistent.

4. Different tests can be conducted according to different standard requirements

5. The heavy hammer and key components are made of stainless steel, with a beautiful appearance and durability.

6. Color touch screen, easy to operate.

7. There are two counting methods, positive counting and negative counting, and each workstation can be individually locked.

8. Driven by servo motor, it runs smoothly without noise.

AVENO recommended product:

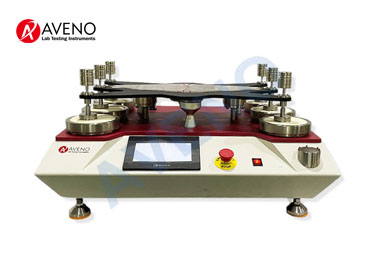

Martindale Abrasion and Pilling Tester  AG04
