Martindale Abrasion and Pilling Tester AG04

Martindale Abrasion and Pilling Tester AG04

Martindale Abrasion and Pilling Tester is used to determin the abrasion resistance, pilling performance and surface changes of woven fabrics, knitted fabrics, pile fabrics, coated fabrics and non-woven fabrics.

  • model :

    AG04
  • Brand:

    AVENO
  • origin:

    China
  • Lead Time:

    3-7 days
  • port:

    Xiamen port
  • Payment:

    T/T, L/C
  • certificate:

    CE, ISO9001, ISO17025
  • standard:

    ASTM D4966,4970, ISO12945.2, 12947.1, ISO 5470.2, DIN 53863, JIS L 1096, IWS TM 196,112, GB/T 480 2.2, 19089, GB/T 13775, FZ/T 20020, BS3424/5690, EN 388.
  • Product Detail

AG04- Martindale Abrasion and Pilling Tester


Application Of Martindale Abrasion and Pilling Tester

Martindale Abrasion and Pilling Tester is used to determin the abrasion resistance, pilling performance and surface changes of woven fabrics, knitted fabrics, pile fabrics, coated fabrics and non-woven fabrics.

Martindale abrasion tester is available in 4, 6, 8 and 9 test stations.

Feature Of Martindale Abrasion and Pilling Tester

  • The heavy hammer and key components are made of 304 stainless steel, which is beautiful in appearance and durable.
  • The pressure plate is made of special aluminum alloy to ensure long-term use without deformation.
  • Needle roller bearing connection drive to ensure no error in each workbench test.
  • Multiple sets of running programs and multiple counting methods can be preset.


Standards Of Martindale Abrasion and Pilling Tester

ASTM D4966,4970, ISO12945.2, 12947.1, ISO 5470.2, DIN 53863, JIS L1096, IWS TM 196,112, GB/T 480 2.2, 19089, GB/T 13775, FZ/T 20020, BS3424/5690, EN 388.


Key Specification Of Martindale Abrasion and Pilling Tester

Model

AG04 Martindale Abrasion and Pilling Tester

Test position

4

6

8

9

Control mode

PLC control with touch screen display

Counter range

0~999999 times

The maximum dynamic range

Cross range 60.5±0.5mm   Direction 24±0.5mm

Pressure Weight

a Holder

b Cloth sample weight

c Furniture parts sample weight

d B type clamp

e Stainless steel butterfly



198 ±2g

395 +/-2g

594 +/-2g

155 ± 1 g

260 +/-1g

Rubbing Diameter

a Rubbing Head

b Rubbing Head


A: 198g friction head Φ28.65±0.05mm, Pressurized gravity 12Kpa

B: 155g friction head Φ90±0.10mm, Pressurized gravity 9Kpa

Friction relative speed

50±2r/min, can be adjust

Sample pressing hammer weight

2385±10g

Power Supply

AC220V, 50/60HZ

Dimension

60*55*41cm

88*61*41cm

90*62*41cm

90*62*41cm

Weight

75kg

130kg

145kg

155kg


Accessories Of Martindale Abrasion and Pilling Tester

Standard Accessories

Abrasion Weight and Holder

1 Set

Pilling Weight and Holder

1 Set

Standard Abradents Fabric

2 pcs/ head

Standard Backing Foam

2 pcs/head

Standard Woven Felt Discs 140mm

2 pcs/ head

Standard Woven Felt Discs 90mm

2 pcs/ head

Sample cutting template

(Φ38/90/140mm)

each of 1pc

Pressing Weight

1pc

Bowl shape sample loader

1pc

Steel ball

3pcs

Power line

1pc

English manual

1pc

Certificate of quality

1pc

Optional Accessories

Circular Sample Cutter(38mm)

Circular Sample Cutter (90mm)

Circular Sample Cutter (140mm)

SM25 Standard Wool Abradent Fabric (1.6*5m/pack)

SM28 Standard Backing Foam (250*250mm/box)

SM26 SDC woven Felt Pads (140mm diameter/24pcs)

SM26 SDC Woven Felt Pads (90mm diameter/24pcs)

SM50 Photographs for pilling test IWS+ASTM (set of 4*5/20pcs)

EMPA Photographic Standards for Pilling Test (3*4 knitted 3stes/pcs/set)

EMPA Photographic Standards for Pilling Test (3*4 woven)


Package Of Martindale Abrasion and Pilling Tester

Martindale Abrasion Tester


Related products

ICI Pilling and Snagging TesterElectroic CrockmeterRandom Tumble Pilling Tester

     ICI Pilling and Snagging Tester                  Electroic Crockmeter                 Random Tumble Pilling Tester


https://www.avenotester.com/ICI-Pilling-and-Snagging-Tester-AG05_p15.html

https://www.avenotester.com/AATCC-Electronic-Crockmeter-Rubbing-Fastness-Tester-AC04_p48.html

https://www.avenotester.com/Random-Tumble-Pilling-Tester-AG15B_p179.html


send a message
Hello friends, please leave us a message for us to serve you better. Thank you.
Any questions we will reply you within in 24 hours. Best wishes.
related products
ICI Pilling and Snagging Tester

ICI Pilling and Snagging Tester AG05

ICI Pilling and Snagging Tester is used to determine the surface fuzzes and pilling properties of both woven and knitted materials. It complies in full with the requirements of EN ISO 12945-1 and BS 5811, etc.

Pilling Assessment Box

Pilling Assessment Box AG06

Pilling Assessment Box applicable to all pilling snagging test rating criteria, sample and standard card were obtained in the formulation of rating results light.

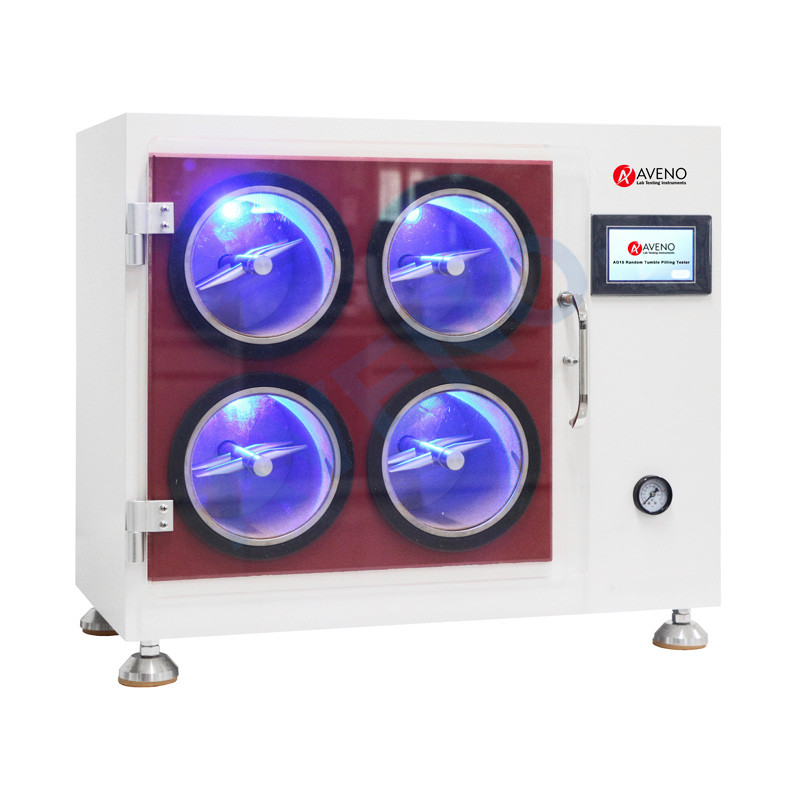

Random Tumble Pilling Tester
