The Martindale Abrasion Tester is used to evaluate the pilling grade of the sample and the abrasion of the sample.
model :
AG04-9 Test positionBrand:
AVENOorigin:
ChinaLead Time：
3-7 daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:
ASTM D4966, 4970 ISO12945.2, 12947.1, ISO 5470.2, DIN 53863, JIS L1096, IWS TM 196,112, GB/T 480 2.2, 19089, GB/T 13775, FZ/T 20020, BS 3424/5690, EN 388, EN344 ISO EN 20344, GB/T 20991, SATRA TM31, AS/NZS 2210.2.

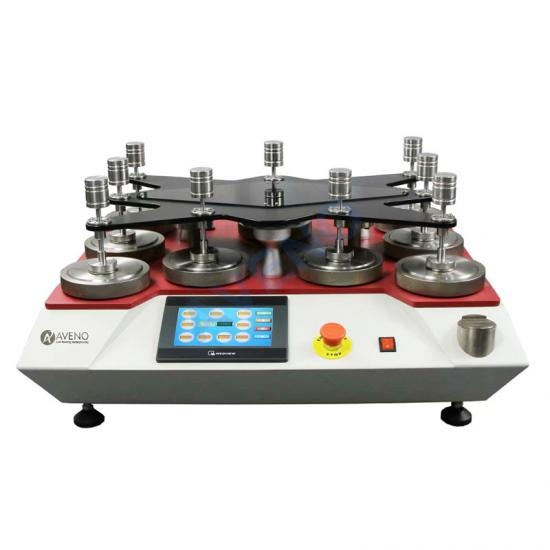

AG04- Martindale Abrasion Tester (9 Test position)
Application Of Martindale Abrasion Tester (9 Test position)
The Martindale Abrasion Tester is used to evaluate the pilling grade of the sample and the abrasion of the sample.
Features Of Martindale Abrasion Tester (9 Test position)
Standards Of Martindale Abrasion Tester (9 Test position)
ASTM D4966, 4970 ISO12945.2, 12947.1, ISO 5470.2, DIN 53863, JIS L1096, IWS TM 196,112, GB/T 480 2.2, 19089, GB/T 13775, FZ/T 20020, BS 3424/5690, EN 388, EN344, ISO EN 20344, GB/T 20991, SATRA TM31, AS/NZS 2210.2.
Key Specification Of Martindale Abrasion Tester (9 Test position)
|
Model |
AG04 Martindale Abrasion Tester |
|
Test position |
9 |
|
Control mode |
PLC control with touch screen display |
|
Counter range |
0~999999 times |
|
The maximum dynamic range |
Cross range 60.5±0.5mm Direction 24±0.5mm |
|
Pressure Weight a Holder b Cloth sample weight c Furniture parts sample weight d B type clamp e Stainless steel butterfly |
198 ±2g 594 ±2g 155 ±1 g 260±1g |
|
Rubbing Diameter a Rubbing Head b Rubbing Head |
A: 198g friction head Φ28.65±0.05mm, Pressurized gravity 12Kpa B: 155g friction head Φ90±0.10mm, Pressurized gravity 9Kpa |
|
Friction relative speed |
50±2r/min, (20～70r/min adjustable) |
|
sample pressing hammer weight |
2385±10g |
|
Power Supply |
AC220V, 50/60HZ |
|
Dimension |
90*62*41cm |
|
Weight |
155kg |
Martindale Abrasion and Pilling Tester is used to determin the abrasion resistance, pilling performance and surface changes of woven fabrics, knitted fabrics, pile fabrics, coated fabrics and non-woven fabrics.
