1. Application

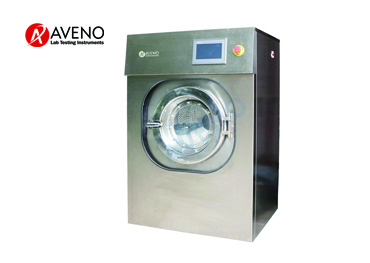

Automatic Wascator Shrinkage Tester is used for testing the shrinkage and relaxation after washing of various textile materials, such as cotton, wool, silk, linen, chemical fiber, knitwear, costume etc.
2. Key Specification
Model |
||
Washing Model |
Front door loading, horizontal tumbling-box type |
|
Rotatingmethod |
Normal rotation time interval |
12±0.1s |
Normal stopping time interval |
3±0.1s |
|
Relaxation rotation time interval |
8±0.1s |
|
Relaxation stop time interval |
7±0.1s |
|
Soft rotation time interval |
3±0.1s |
|
Soft stop time interval |
3±0.1s |
|
Tumbling-box |
diameter |
520±1mm |
depth |
315±1mm |
|
volume |
61L |
|
Tumbling-box speed |
Washing 52±1rpm, Low speed dehydration 500±20rpm, High speed dehydration 800±20rpm. |
|
Water level control |
1-20cm, digital set |
|
Temperature control |
RT-99℃, digital set |
|
Heating power |
5.4KW |
|
Dimension |
805*705*1025mm |
|
Weight |
240KG |
3. Standard
ISO 5077/6330-2012, IWSTM 31, BS EN 25077/26330, JIS L1909
4. Working environment and conditions
4.1 Room temperature control range:10℃~35℃
4.2 Humidity≤80%
4.3 No vibration, no corrosive medium, no strong electromagnetic interference in the surrounding environment.
4.4 Power supply:AC380V/50HZ, or custom made
4.5 Ground requirement: Grounding resistance less than 5Ω
