Digital tear tester is used to measure the tear strength of various woven fabrics (Elmendorf method). It can also be used to measure the tear strength of paper, plastic cloth, film, electrical tape, metal foil and other materials.

Meets the following standards:

Textiles: GB/T 3917.1 Textiles - Tear properties of fabrics - Part 1 Determination of tear strength by impact pendulum method

ASTM D 1424, DIN 53862, ISO 13937-1, ISO 4674-2, ISO 9290, etc.

AVENO R&D department continuously studies the equipment and combines the customer experience to upgrade the Digital Elmendorf Tearing Tester:

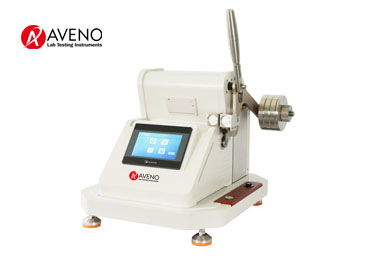

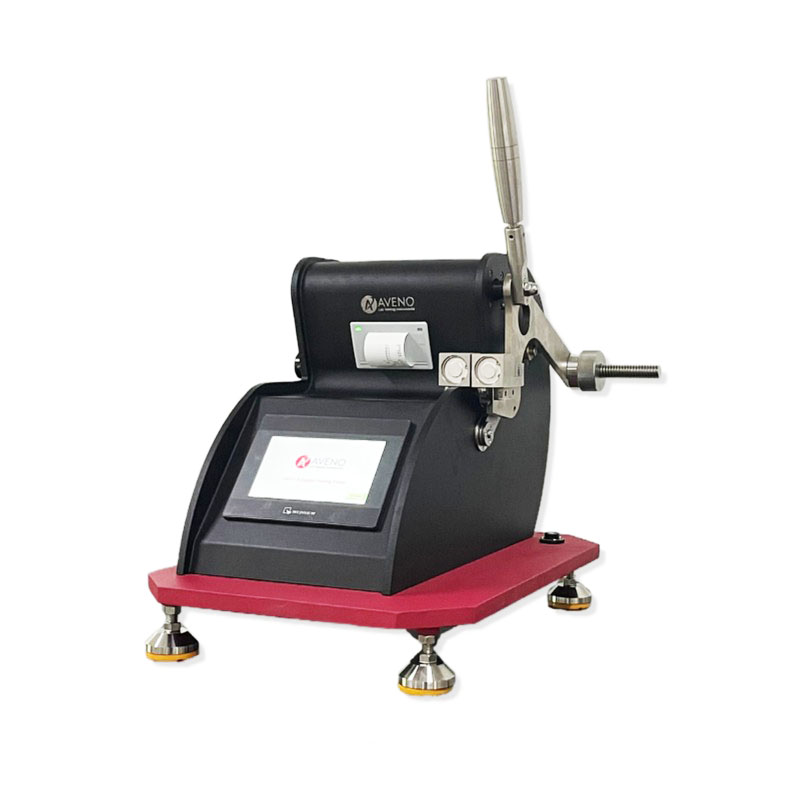

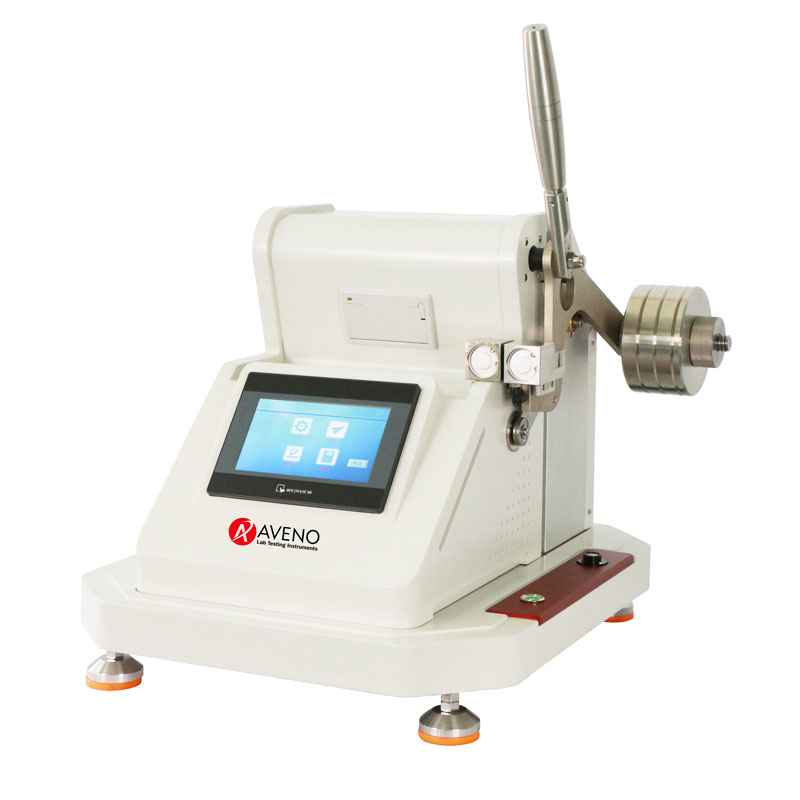

Old Model Digital Tearing Tester                                 New Model Digital Tearing Tester

Fabric Tearing Testing machine Features:

1. Color touch screen control system, Chinese and English operation interface, built-in thermal printer, print data reports.

2. Advanced calculation method (potential energy method calculation) to ensure accurate testing and good repeatability.

3. All data and statistical results can be freely checked in the host.

4. Pneumatic sample clamping and pendulum release to ensure consistent clamping force and reduce operation steps.

5. Automatic sample cutting to reduce operation steps.

6. The test unit can be selected and automatically converted between N, gf, cN, kgf, mN and lbf to meet different standard requirements.

7. USB interface, professional computer analysis software, computer data storage (obtained national software copyright registration certificate).

8. Equipped with automatic correction function of pendulum friction damping to improve measurement accuracy.

AVENO recommended product:

Digital Tearing Tester AG11-3
