1. Application

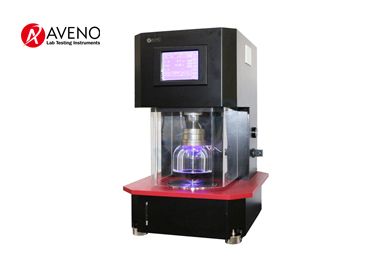

Bursting Strength Tester is used to determine the expansion force and divergence rate of fabric, woven, knitted fabrics, non-woven, paper and board.

2. Main feature

2.1. The hydraulic method is adopted to comply with the new national standard.

2.2. Touch screen control, the interface is simple and easy to understand, the operation is simple and intuitive, and the touch is sensitive.

2.3. Pneumatic clamping, even clamping, and adjustable clamp pressure, to avoid sample slippage or damage, easy to use.

2.4 The test cover is made of highly transparent plexiglass, with built-in LED lighting, which can clearly observe the test process of the sample. It is a magnet pull.

Easy to install, replace and disassemble.

2.5. Automatic induction blasting system, sensitive and reliable.

2.6. External plexiglass cover is installed to prevent pinch injury and safer use.

2.7. It adopts AC servo drive system and synchronous belt wheel transmission. The instrument has low noise, wide speed range and high precision.

2.8. Adopting high-speed AD and processor, high sampling frequency and high test accuracy.

2.9. Four test methods: constant speed burst, constant pressure, constant expansion and timing.

2.10. The instrument comes with a thermal printer that can print reports directly, and supports online work with professional computer software.

2.11. All data and statistical results can be freely checked in the host.

2.12. The test unit is selected and converted automatically to meet the requirements of different standards.

2.13. Equipped with micro thermal printer.

3. Main specifications and technical indicators

3.1 Measuring range：10.00Mpa

Minimum division value：0.003Mpa

3.2 Pressure accuracy：≤0.2%FS

3.3 Expanded height accuracy：≤0.2%FS

3.4 Test area:7.3 cm²（Φ30.5mm）、10 cm²（Φ35.7mm）

50 cm²（Φ79.8mm）、100 cm²（Φ112.8mm）

3.5 Maximum expansion:75mm，precision 0.01mm；

3.6 Pressure rate:50-500ml/min

3.7 Test methods: four test methods: constant speed burst, constant pressure, constant expansion, and timing

3.8 Pressure unit: kPa、kg/cm2、bar、lb/in2

3.9 Working power:AC220V/50Hz, power：200W

3.10 Dimension:550×450×700mm

3.11 Weight:125Kg

4. Working environment and conditions

4.1 Room temperature control range：10℃～45℃

4.2 Relative humidity≤80%

4.3 No vibration, corrosive medium and strong electromagnetic interference in the surrounding environment

4.4 Power：AC220V±10%  50Hz

4.5 Grounding requirements: grounding resistance is less than 5Ω.
