Let's take a look at the structure of the rain tester

2021-01-08 10:44:07

Rain Tester is suitable for testing the rainwater penetration protection ability of various textile materials, especially clothing textile materials.

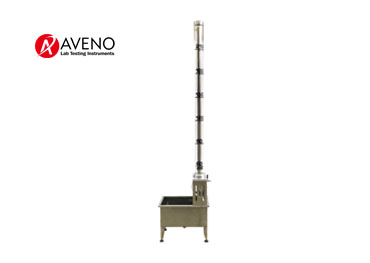

Rain tester

1. Outer cylinder

2. Inner cylinder

3. Water mark line

4. Water spray outlet

5. Water level adjustment handle

6. Sink

7. Specimen splint and support

8. Sink drain

9. Water inlet valve

10. Nozzle



Function description:

  • Outer cylinder: The cylinder is filled with water to form water pressure, and the transparent plexiglass is easy to observe
  • Inner cylinder: drain excess water in the outer cylinder to keep the water column at a certain height
  • Water mark line: mark the current water column height
  • Sink: receives the water sprayed from the test
  • Water level adjustment handle: turning can drive the water level adjustment block to rotate together to adjust the water level height
  • Sink drain: drain the accumulated water in the sink
  • Nozzle: spray water jet to test the sample
  • Specimen splint and support: clamp the specimen and place it in the sink
  • Water inlet valve: Inject water into the outer cylinder


AVENO  Machine  Recommend:

AG22  Rain Tester
