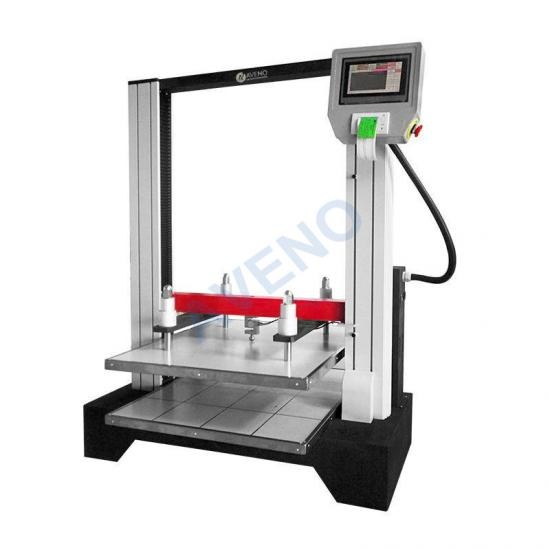

Box Compression Tester used to test the pressure resistance of cartons is suitable for pressure resistance, deformation and stacking tests of corrugated cartons, honeycomb cartons and other packages.
model :
AN02Brand:
AVENOorigin:
ChinaLead Time：
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:
TAPPI-T472, T808, T810, T811, T818, JIS-P8126, GBT2679.6, GBT2679.8, GBT2679.17AN02-Box Compression Tester
Application Of Box Compression Tester
Box Compression Tester used to test the pressure resistance of cartons is suitable for pressure resistance, deformation and stacking tests of corrugated cartons, honeycomb cartons and other packages. And take into account the plastic bucket (edible oil, mineral water), paper bucket, carton, paper can, container bucket (IBC bucket) and other containers compression test.
Standards Of Box Compression Tester
TAPPI-T472, T808, T810, T811, T818, JIS-P8126, GBT2679.6, GBT2679.8, GBT2679.17
Key Specification Of Box Compression Tester
|
Model |
AN02 Box Compression Tester |
|
Control mode |
Touch screen control |
|
Test capacity |
10KN |
|
Compression resolution |
1/100000 |
|
Compression precision |
＜±0.5% |
|
Compressed space size |
700 *900 *900mm |
|
Test speed |
0.1-500mm/min, can be set |
|
Power supply |
AC220V, 50/60HZ |
|
Dimension |
135*90*135cm |
