Car Cable Abrasion Tester suitable for testing the insulation and wear resistance test of automobile low-voltage cables, and is a testing instrument for the production of automobile wires. Comply with JIS C 3406; JASO D 611 and other standards.
model :
AH51Brand:
AVENOorigin:
ChinaLead Time：
7days， in stockport:
Xiamen portPayment:
T/T, L/Ccertificate:

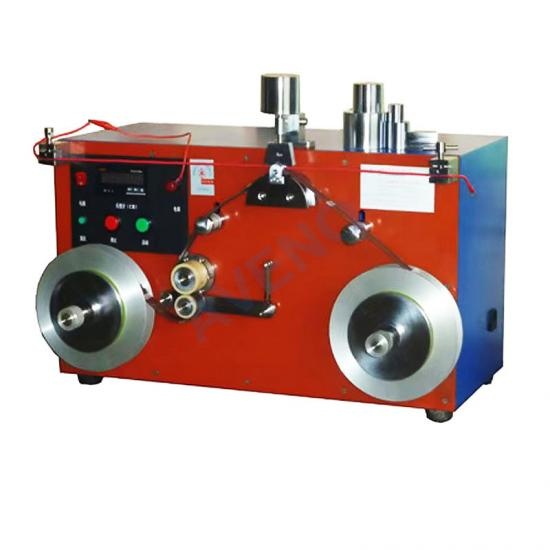

CE ISO9001 ISO17025AH51-Car Cable Abrasion Tester
Application Of Car Cable Abrasion Tester
Car Cable Abrasion Tester suitable for testing the insulation and wear resistance test of automobile low-voltage cables, and is a testing instrument for the production of automobile wires. Comply with JIS C 3406; JASO D 611 and other standards.
Key Specification Of Car Cable Abrasion Tester
|
Model |
AH51 Car Cable Abrasion Tester |
|
Test wire diameter |
0～15mm |
|
Belt counting range |
0～5000mm |
|
Belt moving speed |
1500mm/min |
|
Fillet of the support belt |
￠7mm |
|
Test voltage |
10V |
|
Load weight |
50G/100G/200G/500G/1500G/1900G, can customs made |
|
Weight stand |
1/32R, 1/16R, 3/16R |
|
Angle between the abrasive belt and the sample |
30 degrees (adjustable) |
|
Conductive strip width |
10mm |
|
Distance between conductive strips |
150mm |
|
Power supply |
AC220V, 50/60HZ |
