Digital Cap Torque Tester mainly used for measuring and testing a variety of electric screwdriver, pneumatic size screwdriver, torque screwdriver and torque wrench torque; correcting electric screwdriver, pneumatic screwdrivers, torque screwdrivers and torque wrenches, torque cap torque to conform need; you can also measure the torque of other tools, such as: a variety of fixtures.
model :
ATB52Brand:
AVENOorigin:
ChinaLead Time:
3days, in stockport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025ATB52- Digital Cap Torque Tester

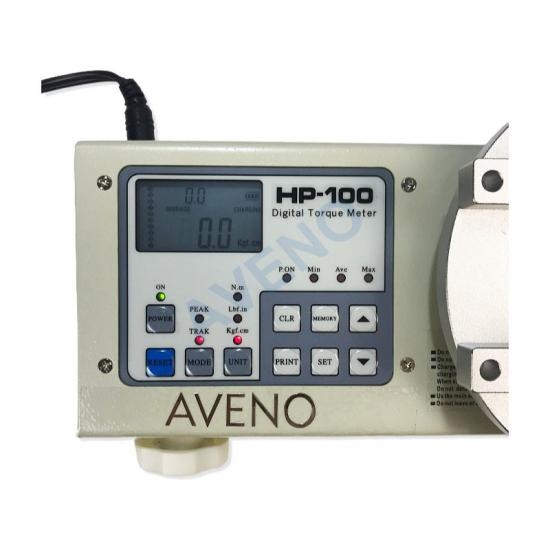

Application of Digital Cap Torque Tester
Digital Cap Torque Tester mainly used for measuring and testing a variety of electric screwdriver, pneumatic size screwdriver, torque screwdriver and torque wrench torque; correcting electric screwdriver, pneumatic screwdrivers, torque screwdrivers and torque wrenches, torque cap torque to conform need; you can also measure the torque of other tools, such as: a variety of fixtures.
Feature of Digital Cap Torque Tester
Torque orientation.
Automatic alarm settings.
Can be stored and printed 10 test data.
Automatic calculation of the average of the data stored.
Can easily switch between Kgf.Cm, Lbf.in, Nm.
With peak hold function.
Shows exactly lithium battery.
1-60 minutes adjustable-free operation of automatic shutdown of the power design.
Green high-capacity lithium battery (1800 mA.h), safety automatic charge control.
A touch of a button, durable, reliable, easy to operate.
Can be connected to the computer and displayed in real time the force value curve.
Key Specification of Digital Cap Torque Tester
Type Parameters |
HP-10 |
HP-20 |
HP-50 |
HP-100 |
HP-250 |
|
Measuring range (Unit) |
lbf.in |
0.05~9.00 |
0.5~18.00 |
0.5~45.00 |
0.5~90.00 |
5.0~180 |
kgf.cm |
0.05~10.00 |
0.5~20.00 |
0.5~55.00 |
0.5~100.00 |
5.0~250 |
|
N.m |
0.005~1.000 |
0.05~2.000 |
0.05~5.00 |
0.05~10.00 |
0.50~25 |
|
Accuracy |
±0.5% |
|||||
Sampling rate |
500HZ |
|||||
Power supply |
Lithium Battery: 7.4V |
|||||
Charging time |
>8 hours |
|||||
Full power continuous use |
45hours |
|||||
Battery life |
≥500tims |
|||||
size |
120mm*230mm*50mm |
|||||
Weight |
3KG |
|||||
Charger |
Input: AC220V Output: DC 15V 500mA |
