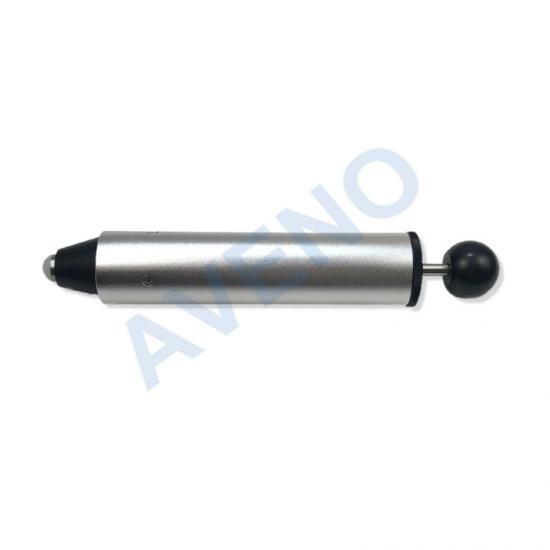

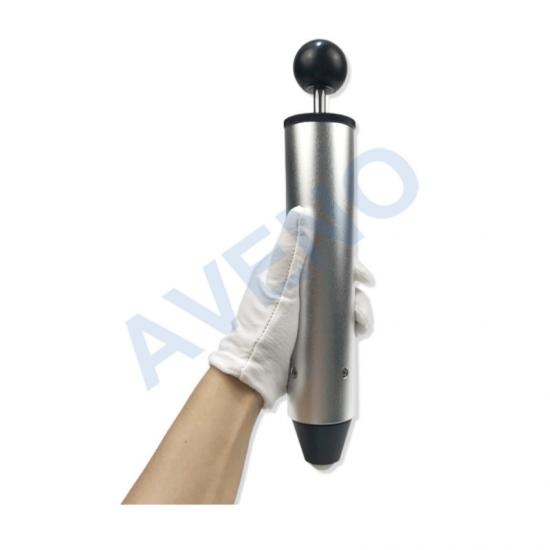

Energy Impact Test Hammer according to the corresponding clauses of IEC60068-2-75, GB/T2423.55-2006, GB4706.1, GB8898 and GB7000, IEC884 and UL1244. It is mainly used to inspect housings, operating rods, handles, etc. of household and similar electrical products. The ability of housings such as knobs and indicator lights to withstand mechanical shocks.
model :
ATB43Brand:
AVENOorigin:
ChinaLead Time：
3days, in stockport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025ATB43-Energy Impact Test Hammer
Application Of Energy Impact Test Hammer
Energy Impact Test Hammer according to the corresponding clauses of IEC60068-2-75, GB/T2423.55-2006, GB4706.1, GB8898 and GB7000, IEC884 and UL1244. It is mainly used to inspect housings, operating rods, handles, etc. of household and similar electrical products. The ability of housings such as knobs and indicator lights to withstand mechanical shocks.
Principle Of Energy Impact Test Hammer
The spring impactor mainly generates standard energy through the standard mass of each element and the movement of the hammer head spring. When the operating handle is pulled, the release claw falls on the release point of the impact element, and the hammer spring is compressed. When the compression amount is different, the spring Different energy will be released. Select the corresponding energy for the end cap of the multi-speed impactor knob. The energy has been calibrated on the energy calibration device at the factory.
Key Specification Of Energy Impact Test Hammer
|
Model |
ATB43-0.2 |
ATB43-0.35 |
ATB43-0.5 |
ATB43-0.7 |
ATB43-1.0 |
|
Impact energy |
0.2±0.02 N.m |
0.35±0.03 N.m |
0.5±0.04 N.m |
0.7±0.05 N.m |
1.0±0.05 N.m |
|
Impact component weight |
250g |
||||
|
Body weight |
1250g |
||||
|
Hammer head weight |
60g |
||||
