Fibrograph Tester is designed according to the theory of random distribution of cotton fiber length and the principle that the light intensity passing through the fiber bundle is negatively correlated with the number of fibers in the fiber bundle section.
model :
AR20Brand:
AVENOorigin:
ChinaLead Time：
3-7daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:
ISO4913-1981, GB13781-1992, GB1103-1999AR20-Fibrograph Tester
Application Of Fibrograph Tester

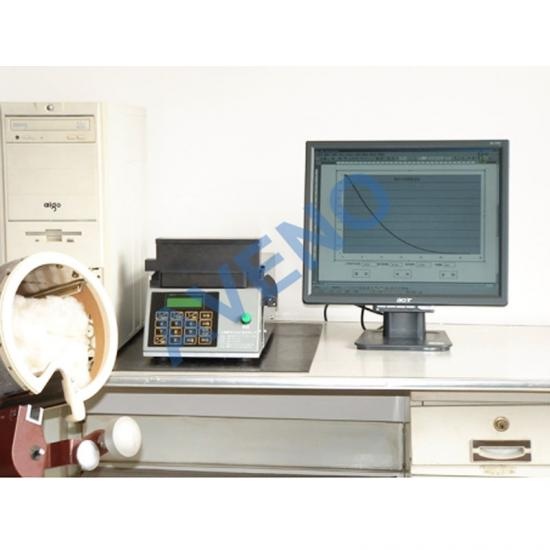

Fibrograph Tester is designed according to the theory of random distribution of cotton fiber length and the principle that the light intensity passing through the fiber bundle is negatively correlated with the number of fibers in the fiber bundle section. Randomly grab the fibers to form a tuft on the comb clip, and perform photoelectric scanning from the root to the tip, so as to measure the number of fibers at different distances from the comb through the intensity of the light passing through the tuft, the fibers can be obtained by computer processing. The length shadow curve can be obtained and the average length of the fiber, the average length of the upper half and the uniformity index can be obtained.
Standard Of Fibrograph Tester
ISO4913-1981, GB13781-1992, GB1103-1999
Key Specification Of Fibrograph Tester
|
Model |
AR20 Fibrograph Tester |
|
Control mode |
Computer control |
|
Fiber length test range |
18mm—50mm |
|
Average length error of upper half of cotton fiber |
0.5mm |
|
Uniformity Index Error |
±2% |
|
Cotton fiber sampling amount |
500—900 |
|
Short fiber rate |
percentage of the number of roots |
|
Power supply |
AC220V, 50/60HZ |
|
Dimension |
500×240×180mm |
Accessories Of Fibrograph Tester
|
Standard Accessories |
Sample cutter |
1 pc |
|
Computer |
1 Set |
|
|
Power line |
1pc |
|
|
English manual |
1pc |
|
|
Certificate of quality |
1pc |
|
|
Operate Video |
1pc |
Electronic Twist Tester is used to measure the twist, degree of inhomogeneity of yarns in certain lengths of cotton, wool, linen, and silk, and the twisting and shrinkage of strands, as a basis for assessing product quality and improving the production process.
Electronic Wrap Reel Tester Used in the textile, knitting, printing and dyeing, clothing and other industries to accurately determine the length of the yarn for the determination of the linear density or count of textile yarn.
Electric reeling machine used for accurate determination of the length of the yarn for the determination of the linear density or count of the textile yarn and for the strength test of the yarn.
Manual Twist Tester is used to determine the number of twists of various yarns such as cotton, wool, hemp, and silk within a certain length to assess the quality of the product so as to correct the problems in the production process.
Single-Yarn Strength Tester is used to measure the breaking strength and breaking elongation of single yarns, synthetic filaments and textured yarns of cotton, wool, hemp and core yarns.
Electronic Single Yarn Strength Tester is used for testing the breaking strength and elongation of a single yarn and fiber pure yarn or blended yarn of cotton, wool, hemp, silk, chemical fiber and core yarn.

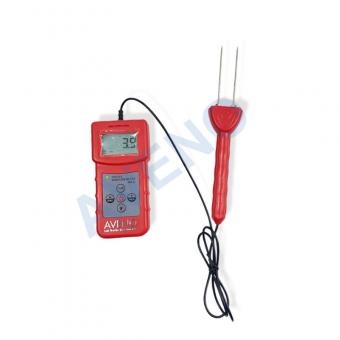

Multifunction Yarn Humidity Meter is a high-precision, high-performance intelligent moisture measurement instrument.
