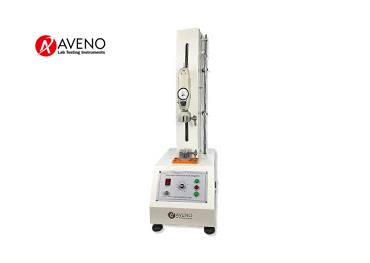

How To Use The Single Column Universal Tensile Strength Tester

How to use the Single Column Universal Tensile Strength Tester

2021-09-07

1. First turn the speed knob (clockwise) to the minimum;

2. Place the object to be tested on the workbench and use a fixture to clamp it firmly;

3. Adjust the height of the upper and lower cross bars to make the distance between the clamps appropriate.

4. Adjust the "speed knob" to make the speed meet the requirements

5. Clamp the lower end of the test piece with the lower clamp, raise the lower cross bar to a proper distance and then stop the machine, and then clamp the upper part of the test piece with the upper clamp.

6. Turn on the Fabric Tensile Tester power, start the operation, adjust the experiment stroke, and stop after adjustment;

7. When everything is ready, press the up or down push-pull test to start the test.

8. When repeating the experiment, you can repeat the above operations. When you need to stop in the middle, you can press the stop switch, and you can continue after pressing the start;

9. After the test, adjust the displacement to the minimum and the speed to the minimum, and then turn off the power.
