ICI Pilling and Snagging Tester AG05

ICI Pilling and Snagging Tester AG05

ICI Pilling and Snagging Tester is used to determine the surface pilling and pilling performance of woven and knitted materials, and can quickly simulate the pilling of the fabric in a certain time under normal wearing conditions.

  • model :

    AG05
  • Brand:

    AVENO
  • origin:

    China
  • Lead Time:

    10-20days
  • port:

    Xiamen port
  • Payment:

    T/T, L/C
  • certificate:

    CE ISO9001 ISO17025
  • standard:

    EN ISO 12945.1, IWS TM 152 BS 5811, JIS L1058 L1076, M&S P18A P18B, BS 8479, GB/T 4802.3, M&S P18A P18B.
  • Product Detail

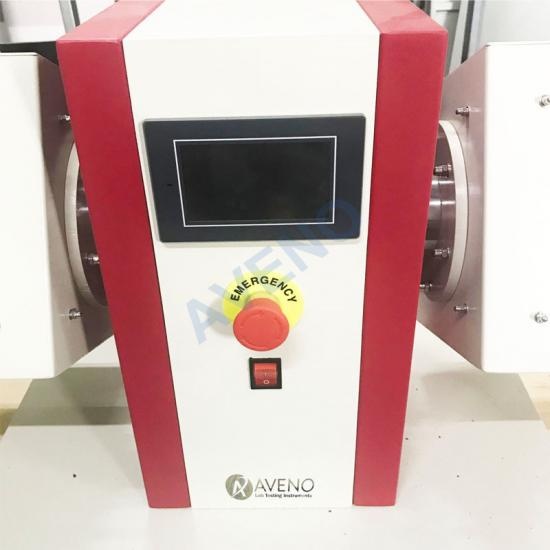

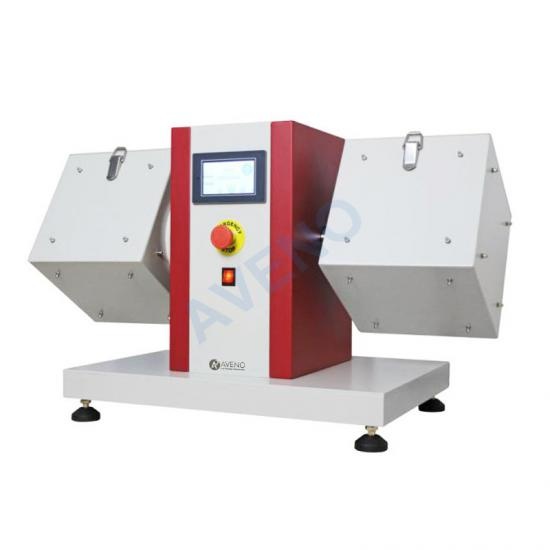

AG05- ICI Pilling and Snagging Tester



Application Of ICI Pilling and Snagging Tester

ICI Pilling and Snagging Tester is used to determine the surface pilling and pilling performance of woven and knitted materials, and can quickly simulate the pilling of the fabric in a certain time under normal wearing conditions. It fully meets the requirements of EN ISO 12945-1 and BS 5811.


Standards Of ICI Pilling and Snagging Tester

EN ISO 12945.1, IWS TM 152 BS 5811, JIS L1058 L1076, M&S P18A P18B, BS 8479,GB/T 4802.3, M&S P18A P18B.


Optional Pilling Drum Of ICI Pilling and Snagging Tester

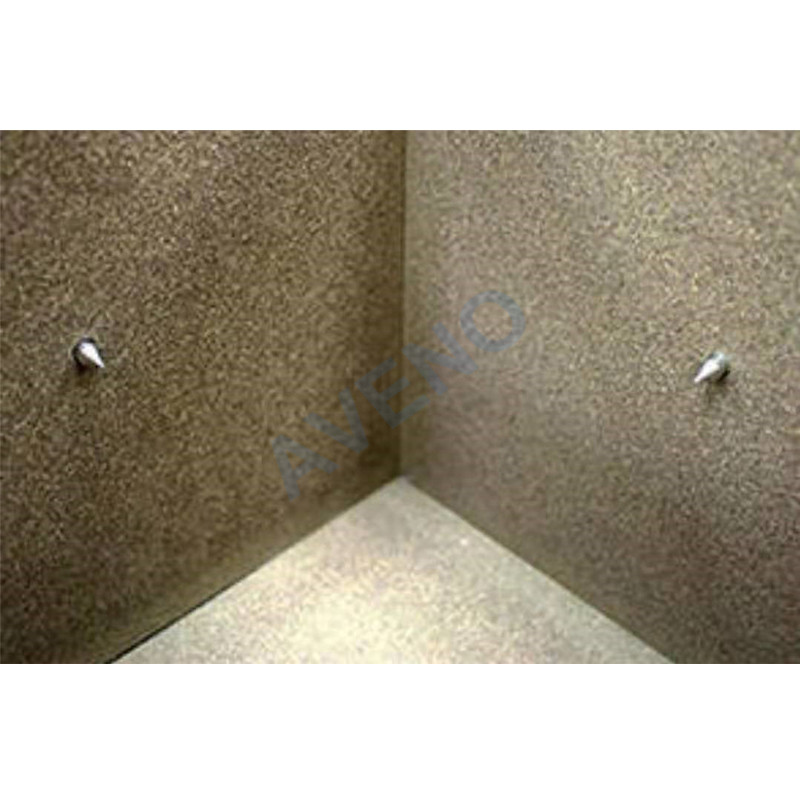

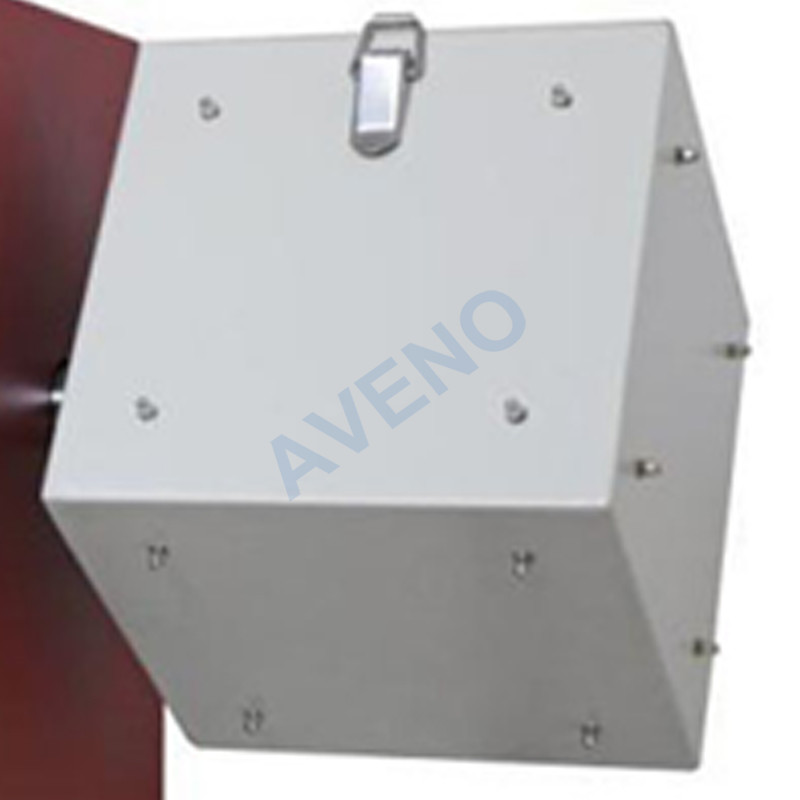

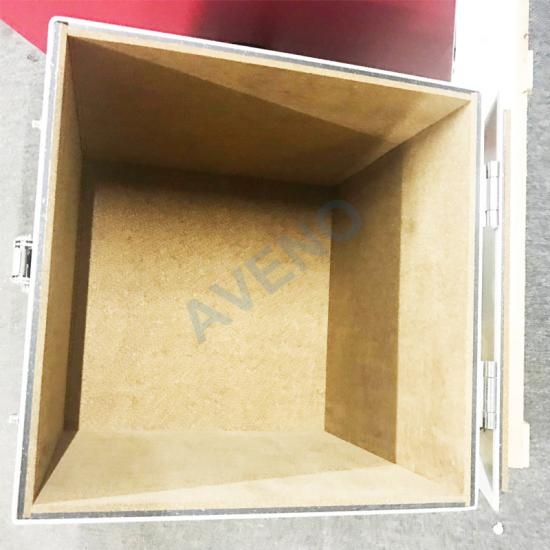

A) Square pilling test box                          B) JIS L1058 square snagging test box

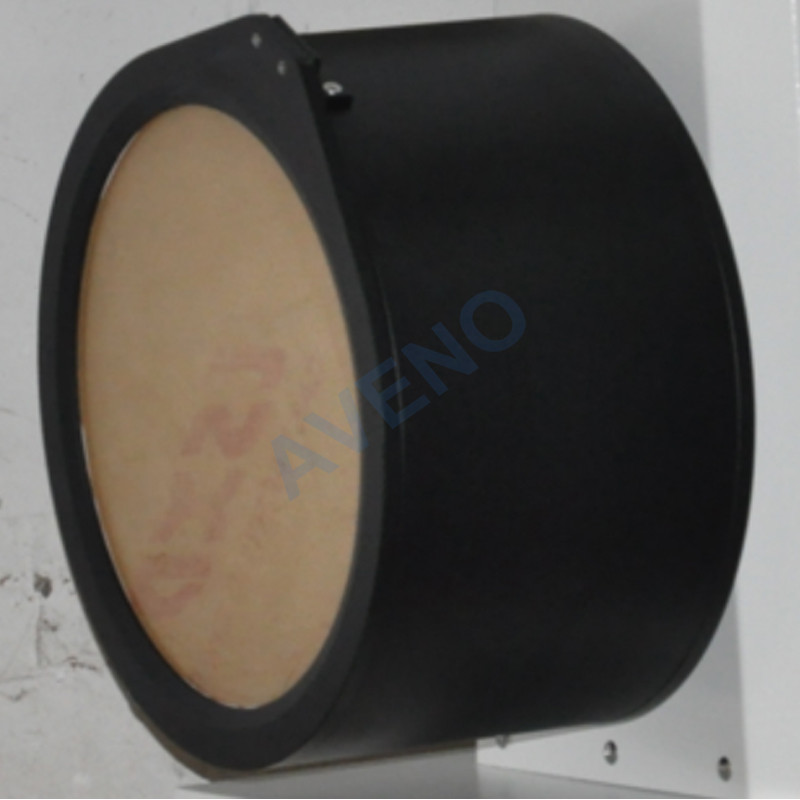

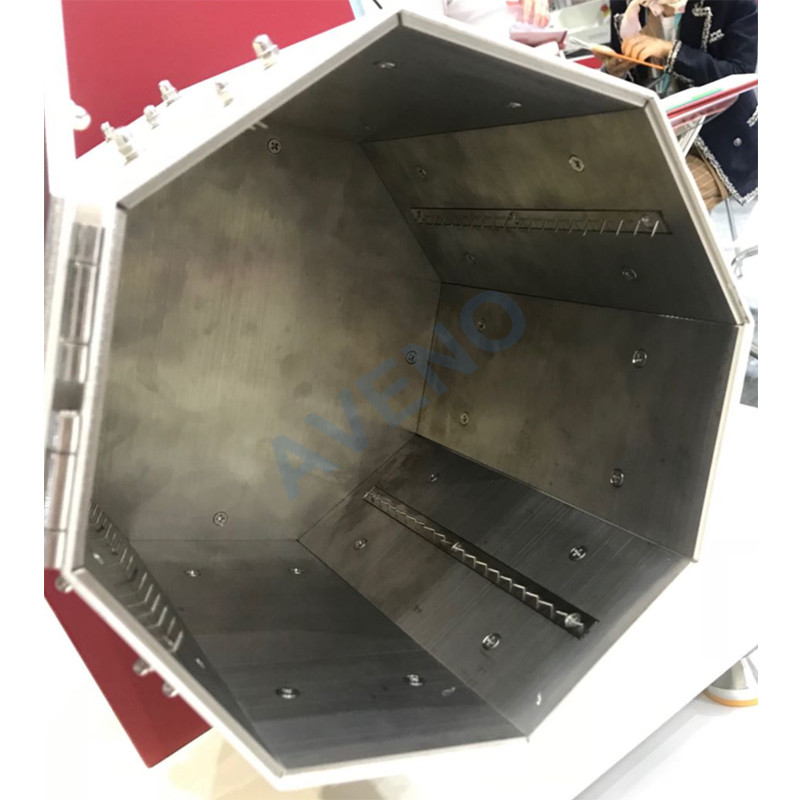

C) BS 8479 octagon snagging test box      D) M&S P18A, 18B round pilling test box


Key Specification Of ICI Pilling and Snagging Tester

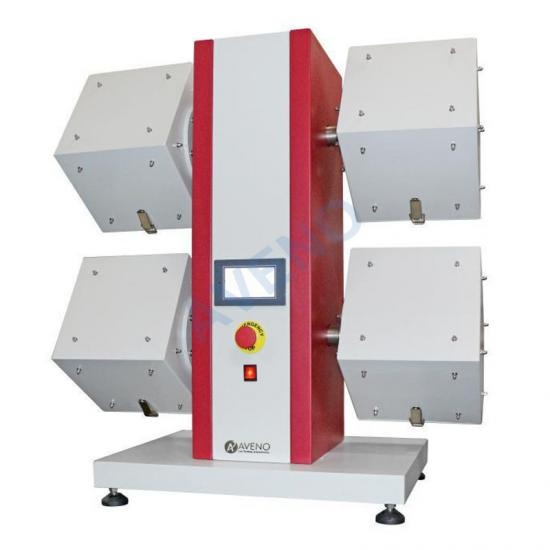

Quantity of pilling box: 2box/ 4box/ 6box

Inter size of box: 235×235×235mm

Rotational speed: 60-80 r/min, can be set

Count range: 0-99999

Timer range: 0~99h 99min

Sample tubes: Φ31.5×140 mm,  weight 52.25g

Sample size: 125mm×125mm

Power Supply: AC220V, 50/60HZ

Dimension: 82×42×55cm/ 82×42×85cm/ 90×51×120cm

Weight: 40kg/ 68kg/ 142kg
