1. Tension and pressure measurement
2. Measure the touch pressure of a touch screen or keyboard
3. Measuring the welding force of electronic components
4. Test of tension and pressure for insertion and pull-out of wire connections
5. Test for opening of lid for cans or noodle containers
model :
AT31Brand:
AVENOorigin:
ChinaLead Time：
5-7daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:
EN-71-1 section 8.4, 8.6, 8.8, 8.13, 8.15, 8.25.2, 8.26.1.1, 8.26.3, 8.34, 8.36 ASTM F963 section 8.9, 8.10, 8.11, 8.16, 8.18.8 16CFR 1500 section 51, 52, 53 ISO 8124-1 section 5.19, 5.24.6, 5.24.7, 5.24.8, 5.31 GB6675-2 section 5.19, 5.24.6, 5.24.AT31-IMADA Force Gauge

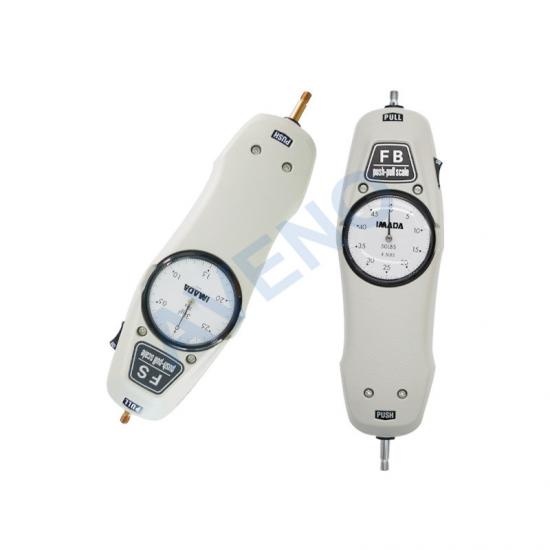

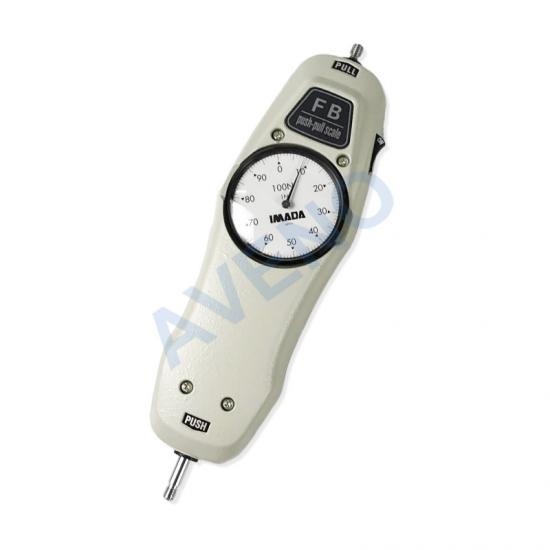

Application Of IMADA Force Gauge
1. Tension and pressure measurement
2. Measure the touch pressure of a touch screen or keyboard
3. Measuring the welding force of electronic components
4. Test of tension and pressure for insertion and pull-out of wire connections
5. Test for opening of lid for cans or noodle containers
Feature Of IMADA Force Gauge
Pointer, easy to read test results.
High precision, self weight zero adjustment and peak retention function.
Aluminum alloy shell, sturdy and durable.
Standards Of IMADA Force Gauge
EN-71-1 section 8.4, 8.6, 8.8, 8.13, 8.15, 8.25.2, 8.26.1.1, 8.26.3, 8.34, 8.36
ASTM F963 section 8.9, 8.10, 8.11, 8.16, 8.18.8
16CFR 1500 section 51, 52, 53
ISO 8124-1 section 5.19, 5.24.6, 5.24.7, 5.24.8, 5.31
GB6675-2 section 5.19, 5.24.6, 5.24.7, 5.24.8
Key Specification Of IMADA Force Gauge
|
Model |
AT31 IMADA Force Gauge |
|
Control mode |
Pointer digital mode |
|
Accuracy |
±0.3%F.S |
|
Measurement unit |
Kgf / lb / N |
|
Display speed |
10 times/ second |
|
Power supply |
Nicd rechargeable battery with AC charger |
|
Weight |
420g |
Model Of IMADA Force Gauge
|
Model |
Capacity |
Min. value |
|
FB-10N |
10N |
0.1N |
|
FB-20N |
20N |
0.2N |
|
FB-30N |
30N |
0.25N |
|
FB-50N |
50N |
0.5N |
|
FB-100N |
100N |
1N |
|
FB-200N |
200N |
2N |
|
FB-300N |
300N |
2.5N |
|
FB-500N |
500N |
5N |

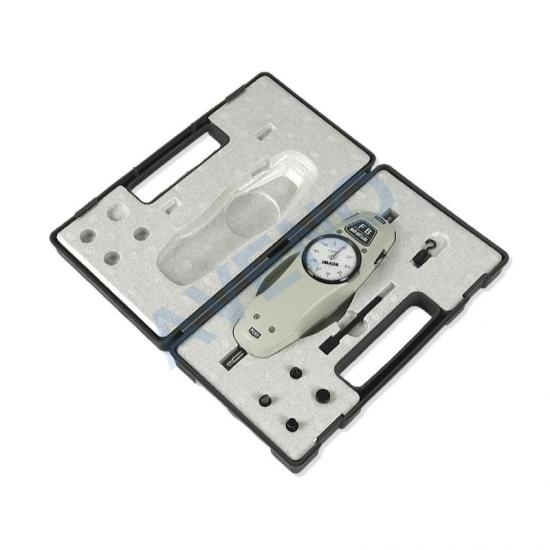

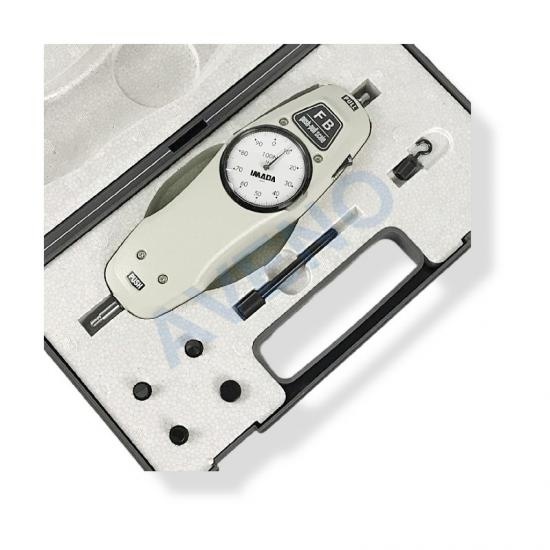

Accessories Of IMADA Force Gauge
|
Standard Accessories |
Protect box |
1pc |
