Application of Fineness Tester For Fiber

Fiber Content Analyzer is mainly used for measuring various fiber diameters, cross-section analysis, and content of textile ingredients.

Features of Fiber Fineness Tester

1. Obtain the longitudinal microscopic image of the fiber through the digital camera. With the intelligent assistance of the software, the operator can quickly and conveniently realize the functions of fiber longitudinal diameter test, fiber type identification, and statistical report generation.
2. Provides an accurate scale calibration function, which fully guarantees the accuracy of the fineness test data.
3. Provides professional automatic image analysis and fiber diameter prompt functions, making fiber diameter testing extremely easy.
4. Provide industry standard conversion function for non-circular cross-section fibers during longitudinal testing.
5. The fiber fineness test results and type classification data can automatically generate professional data reports or export to EXCEL tables.
6. Suitable for fiber diameter measurement of animal fiber, chemical fiber, cotton and linen, etc., with fast measurement speed, simple operation, and reduced human error.
7. The fineness measurement range is 2~200μm.
8. The fiber diameter measurement meets the requirements of the national standard GB/T 10685-1989 Wool Fiber Diameter Test Method-Projection Microscope Method.
9. The content measurement complies with the national standard GB/T 16988-1997 for the determination of the content of the mixture of special animal fiber and wool.
10. The measurement of cotton and linen content conforms to the textile industry standard FZ/T30003-2000, the quantitative analysis method of cotton and linen blended products, and the micro-projection method.
11. In line with the commodity inspection standard SN/T0756-1999, the quantitative analysis method and the microscope projection method for import and export hemp/cotton blended products.
12. Provide a library of standard samples of special animal fiber and chemical fiber, which is convenient for experimenters to compare and improve the identification ability.

System composition and hardware configuration of Fiber Testing Equipment

(1) System software and hardware requirements:

Hardware requirements: Intel dual-core 2.0 or higher processor, 512MB or more of memory, 64MB or more of display memory, 10GB or more of hard disk space, CD-ROM drive

Software requirements: Chinese Windows XP or above operating system, pre-installed EXCEL2003.

The system recommends the use of 17" or more color monitors, running in 1024×768 (or higher) resolution and 24-bit true color display mode.

Need to adjust the computer UAC to the minimum: win+R—input MSCONFIG—tool—change UAC settings—start—adjust to the minimum.

After opening the Excel option, adjust the macro security to the lowest level to prevent the system from preventing the software from performing fiber calculations and statistics.

(2) Main configuration

1) System biological microscope (including CCD) 1 set

2) 1 set of system software

3) 1 set of high-performance computer

4) 1 set of dongle

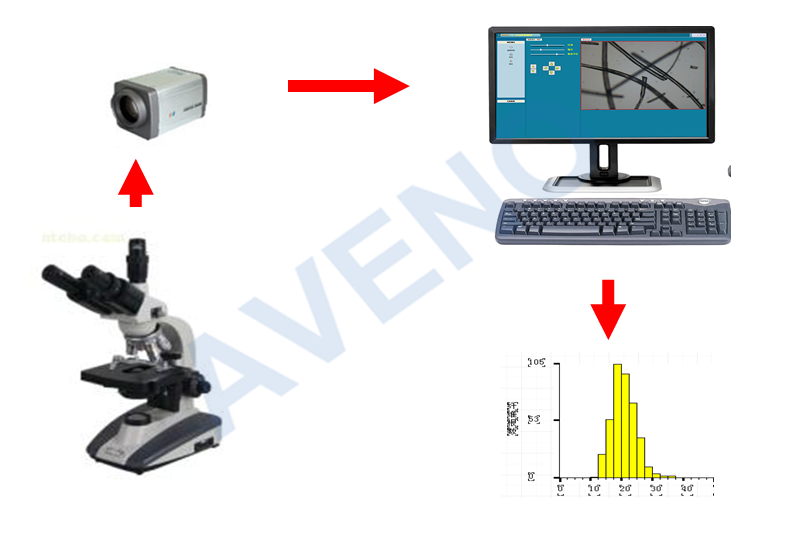

(3) Schematic diagram of working principle
