Scrub Abrasion Tester AH04-2

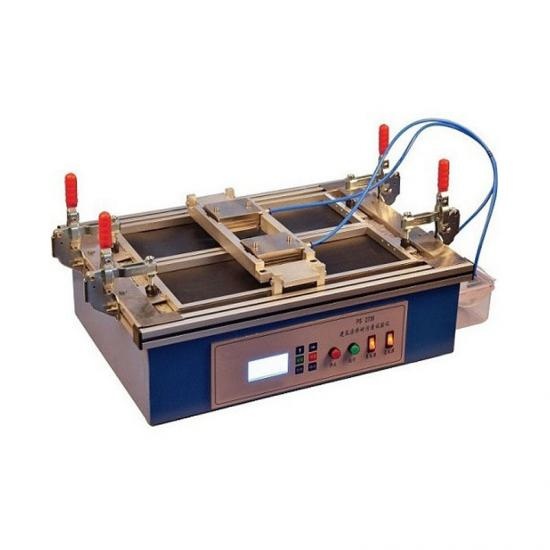

Scrub Abrasion Tester AH04-2

Scrub Abrasion Tester is an instrument for evaluating the scrub resistance of paints. It also can evaluate the performance of any film composite treated surface, such as paint, plating, flooring, overlay, wood density and so on.
  • model :

    AH04-2
  • Brand:

    AVENO
  • origin:

    China
  • Lead Time:

    10-20days
  • port:

    Xiamen port
  • Payment:

    T/T, L/C
  • certificate:

    CE ISO9001 ISO17025
  • standard:

    ASTM D2486, D4213, D4828, D3450
  • Product Detail

AH04-2-Scrub Abrasion Tester


Application Of Scrub Abrasion Tester

Scrub Abrasion Tester is an instrument for evaluating the scrub resistance of paints. It also can evaluate the performance of any film composite treated surface, such as paint, plating, flooring, overlay, wood density and so on. The device scrubs the paint applied on the standard test plate, and the number of scrubbing can be directly read by the counting device. According to the number of scrubbing, the importance and necessity of testing the scrub resistance of the paint can be evaluated.



Standards Of Scrub Abrasion Tester

ASTM D2486, D4213, D4828, D3450



Key Specification Of Scrub Abrasion Tester

Model

AH04-2 Scrub Abrasion Tester

Control model

LCD control

Slideway

2

Bruch for ASTM D2486

Nylon bristle, weight 454g

Bruch for ASTM D4213, D4828

Sponge brush, weight 508g

Bruch for ASTM D3450

Sponge brush, weight 750g

Power supply

AC220V, 50/60HZ

Dimension

55*50*35cm

Weight

45kg
