ISO 8124-1 ASTM F963 EN 71-1 Toy Safety Sharp Edge Tester AT25
Toy Safety Sharp Edge Tester is used to evaluate whether accessible edges on toys or other products are likely to cause injury.
+8615280858852
model :
AT14Brand:
AVENOorigin:
ChinaLead Time:
3-7 daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:
EN-71-1, ASTM F963, 16CFR 1500, ISO 8124-1, GB6675-2AT14-Toy Chest Lids Durability Tester

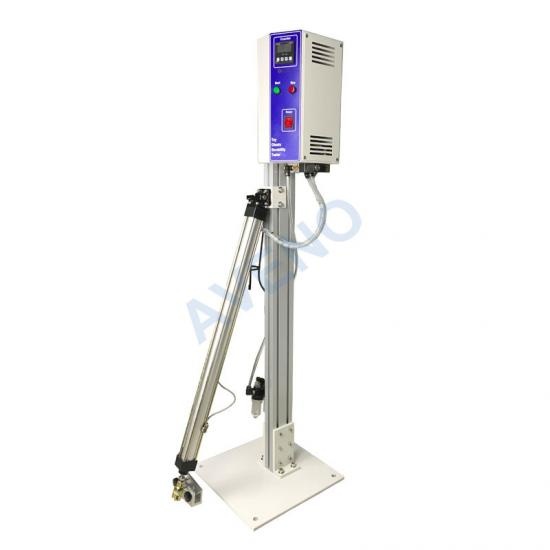

Application Of Toy Chest Lids Durability Tester
Toy Chest Lids Durability Tester is designed to verify the durability of toy box lids that are repeatedly opened and closed.
Test Principle Of Toy Chest Lids Durability Tester

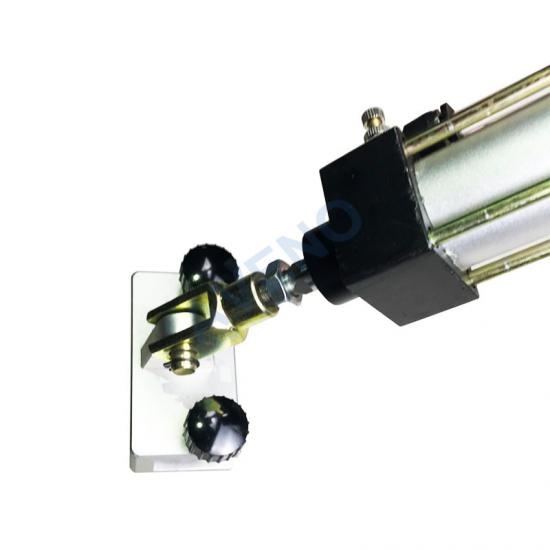

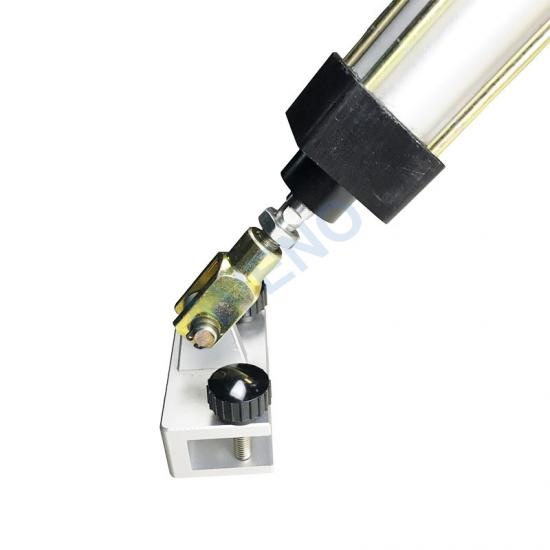

It uses a telescopic rod to move the toy box cover. After simulating the repeated opening and closing of the toy box cover for a certain number of times, check if the function of the hinged part of the toy box cover is intact.
Standards Of Toy Chest Lids Durability Tester
EN-71-1 section 8.31.1
ASTM F963 section 5.1
ISO 8124-1 section 5.13.2.2
GB6675-2 section 5.13.2.2
Key Specification Of Toy Chest Lids Durability Tester
Model |
AT14 Toy Chest Lids Durability Tester |
Test speed |
15 seconds/cycle |
Swing lever rotation angle |
0°~80° |
Tests times |
7000 |

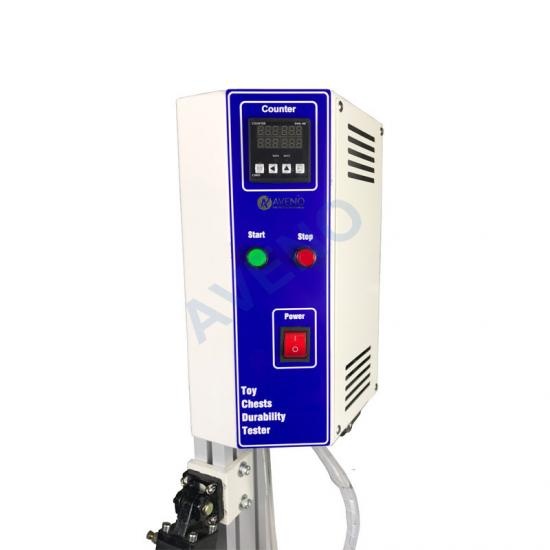

Counter LED display |
0~9999 times can be set |
Maximum height of sample |
700mm |
Air source |
6kgf/cm^2 stable air pressure |
Power Supply |
220V 50/60HZ |
Dimension |
115x35x126cm |
Weight |
30kg |
Accessories Of Toy Chest Lids Durability Tester
Standard Accessories |
Rubber tube for air connect |
1pc |
Power line |
1pc |
Related products

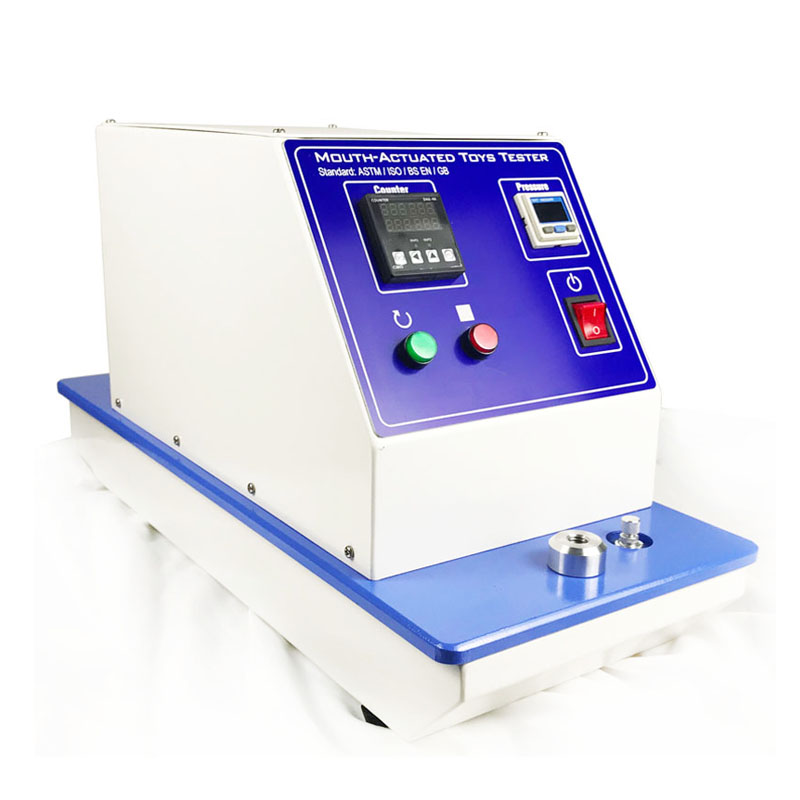

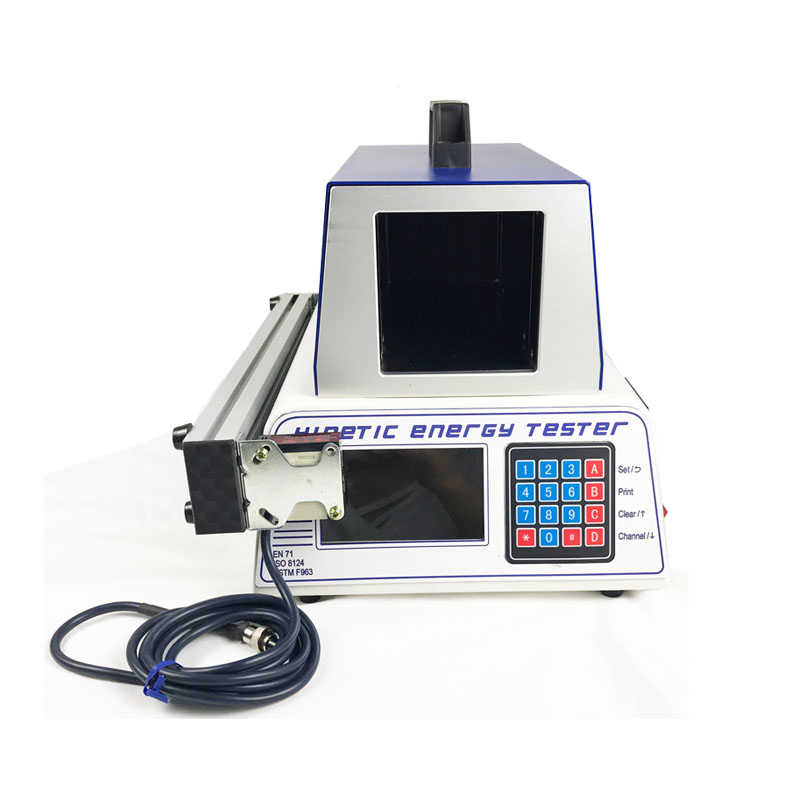

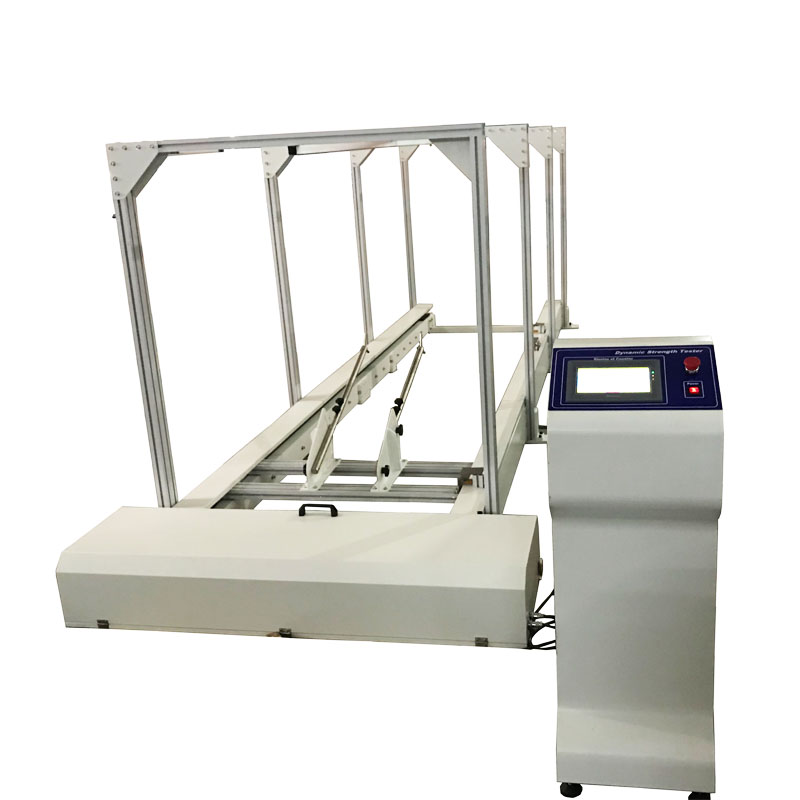

Mouth Toy Endure Tester Kinetic Energy Tester Dynamic Strength Tester (2ms)https://www.avenotester.com/Mouth-Toy-Endure-Tester-Mouth-actuated-Tester-AT26_p126.html
