ISO 8124-1 ASTM F963 EN 71-1 Toy Safety Sharp Edge Tester AT25
Toy Safety Sharp Edge Tester is used to evaluate whether accessible edges on toys or other products are likely to cause injury.
+8615280858852

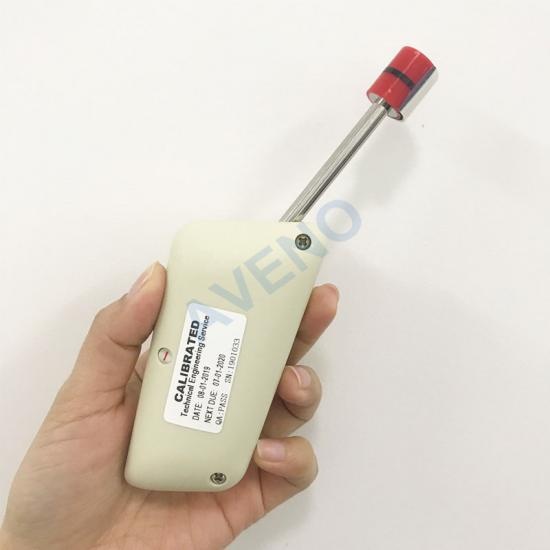

UL Sharp Edge Tester is used to test whether there is a sharp edge that endangers the safety of the user in a reachable location.
model :
AT25BBrand:
AVENOorigin:
ChinaLead Time:
3days, in stockport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025AT25B-UL Sharp Edge Tester (SET-50)
Application Of UL Sharp Edge Tester (SET-50)
UL Sharp Edge Tester is used to test whether there is a sharp edge that endangers the safety of the user in a reachable location.
Test Method Of UL Sharp Edge Tester (SET-50)
1. Install the test tape cap on the tester
2. Put the stress test head on the edge which to test, immediately use the 0.68kg force to move 2 inches along the edge, then back to start point, moving 4 inches in total.
3. After test, check the tape cap, if the outermost two layers (mimic skin) have been cut off, then the edge is sharp edge.
Key Specification Of UL Sharp Edge Tester (SET-50)
Model |
AT25B-UL Sharp Edge Tester (SET-50) |
Standard |
UL1439D |
Dimension |
184×35×52 mm |
Weight |
132 g |

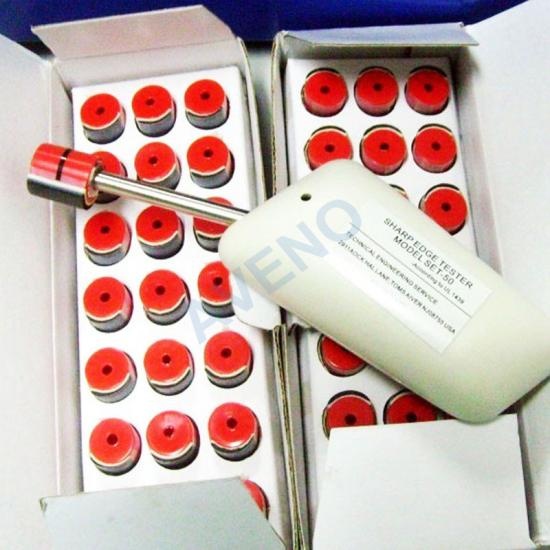

Accessories Of UL Sharp Edge Tester (SET-50)
Standard Accessories |
UL Sharp Edge Tester |
1set |

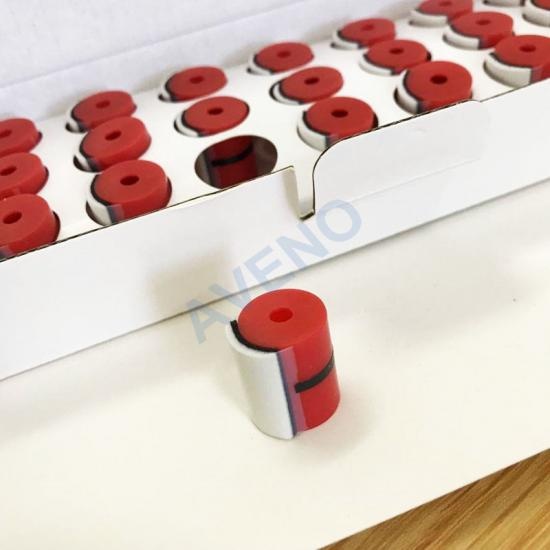

TC-3 Test tape cap (21pcs/box) |
1box |
