model :
AG36Brand:
AVENOorigin:
ChinaLead Time：
3-7 daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:

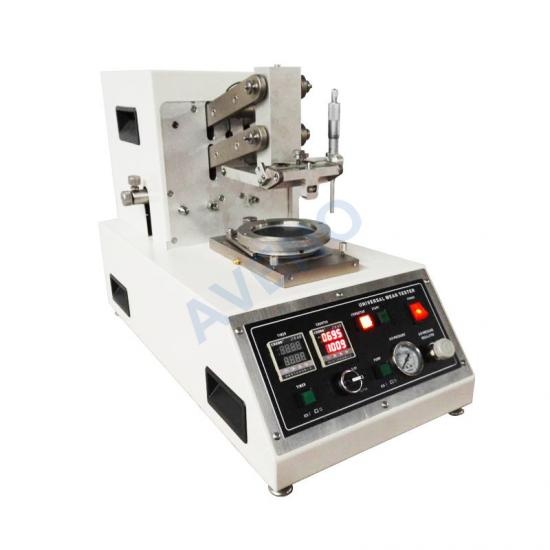

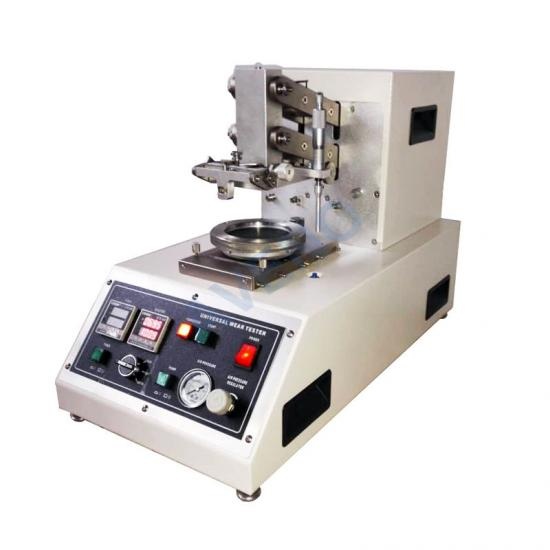

ASTM D3885, D3886, D3514, AATCC 119/120, JIS L1096, CNS 12915.AG36-Universal Wear Tester (Stoll Quartermaster)
Application Of Universal Wear Tester (Stoll Quartermaster)
Universal Wear Tester is used to detect the wear performance and abrasion resistance of various types of fabrics, including garments, shoes and industrial textiles, fabrics, leather, rubber, plastics, paper... It's mainly used for testing and evaluating the wear resistance of the material in the plane state, crease state, and bending state.
Standards Of Universal Wear Tester (Stoll Quartermaster)
ASTM D3885, D3886, D3514, AATCC 119/120, JIS L1096, CNS 12915.
Key Specification Of Universal Wear Tester (Stoll Quartermaster)
|
Model |
AG36 Universal Wear Tester (Stoll Quartermaster) |
|
Control mode |
LCD button control |
|
Test stroke |
1in (25.4mm) |
|
Test speed |
115±10r/115±10r/min |
|
Counting |
0~999 999 times, can be set |
|
Timing |
0~9 999min |
|
Power supply |
AC220V 50/60Hz |
|
Dimension |
34x66x47cm |
|
Weight |
80Kg |
|
Power supply |
AC 220V 50/60Hz 5A |
Accessories Of Universal Wear Tester (Stoll Quartermaster)
|
Standard Accessories |
Press weight |
5pcs |
|
Tension weight |
5pcs |
|
|
Micrometer calipers |
1pc |
|
|
Flex abrasion test griper |
1set |
|
|
Flex abrasion blade |
1set |
|
|
Surface abrasion test griper |
1set |
|
|
Option Accessories |
Edge and fold abrasion test griper |
|
|
Flat abrasion and piling test griper |
|
Related products
https://www.avenotester.com/Taber-Abrasion-Tester-AF46_p204.html
https://www.avenotester.com/DIN-Rubber-Abrasion-Tester-AF02_p58.html
https://www.avenotester.com/iultcs-veslic-leather-abrasion-tester-af22_p79.html
Martindale Abrasion and Pilling Tester is used to determin the abrasion resistance, pilling performance and surface changes of woven fabrics, knitted fabrics, pile fabrics, coated fabrics and non-woven fabrics.
ICI Pilling and Snagging Tester is used to determine the surface fuzzes and pilling properties of both woven and knitted materials. It complies in full with the requirements of EN ISO 12945-1 and BS 5811, etc.
Pilling Assessment Box applicable to all pilling snagging test rating criteria, sample and standard card were obtained in the formulation of rating results light.
Random Tumble Pilling Tester is used to determine the pilling and fuzzing characteristics of textile fabrics under the condition of free rolling friction in the cylinder.
Random Tumble Pilling Tester is used to determine the pilling and fuzzing characteristics of textile fabrics under the condition of free rolling friction in the cylinder.
Schopper Abrasion Tester is used to do wear resistance test of textile products. The motor drives the test material tensioned on a obtuse cone to rotate, makes it contact with the friction sandpaper required by the standard, and bears the load specified by the standard to carry out the rotary friction test. This friction is continuously carried out along the bus of the cone, resulting in a friction effect in the tangent direction.
PAV Pilling Assessment Viewer is special for pilling test result rating, suitable for all pilling hook wire test rating standards, the sample and standard chart card under the development of light source to obtain the rating results.
Handle Bending Strength Tester is used to test the handle bending strength of cooker.
Liquid Leak Test Needle is used to test leakage of liquid stuffed toys.
read more
The yarn hairiness tester is used to measure and analyze the hairiness index of yarn, and automatically test and statistically analyze the length, quantity, and distribution of hairiness. Can test different kinds of yarn including short fiber yarns made from cotton, wool, linen, silk, synthetic fibers, and their blends.
read more
ASTM D3985 Oxygen Gas Transmission Rate Tester suitable for measuring the oxygen permeability performance of high barrier materials such as plastic film, aluminum foil plastic film, waterproof material, metal foil, etc.
read more
UV Integrator used to measure the UV energy of an exposure device. The main sensor of the measuring instrument is located on the back of the measuring instrument, with a measurement range of 250-410 nanometers. When measuring, it can be directly displayed on the display screen on the front of the UV energy meter and read out (in millijoules per square centimeter).
read more

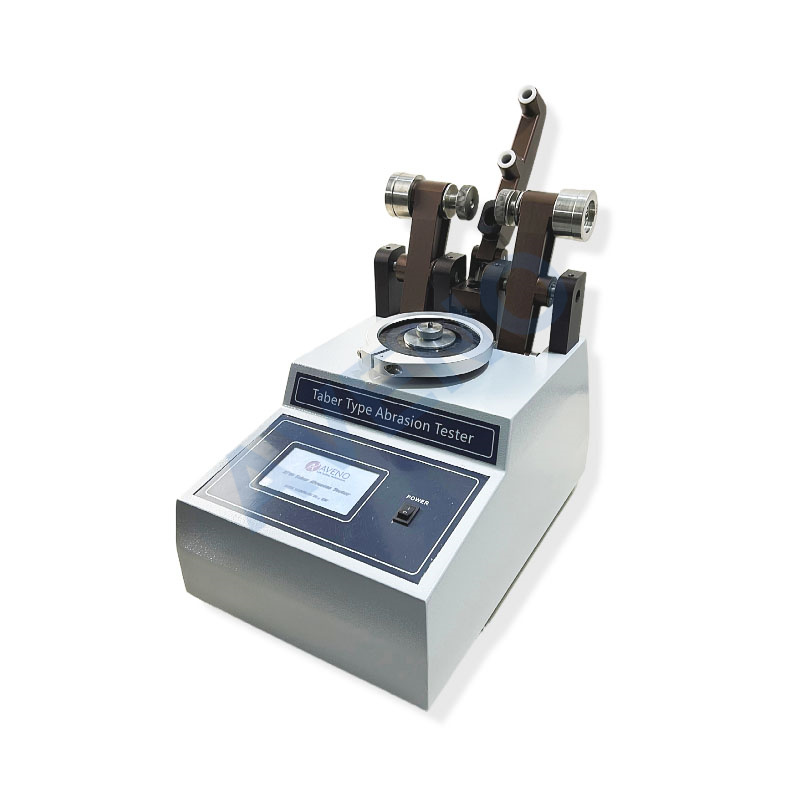

AF46B Taber Abrasion Tester is used for abrasion resistance test of cloth, paper, paint, plywood, leather, natural rubber, etc.
