ASTM D3985 Oxygen Gas Transmission Rate Tester suitable for measuring the oxygen permeability performance of high barrier materials such as plastic film, aluminum foil plastic film, waterproof material, metal foil, etc.
model :
AH58Brand:
AVENOorigin:
ChinaLead Time：
3 days， in stockport:
Xiamen portPayment:

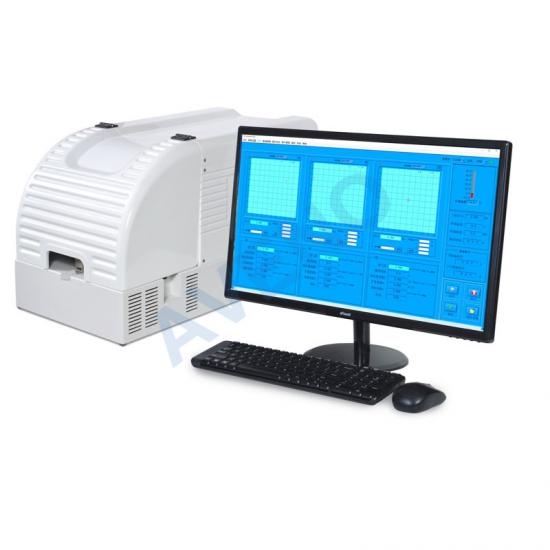

T/T, L/CAH58-ASTM D3985 Oxygen Gas Transmission Rate Tester
Application Of ASTM D3985 Oxygen Gas Transmission Rate Tester
ASTM D3985 Oxygen Gas Transmission Rate Tester suitable for measuring the oxygen permeability performance of high barrier materials such as plastic film, aluminum foil plastic film, waterproof material, metal foil, etc.
Principle Of ASTM D3985 Oxygen Gas Transmission Rate Tester
The sample is installed between the test chamber sample gas and the carrier gas chamber, and the temperature of the test chamber is controlled. Oxygen in the sample gas chamber permeates into the carrier gas chamber, which is carried by the carrier gas to the trace oxygen sensor; Accurately measure the current generated by trace oxygen sensors, calculate the oxygen permeation rate and other parameters of the sample.
Feature Of ASTM D3985 Oxygen Gas Transmission Rate Tester
Key Specification Of ASTM D3985 Oxygen Gas Transmission Rate Tester
|
Model |
AH58 ASTM D3985 Oxygen Gas Transmission Rate Tester |
|
Control mode |
Computer control |
|
Test range |
0.01～6500(cc/㎡.24h) |
|
Resolution |
0.001 |
|
Test area |
50 c㎡, can cmade other size |
|
Sample quantity |
3 |
|
Temperature range |
15℃～55℃, ±0.1℃ (temperature controller optional) |
|
Gas |
99.999% high-purity nitrogen (gas source to be provided by the user) |
|
Gas flow rate |
0-100 mL/min |
|
Power supply |
AC 220V 50Hz |
|
Dimension |
740mm (L)×415 mm (W)×430mm (H) |
|
Weight |
50kg |
Accessories Of ASTM D3985 Oxygen Gas Transmission Rate Tester
|
Standard Accessories |
Sample cutter |
1set |
|
Nitrogen/oxygen cylinder precision pressure reducing valve |
1set |
|
|
vacuum grease |
1set |
|
|
Option Accessories |
Container testing accessories |
|
|
Container temperature control device |
|
|
|
Constant temperature control device |
|
