About Spray Rating Tester

2022-05-31 18:42:48

The Fabric Water Spray Tester is a product specially designed to determine the moisture resistance of textile or clothing surfaces by spray testing. This tester is suitable for fabrics that have not been waterproofed or treated for water repellency. By comparing the appearance of the sample to descriptive standards and photographs, the operator can use the spray test to provide the spray rating of the sample being tested.

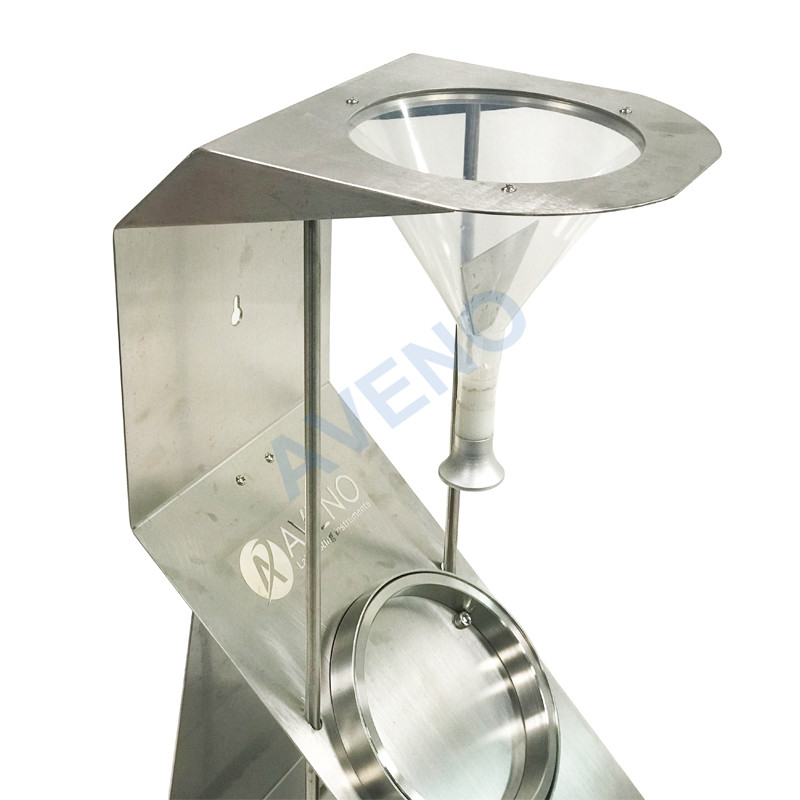

Water Spray Tester


Standards

AATCC 22, ISO 4920, JIS L1092, GB/T 4745.


Features

• Replaceable nozzles.

• Stainless steel body.

• Configuration with drip tray.

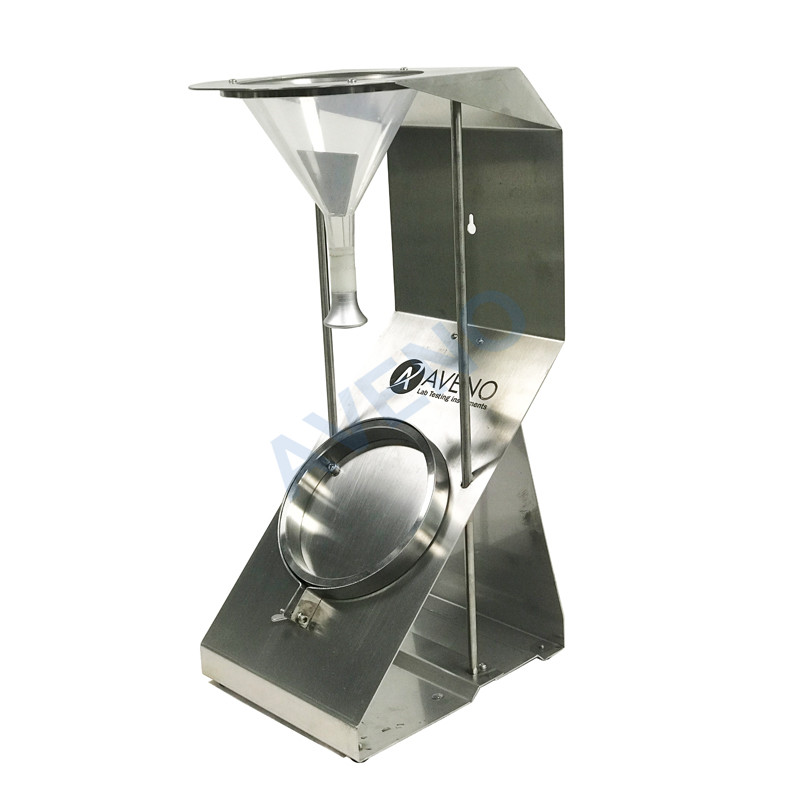

Spray Rating Tester

Key Specification

  1. Glass funnel 150×150 (V=500mL)
  2. Laying angle of specimen 45degree
  3. The distance between nozzle and center of specimen 150mm
  4. Sample rack diameter 150mm
  5. Matching measuring cup 250ml

AVENO Machine Recommend:

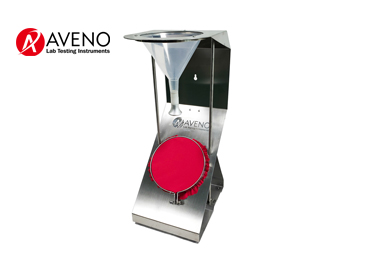

Spray Rating Tester AG20

Spray Rating Tester
